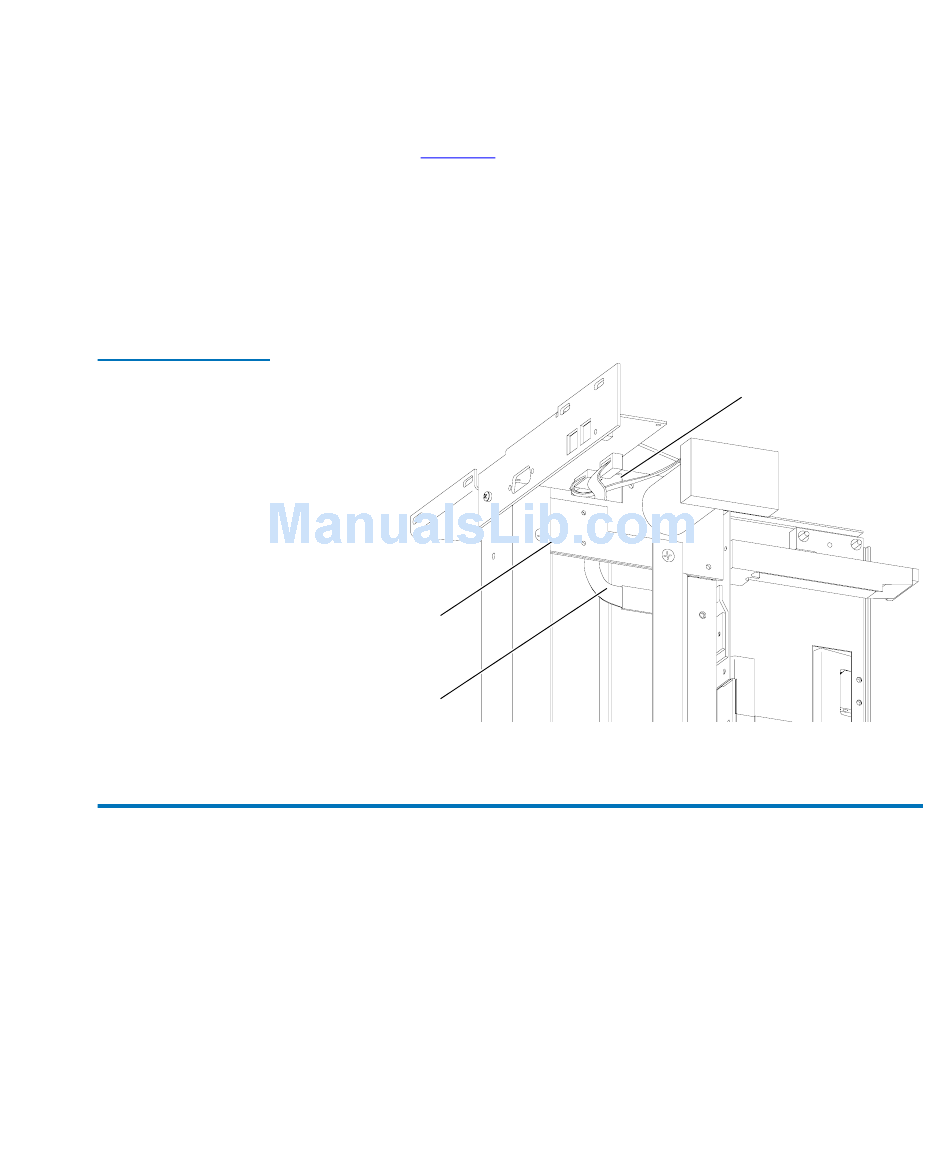

Figure 12 Connecting
the Ribbon Cable
Attaching the Shuttle Assembly to the Mounting Tray
Assemblies

Attaching the Shuttle Assembly to the Mounting Tray Assemblies

4 Connect the ribbon cable from the vertical shuttle assembly to the
socket on the control board at the rear of the motor assembly as
shown in
figure
12:
Route the ribbon cable behind the motor plate.
a
Insert the ribbon cable connector through the rectangular hole at
b
the top of the motor plate.
Connect the ribbon cable connector to the socket on the control
c
board.
Motor plate
Ribbon cable
To attach the shuttle assembly to the top and bottom mounting tray
assemblies:
1 At the rear of the rack, lift the shuttle assembly and position it so the
carriage faces forward into the rack.
2 Rest the lower end of the shuttle assembly on top of the bottom
mounting tray assembly.
ATL StackLink™ Installation Instructions
Chapter 1 Installing the StackLink
Rectangular hole
1
17
