Installing the Bottom Mounting Tray Assembly

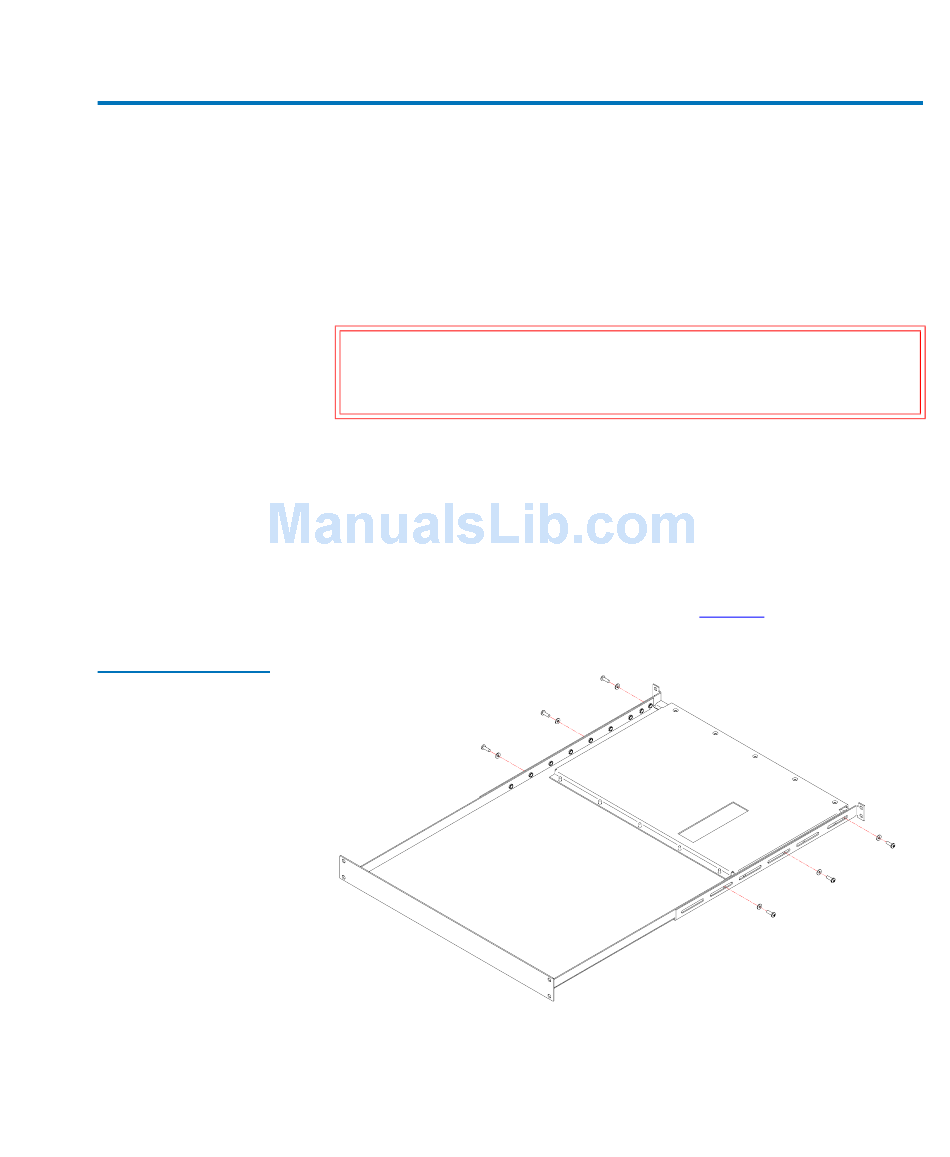

Figure 5 Adjusting the
Depth of the Bottom
Mounting Tray
Assembly
To install the bottom mounting tray assembly in the rack:
1 If three ATL M2500 library modules will be installed in the rack,
remove the 1U panel from the front of the bottom mounting tray
assembly and replace it with the .5U panel provided in the StackLink
kit:
Do not remove this panel if fewer than three
Caution:
ATL M2500 library modules will be installed in the
rack.
Remove the five nuts securing the 1U panel to the front of the
a
bottom mounting tray assembly.
Position the .5U panel (PN 215941) at the front of the bottom
b
mounting tray assembly and secure it using the five nuts you
removed in the previous step.
2 Remove the six screws and washers securing the rear support arms to
the sides of the bottom mounting tray (see
ATL StackLink™ Installation Instructions
Chapter 1 Installing the StackLink
Installing the Bottom Mounting Tray Assembly
figure
1
5).
9
