Chapter 1 Installing the StackLink

Attaching the Shuttle Assembly to the Mounting Tray Assemblies

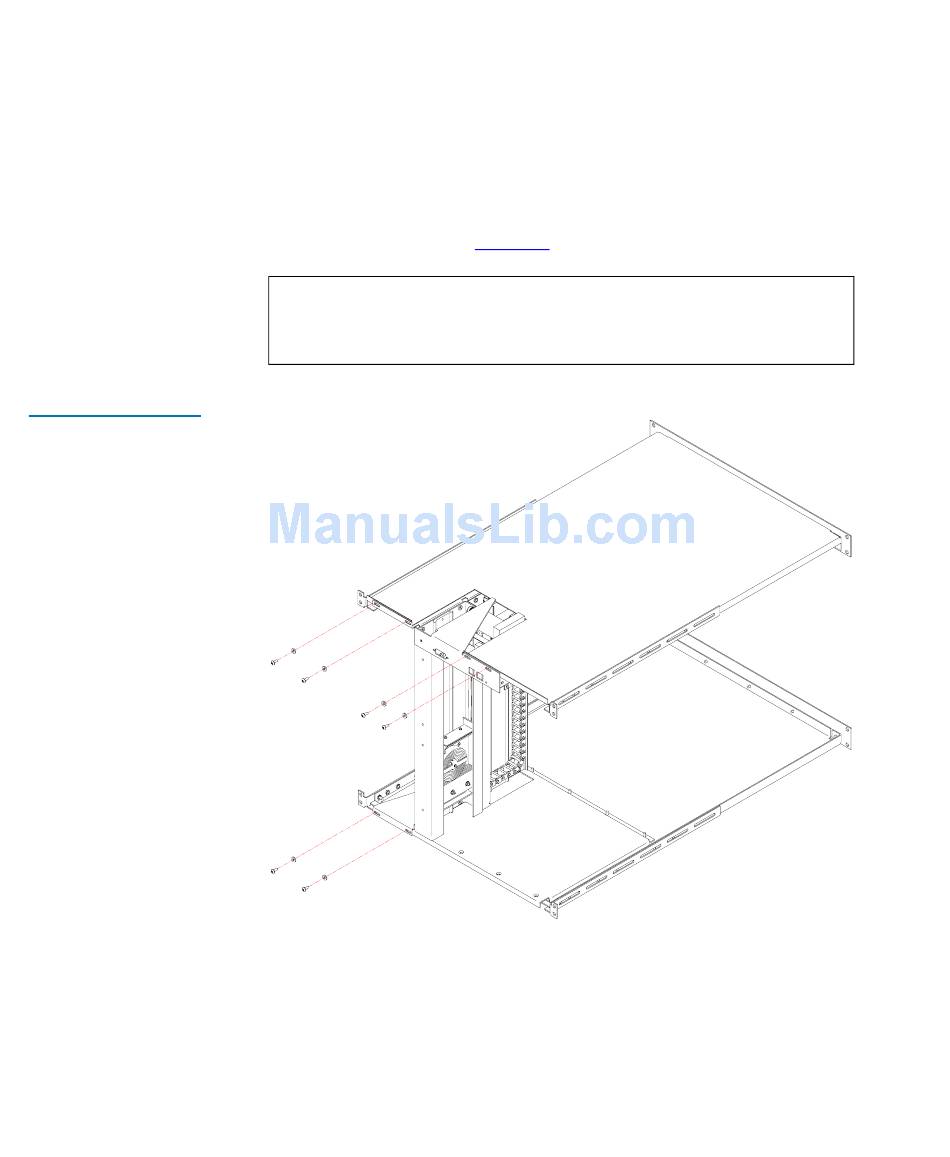

Figure 13 Installing
the Shuttle Assembly
18
3 Ensure that the motor at the top of the shuttle assembly is aligned
with the cutout in the top mounting tray assembly.
4 Slide the shuttle assembly fully into the rack.
5 Secure the shuttle assembly to the upper and lower mounting trays
using six screws (PN YS41952) and washers (PN YS40402) provided
in the StackLink kit (see
Tighten these screws to finger-tightness only. You will
Note:
finish securing the StackLink after you have installed
libraries in the rack.
(SHOWN OUTSIDE OF RACK)
REAR
Now that the StackLink is installed, proceed to the next chapter to
install the rack mount shelves.
