Placing Cartridges
3
in the Library

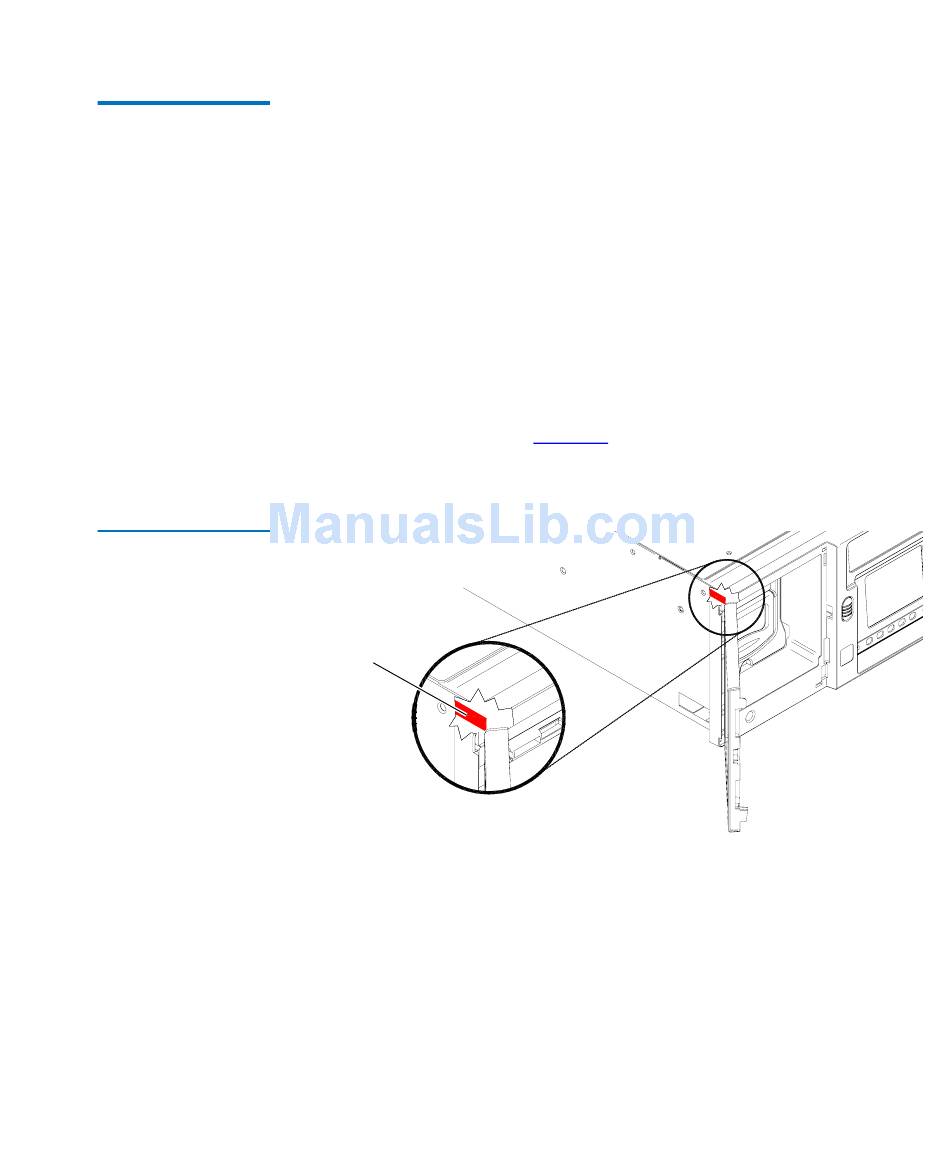

Figure 42 Magazine
Release Button
This section explains how to place tape cartridges in the library.
Placing Tape Cartridges in an ATL M1500 Library
To place tape cartridges in an ATL M1500 library:
1 Remove the left magazine:
Press the button next the left magazine access door and open the
a
door.
Grasping the handle at the front of the left magazine, pull it
b
forward until it stops.
Using a slender object such as a pen, press and hold the magazine
c
release button (see
Pull the left magazine the rest of the way out of the library.
d
Magazine
release
button
2 Remove the right magazine:
Press the button next the right magazine access door and open
a
the door.
Grasping the handle at the front of the right magazine, pull it
b
forward and out of the library.
ATL StackLink™ Installation Instructions
Chapter 3 Installing the Libraries
Preparing and Inserting Tape Cartridges
figure
42).
3
59
