Chapter 1 Installing the StackLink
Installing the Bottom Mounting Tray Assembly

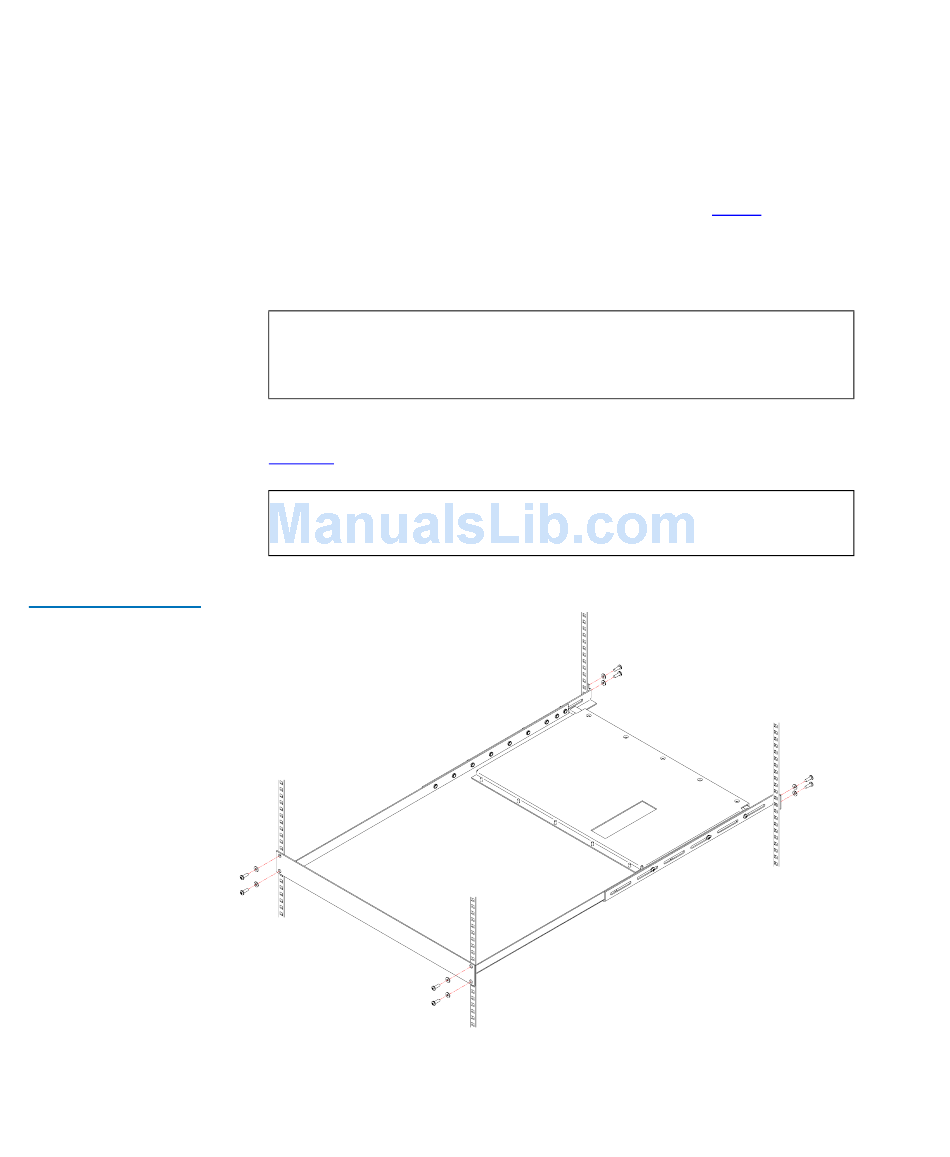

Figure 6 Securing the
Bottom Mounting Tray
Assembly to the Rack
10
3 Adjust the position of the rear support arms on the bottom mounting
tray until the distance between the front and rear flanges is
approximately the same as the distance between the front and rear
mounting strips in the rack.
4 Replace the six screws and washers you removed in
finger-tighten them. Position the front and rear screws as far apart as
the slots allow. Position the third screw approximately in the middle
slot.
Do not over-tighten the screws. You need to be able to
Note:
extend or retract the rear support arms slightly as you
install the bottom mounting tray assembly.
5 Position the bottom mounting tray assembly in the rack, referring to
figure 6
for the correct orientation.
Position the front and rear flanges of the bottom mounting
Note:
tray assembly outside of the rack rails.
FRONT
ATL StackLink™ Installation Instructions
step 2
and
REAR
