Chapter 2 Installing the Rack Mount Shelves
Installing the Shelves

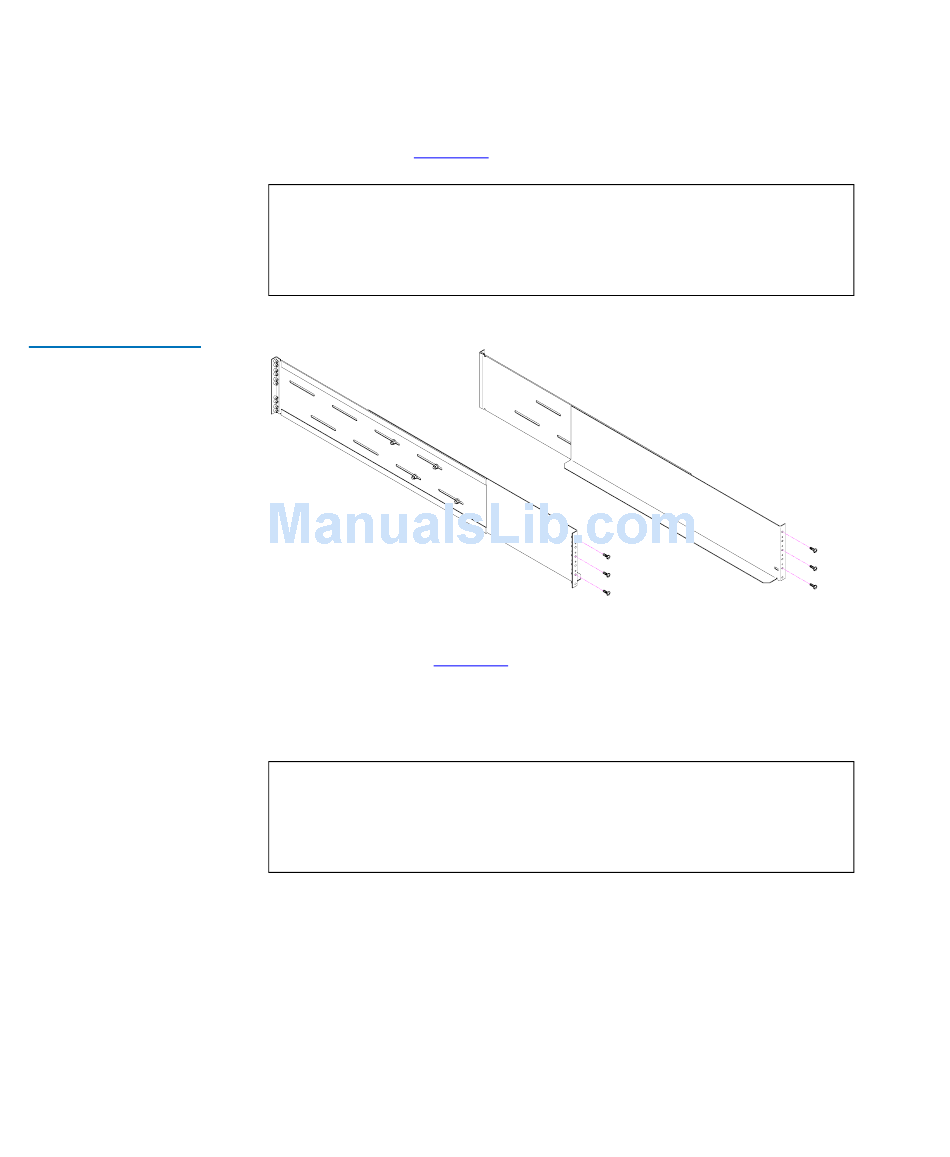

Figure 22 Installing
Inserts at the Front of
the Shelves
34
3 Screw three inserts into the front flange of each rack mount shelf in
positions 2, 6, and 10 (counting from the bottom up, with 1 being the
lowest hole) (see
figure
Some of the inserts have either no head or a head that has
Note:
a smaller diameter than the thread; these need to be left
protruding by about 1/8 in. (3 mm). The inserts with
heads should be tightened fully.
4 Screw three inserts into the rear flange of each rack mount shelf in the
positions shown in
of six holes is at the bottom and the group of four holes is at the top,
the inserts go into holes 2, 6, and 9 (counting from the bottom up,
with 1 being the lowest hole).
Some of the inserts have either no head or a head that has
Note:
a smaller diameter than the thread; these need to be left
protruding by about 1/8 in. (3 mm). The inserts with
heads should be tightened fully.
ATL StackLink™ Installation Instructions
22).
figure
23. If the shelves are oriented so the group
10
6
2
10
6
2
