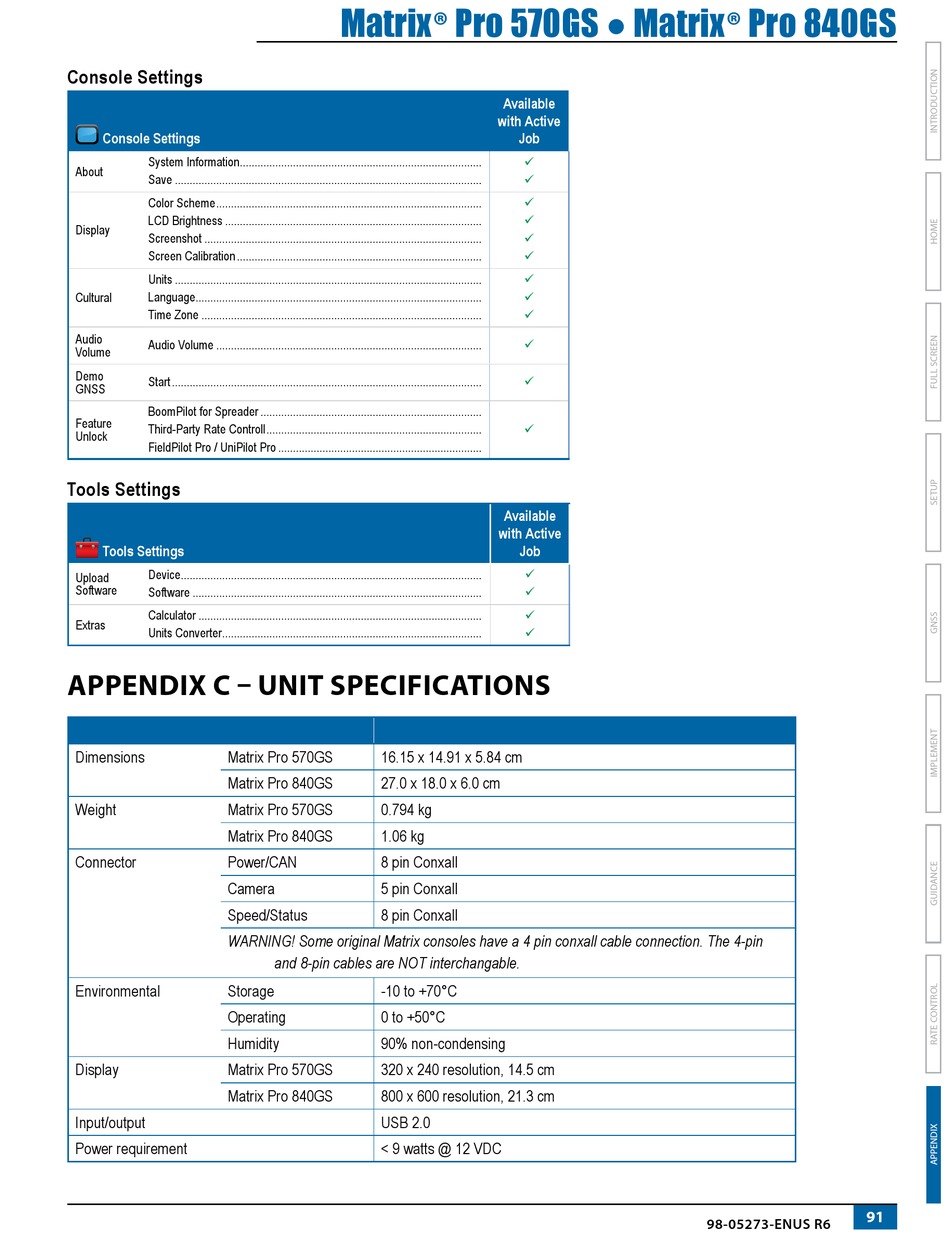

TeeJet Technologies MATRIX PRO GS User Manual page 99

Console Settings
Console Settings
System Information ..................................................................................
About
Save ........................................................................................................
Color Scheme ..........................................................................................
LCD Brightness .......................................................................................
Display
Screenshot ..............................................................................................
Screen Calibration ...................................................................................
Units ........................................................................................................
Cultural Language.................................................................................................
Time Zone ...............................................................................................
Audio
Audio Volume ..........................................................................................
Volume
Demo
Start .........................................................................................................
GNSS
BoomPilot for Spreader ...........................................................................
Feature
Third-Party Rate Controll .........................................................................
Unlock
FieldPilot Pro / UniPilot Pro .....................................................................
Tools Settings
Tools Settings
Device ......................................................................................................
Upload
Software
Software ..................................................................................................
Calculator ................................................................................................
Extras
Units Converter ........................................................................................
APPENDIX C – UNIT SPECIFICATIONS
Dimensions
Matrix Pro 570GS
Matrix Pro 840GS
Weight Matrix Pro 570GS
Matrix Pro 840GS
Connector Power/CAN
Camera
Speed/Status
WARNING! Some original Matrix consoles have a 4 pin conxall cable connection. The 4-pin
Environmental Storage
Operating
Humidity
Display
Matrix Pro 570GS
Matrix Pro 840GS
Input/output
Power requirement
Matrix® Pro 570GS ● Matrix® Pro 840GS
16.15 x 14.91 x 5.84 cm
27.0 x 18.0 x 6.0 cm
0.794 kg
1.06 kg
8 pin Conxall
5 pin Conxall
8 pin Conxall
and 8-pin cables are NOT interchangable.
-10 to +70°C
0 to +50°C
90% non-condensing
320 x 240 resolution, 14.5 cm
800 x 600 resolution, 21.3 cm
USB 2.0
< 9 watts @ 12 VDC
Available
with Active
Job












Available
with Active
Job




91
98-05273-ENUS R6
