Sensors Unavailable

If a Pressure Sensor Interface Kit is not installed, setup options will
not be available.

Input/Output Module Pressure Sensor

When a Pressure Sensor Interface Kit is present, Pressure Sensor
options are used to enter the sensor manufacture's maximum
pressure rating and set high and low user determined pressure
alarms.
1. Press CONFIGURATION side tab
2. Press .
Sensors
Input Output Module (IOM) Pressure Sensor
3. Press
4. Select from:
►Maximum Pressure Rating – used to establish the maximum
pressure rating of the pressure sensor as recommended by
the manufacturer
►Low Pressure Alarm – used to enter the user determined low
pressure point at which the alarm will sound
►High Pressure Alarm – used to enter the user determined high
pressure point at which the alarm will sound
5. Press RETURN arrow
return to the main Configuration screen.

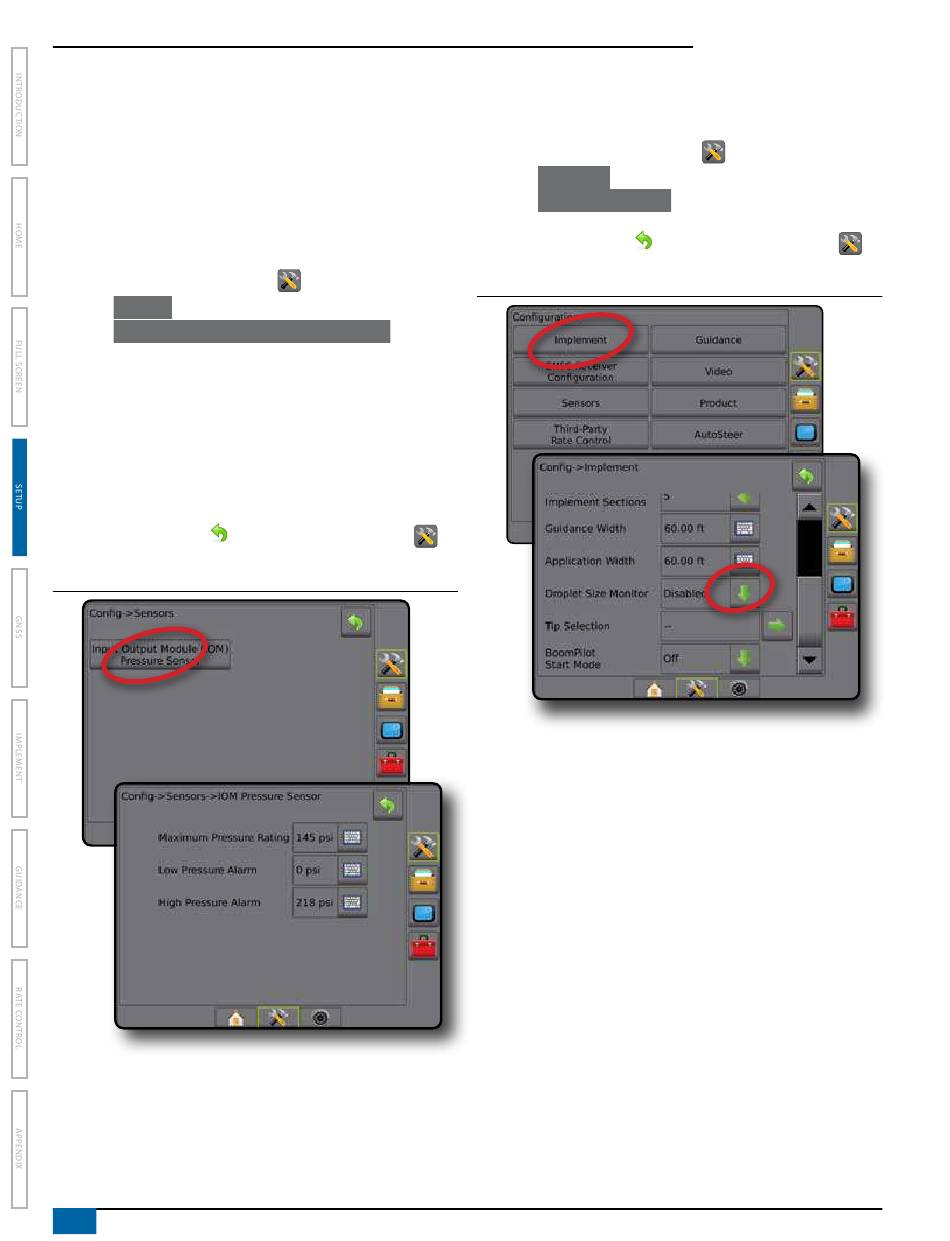

Figure 4-20: Input/Output Monitor Pressure Sensor Options
22
www.teejet.com
.
.
or CONFIGURATION side tab

Droplet Size Monitor

If a Pressure Sensor Interface Kit is being used, the Droplet Size
Monitor options will be available.
1. Press CONFIGURATION side tab
2. Press .
Implement
3. Press
Droplet Size Monitor
4. Select if droplet size monitor is enabled or disabled.
5. Press RETURN arrow
return to the main Configuration screen.
Figure 4-21: Droplet Size Monitor
to
.
.
or CONFIGURATION side tab to
