RealView® Camera
The TeeJet Technologies RealView camera allows video images
to be displayed on the Matrix Pro GS screen. The camera can be
pointed forward to enable RealView guidance over video, or it can be
positioned to view other operational aspects of your equipment. The
camera is equipped with a flexible RAM mount, integral sun shade
and provides infrared illumination, allowing clear video images even
in dark conditions.

BASIC SCREEN USE

The Matrix Pro GS can be used as a simple current job system or advanced multi-job system. Regardless of which mode the console is in,
the basic screen functions are the same.
• Bottom Tabs and Side Tabs access the various screens and sub-screens
• Warnings and Information Pop-ups inform user of console activities and details on setup or guidance functions
• Setup options can easily be set using the drop down menus or keyboard entry screens
To quickly find a setup feature, see "Matrix Pro GS Console Menu Settings" in this manual.

Bottom Tab Keys

The bottom tab keys are always available on screen. These keys
give access to jobs, setup options, and navigation.
Home/Job Screen
System Setup
Vehicle View Guidance
Field View Guidance
RealView guidance or
RealView camera full screen video view
NOTE: RealView Guidance options are only available with a camera
installed on the system.

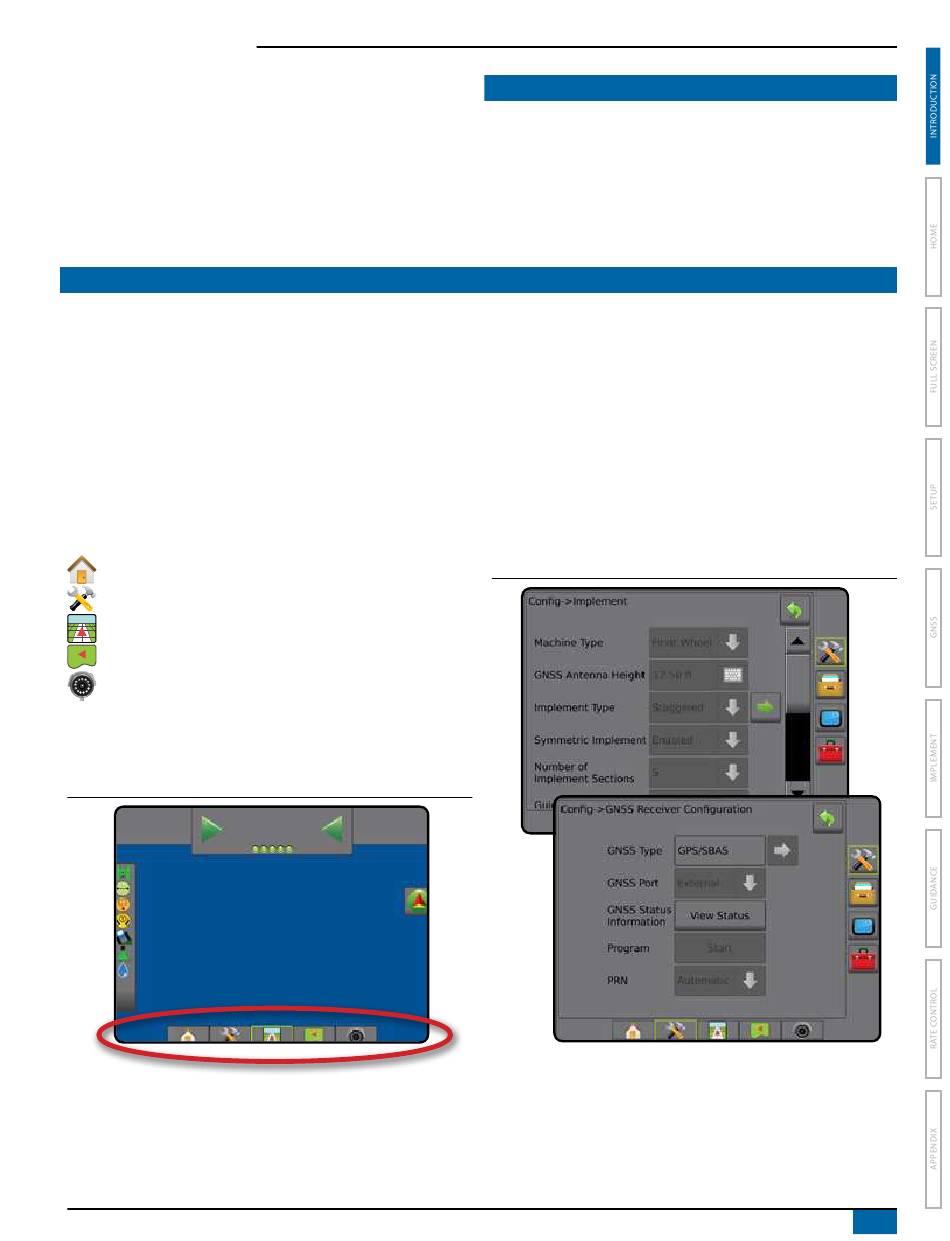

Figure 1-3: Bottom Tab Keys
0.00
ac
Matrix® Pro 570GS ● Matrix® Pro 840GS
0.0
0.0
mph

CONFIGURATIONS

The diagram that was in this location for previous software versions
has been moved to the appendix.

Unavailable Options When Job is Active

When a job is active some setup options are unavailable: see
"Matrix Pro GS Console Menu Settings" in this manual.
Figure 1-4: Examples of Unavailable Options
