Guidance [Lightbar]

Guidance options are used to configure the Cross Track Error shown
on the on the lightbar.
NOTE: In previous software versions, this feature was referred to as
"Lightbar".\
An optional External Lightbar Module (ELM) may be used to provide
additional guideance information.
1. Press CONFIGURATION side tab
Guidance
2. Press .
3. Select from:
►LED Brightness – used to adjust the brightness of the LEDs
►Display Mode – used to determine whether the lightbar
represents the swath or vehicle
● When set to "swath", the LEDs represent guideline location
and the moving LED represents the vehicle
● When set to "vehicle", the centre LED represents vehicle
location and the moving LED represents the guideline
►LED Spacing – used to set the distance away from the
guideline or vehicle each illuminated LED represents
4. With an External Lightbar Module (ELM), select from:
►External Lightbar – enable/disable use of the external lightbar
►External Lightbar LED Brightness – adjusts the brightness of
the external lightbar LEDs
►External Lightbar Text Brightness – adjusts the brightness of
the external lightbar text
►External Cross Track – enable/disable display of cross track
error information on the external lightbar
►External Swath Number – enable/disable display of swath
number information on the external lightbar
►External Speed – enable/disable display of speed information
on the external lightbar
►External Actual Rate [available with Third-party Rate
Control] – enable/disable display of actual rate information on
the external lightbar
►External Target Rate [available with Third-party Rate
Control] – enable/disable display of target rate information on
the external lightbar.
►External Applied Product [available with Third-party Rate
Control] – enable/disable display of applied product
information on the external lightbar
5. Press RETURN arrow
return to the main Configuration screen.
Matrix® Pro 570GS ● Matrix® Pro 840GS
.
or CONFIGURATION side tab

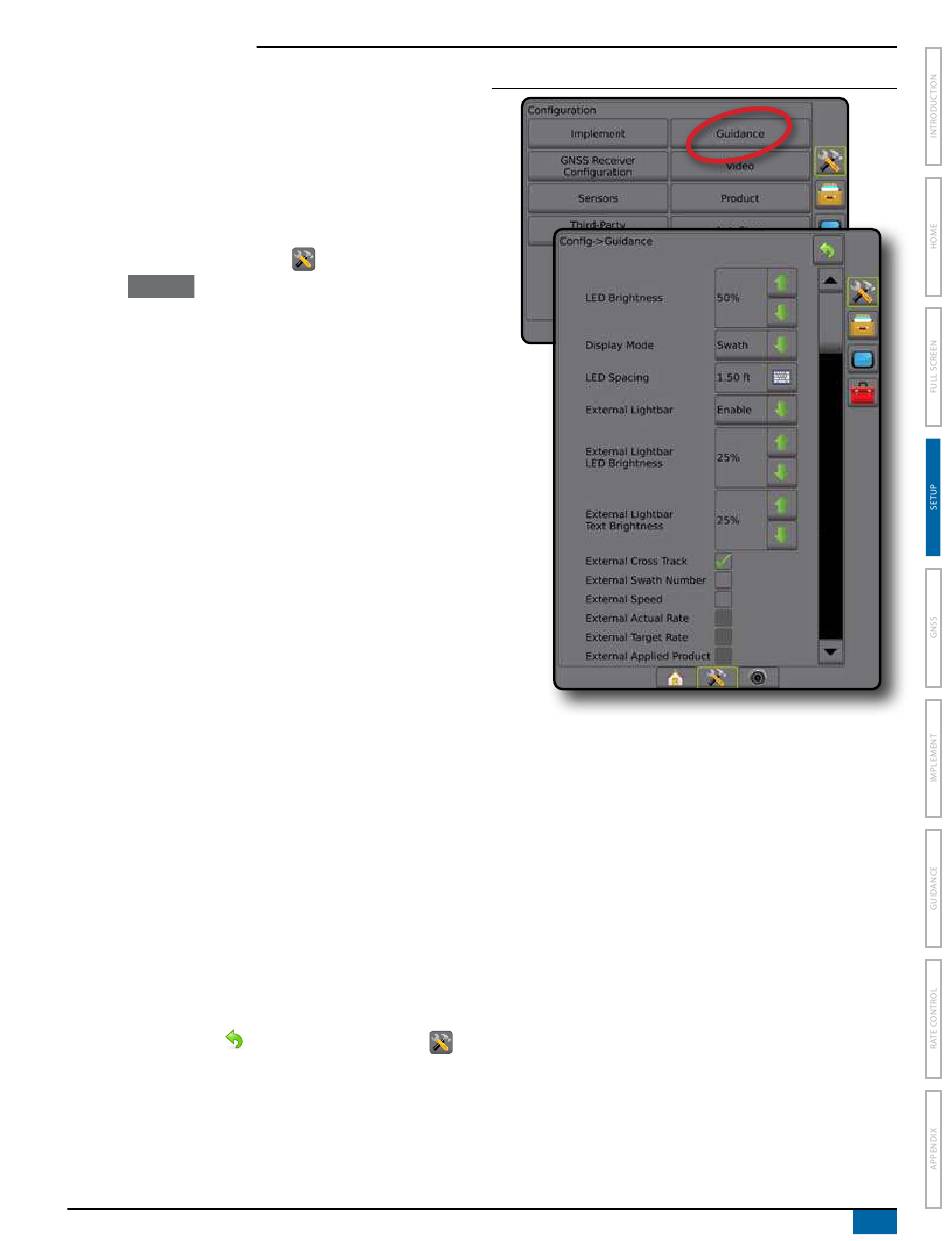

Figure 4-11: Guidance with External Lightbar Module (ELM),
