Vehicle View

Vehicle View creates a computer-generated image of the vehicle position displayed in the application area. From this screen all setup
and navigation options can be accessed via the Options tabs on the right side of the screen.
To access the Vehicle View screen:
1. Press VEHICLE VIEW GUIDANCE tab

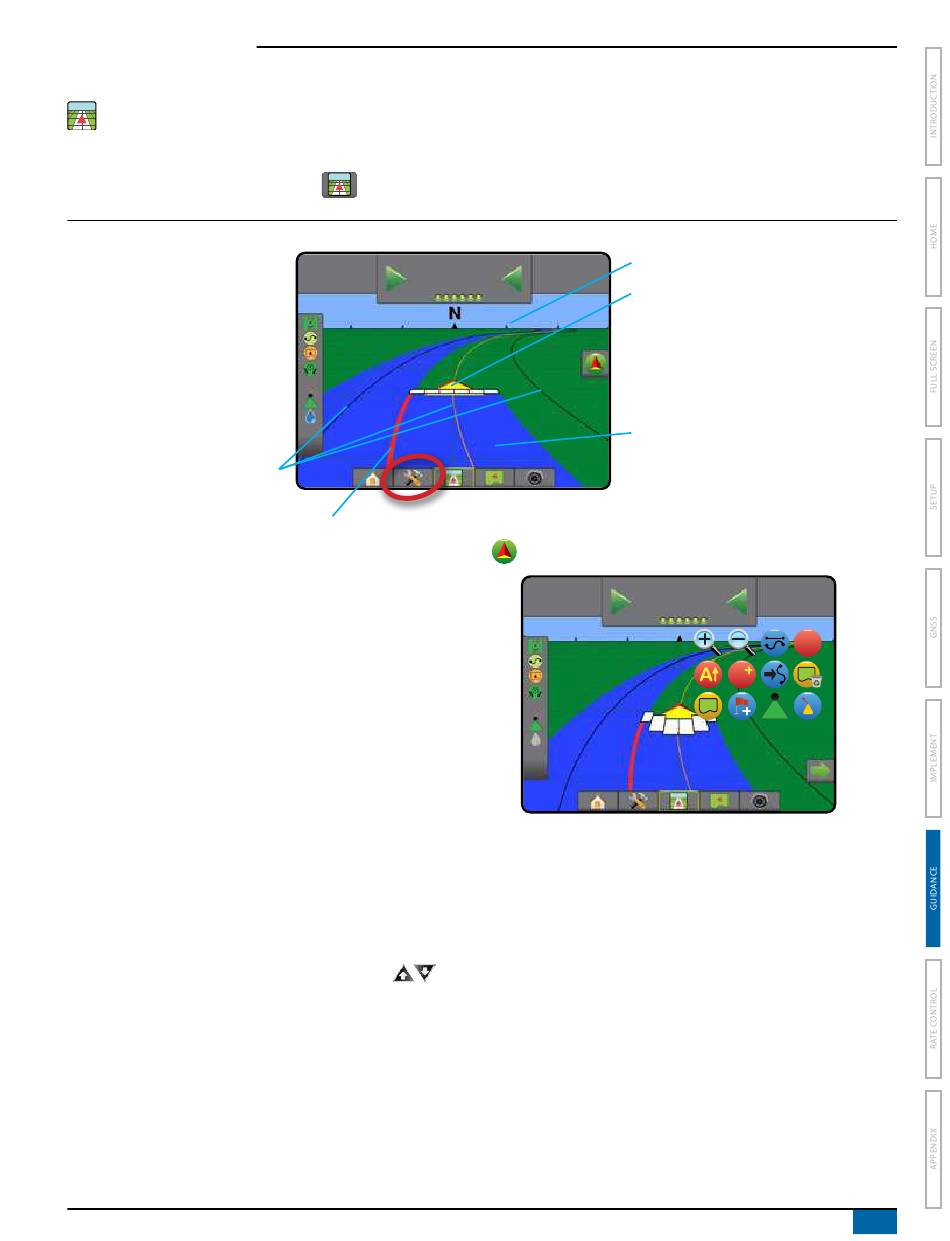

Figure 7-6: Vehicle View
Status Bar
Navigation Guidelines
Overlap Coverage Area
On Screen Guidance
• Guidelines
◄Orange – active guidance line
◄Black (multiple) – adjacent guidance lines
◄Black – boundary line
• Points – markers for established points
◄Red Point – Return to Point
◄Blue Point – Mark A
◄Green Point – Mark B
• Horizon Compass – general heading can be displayed on
horizon (when zoomed in)
• Coverage Area – illustrates applied area and overlap:
◄Blue – one application
◄Red – two or more applications
• Sections
◄Empty boxes – inactive sections
◄White boxes – active sections
Matrix Pro 840GS console button assistance
• Zoom in/out & perspective – the Up/Down buttons
adjust the vehicle's view or perspective to the horizon from
vehicle view to bird's eye view.
Matrix® Pro 570GS ● Matrix® Pro 840GS
.
Guidance Bar
27.00
0.0
ac
Horizon Compass
10.0
mph
Vehicle with Real-time Representation
of Active Boom Sections
Navigation and Guidance Options Tab
Coverage Area
Navigation and Guidance Options Tab
10.0
0.0
mph
27.00
ac
A
A
