APPENDIX A – SYSTEM CONFIGURATIONS
The following diagrams are reflective of typical Matrix Pro GS configurations. Due to the variety of possible configurations, this should be
used for reference purposes only.

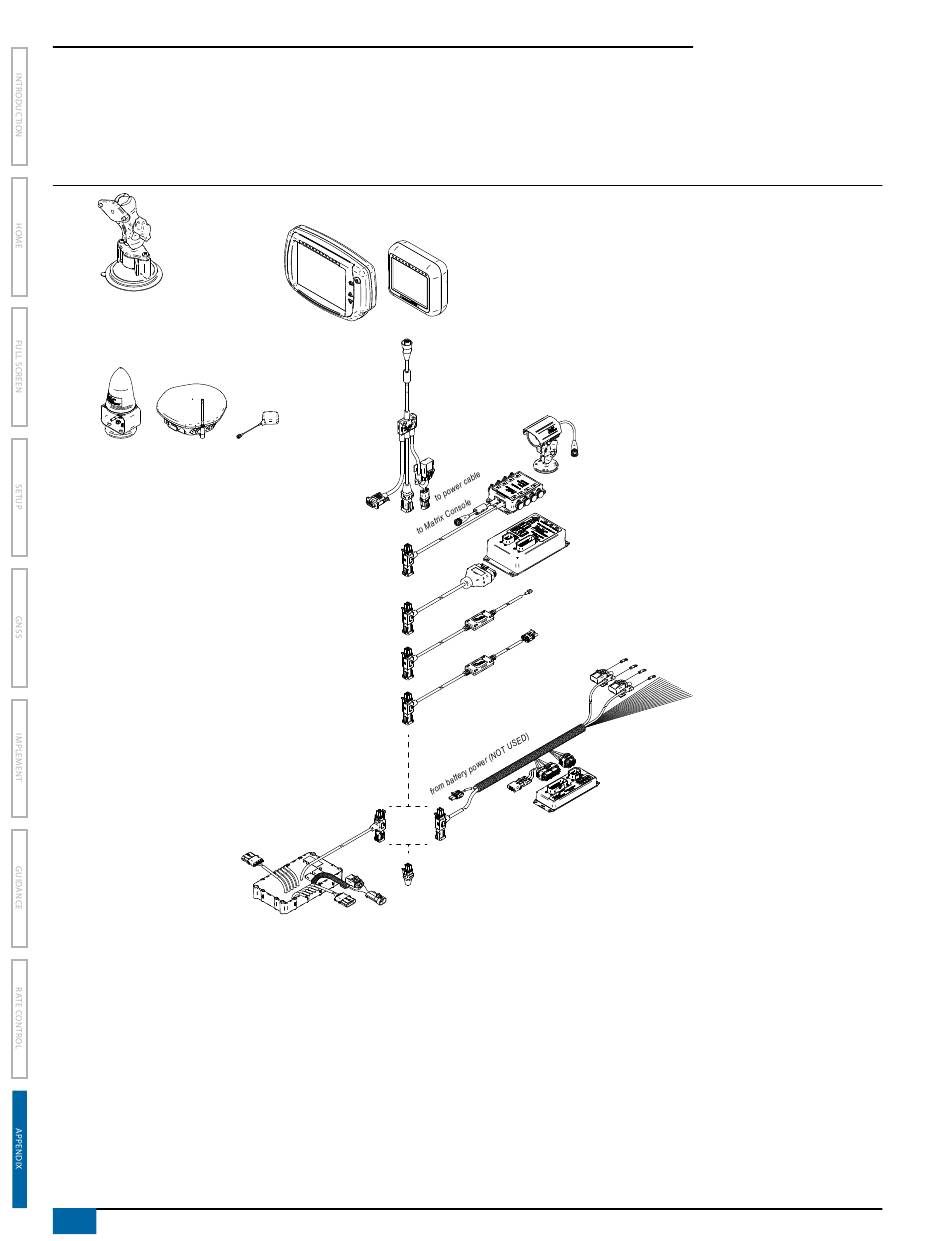

Figure A-1: Matrix Pro GS with FieldPilot AutoSteering System
Kit, RAM Mount w/Suction Cup
90-02349 (Matrix 570)
90-02700 (Matrix 840)
RXA-30 GPS Antenna
GPS GLONASS Antenna
RX510 GPS Receiver / RX610 GPS Receiver
to section control valves
78-08086 - Switch Fuction Module (SFM)
86
www.teejet.com
Matrix Pro 840GS
Matrix Pro 570GS
45-05626
Power/CAN/Data Cable
(included with
FieldPilot, UniPilot
or BoomPilot kits)
to RS-232
OR
Terminator
to power cable
to section control valves
TeeJet CAN Options
RealView Camera
Video Selector Module
FieldPilot AutoSteer System
Reverse Sense Module
Droplet Size Monitor (DSM) Pressure Interface Kit
to battery
45-05897 - SDM 15 Section Harness
to Status
78-05098 - Section Driver Module (SDM)
Switch
to section control valves
