Matrix® Pro 570GS ● Matrix® Pro 840GS

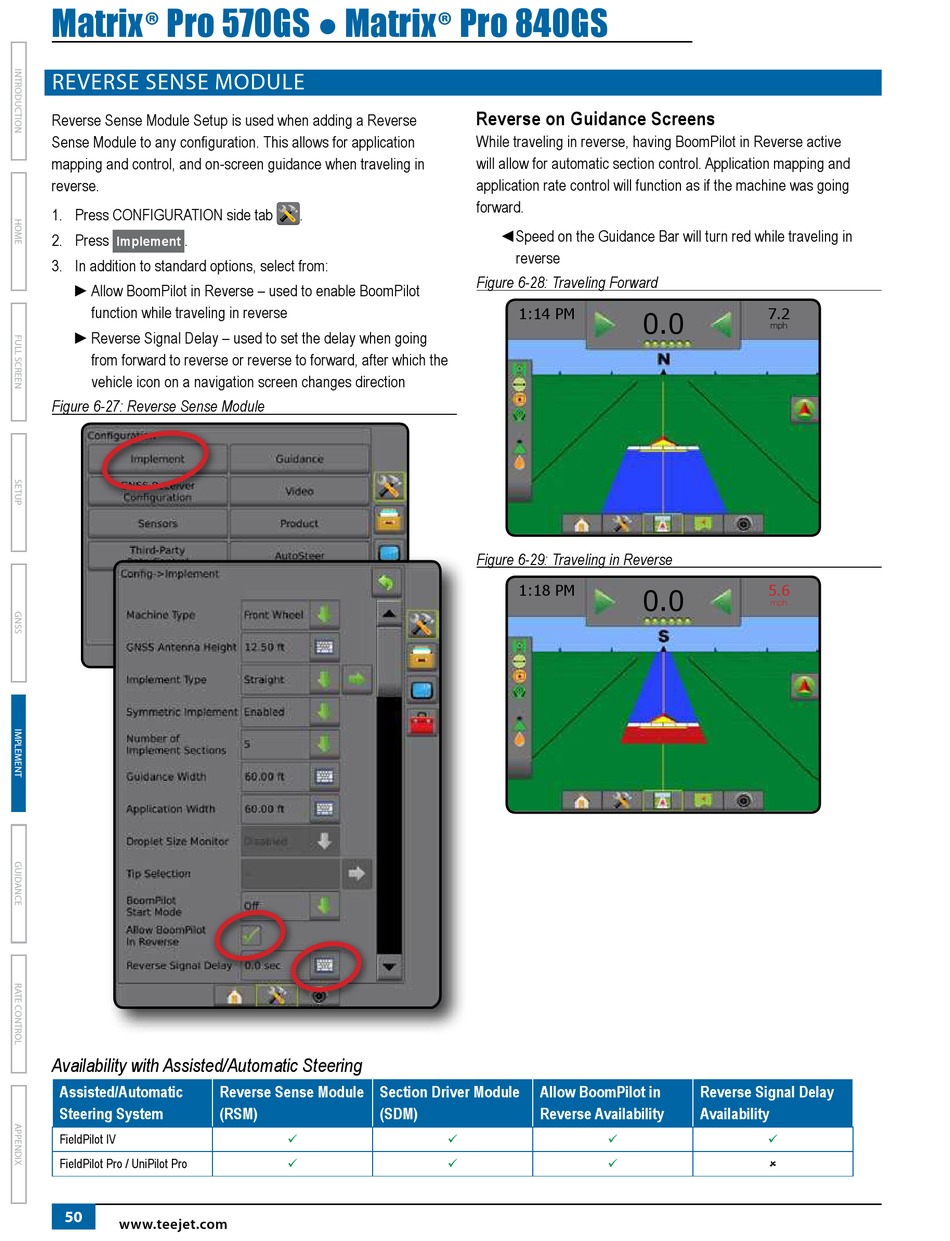

REVERSE SENSE MODULE

Reverse Sense Module Setup is used when adding a Reverse
Sense Module to any configuration. This allows for application
mapping and control, and on-screen guidance when traveling in
reverse.
1. Press CONFIGURATION side tab
2. Press
.
Implement
3. In addition to standard options, select from:
►Allow BoomPilot in Reverse – used to enable BoomPilot
function while traveling in reverse
►Reverse Signal Delay – used to set the delay when going
from forward to reverse or reverse to forward, after which the
vehicle icon on a navigation screen changes direction
Figure 6-27: Reverse Sense Module

Availability with Assisted/Automatic Steering

Assisted/Automatic
Reverse Sense Module
Steering System
(RSM)
FieldPilot IV
FieldPilot Pro / UniPilot Pro
50
www.teejet.com
.
Section Driver Module
(SDM)

Reverse on Guidance Screens

While traveling in reverse, having BoomPilot in Reverse active
will allow for automatic section control. Application mapping and
application rate control will function as if the machine was going
forward.
◄Speed on the Guidance Bar will turn red while traveling in
reverse
Figure 6-28: Traveling Forward
1:14 PM
0.0
Figure 6-29: Traveling in Reverse
1:18 PM
0.0
Allow BoomPilot in
Reverse Availability
7.2
mph
5.6
mph
Reverse Signal Delay
Availability
