Matrix® Pro 570GS ● Matrix® Pro 840GS

Tilt Correction

When a Steering Control Module (SCM) or Tilt Gyro Module (TGM)
is present, Tilt Correction is available. This corrects the GNSS signal
to compensate for errors in the GNSS position while operating on
hilly or sloped terrain.
For detailed setup instructions, refer to your specific assisted/auto
steering installation manual or tilt setup bulletin.
1. Press CONFIGURATION side tab
2. Press
.
Tilt Correction
3. Select if Tilt Correction is enabled or disabled.
Field Level
4. When enabled, select
5. Press RETURN arrow
return to the main Configuration screen.
NOTE: If FieldPilot or UniPilot is being used, a Tilt Gyro Module is
built into the system.
NOTE: Antenna Height must be entered prior to Tilt Calibration.

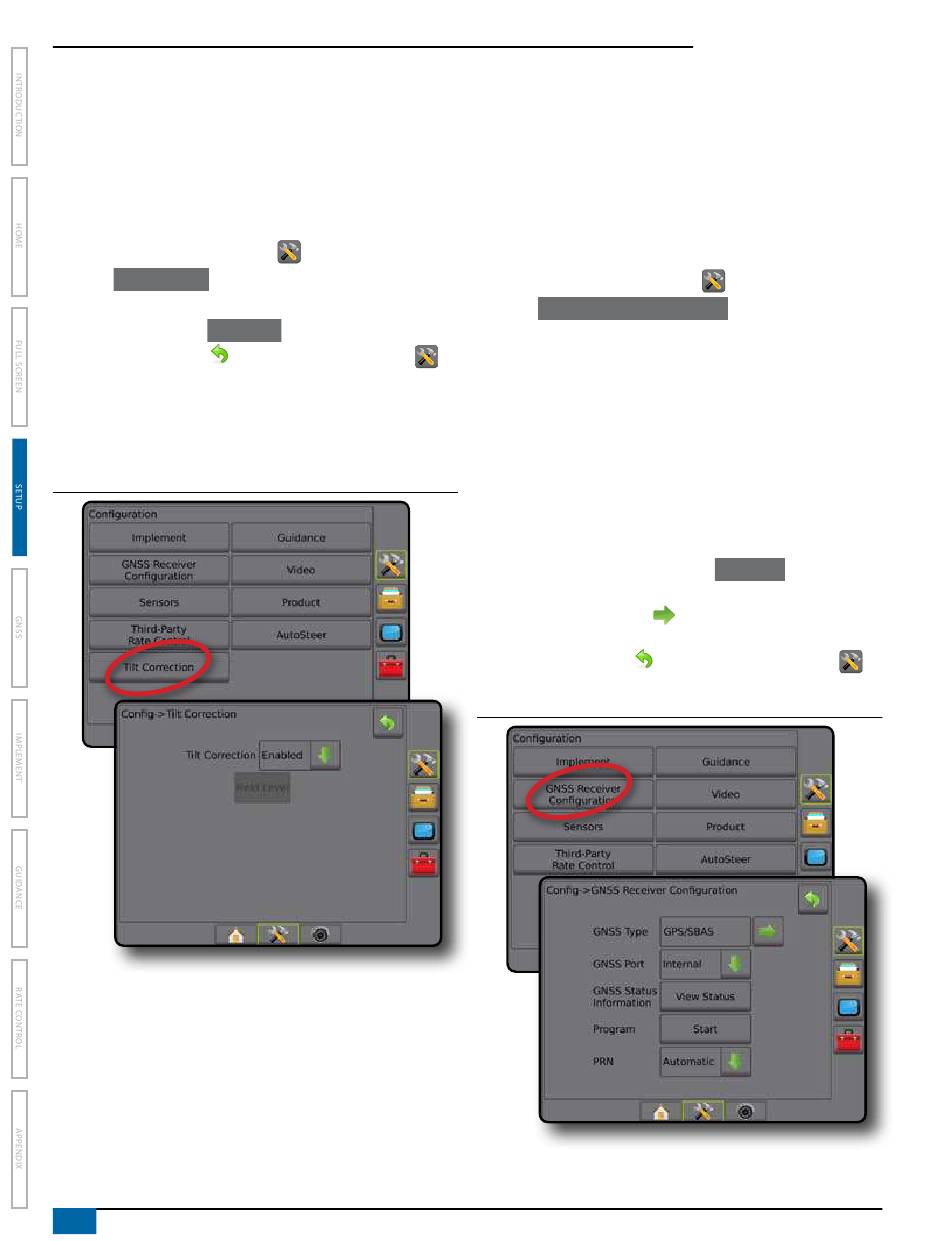

Figure 4-15: Tilt Correction

Field Level Unavailable

If the vehicle is in motion, the field level option will not be available.
Vehicle must be stopped for at least 10 seconds to begin to calibrate
tilt correction.

Tilt Correction Unavailable

If an SCM or TGM is not connected, setup options will not be
available.
20
www.teejet.com
.
to calibrate tilt correction.
or CONFIGURATION side tab

GNSS Receiver Configuration

GNSS Receiver Configuration is used to configure GNSS Type,
GNSS Port, and PRN, as well as to view GNSS status information.
NOTE: For more information, see the GNSS Receiver Configuration
chapter of this manual.
These settings are required for assisted/auto steering, tilt
sensor operation, and rate control functionality, as well as
proper implement operation.
1. Press CONFIGURATION side tab
GNSS Receiver Configuration
2. Press
3. Select from:
►GNSS Type – sets to accept GNSS source transmissions:
to
GPS, GLONASS, SBAS (with or without DGPS Required)
►GNSS Port – sets GNSS communication port to either Internal
or External
►GNSS Status Information – displays current GNSS status
information
►Program – only TeeJet support technicians should use this
feature
►PRN – selects the SBAS PRN that will provide GNSS
differential correction data. Set to
PRN selection.
4. Press NEXT PAGE arrow
GNSS options.
5. Press RETURN arrow
return to the main Configuration screen.
Figure 4-16: GNSS Receiver Configuration Options

PRN Not Shown

PRN options are only available with SBAS GNSS Type selected.
.
.
for automatic
Automatic
to set up the selected specific
or CONFIGURATION side tab
