APPLICATION OR WORKING WIDTH

Application Width [Straight Implement Type or Staggered Implement Type] or Working Width [Spreader Implement Type] is used to enter the
width of the single section or width of each section to calculate the total width of the implement.

Single Section

No section control is available on the system.
Application Width or Working Width is used to enter the total width
of the single section of the implement. Range is 3.28 to 246.06 feet /
1.0 to 75.0 meters.
1. Press CONFIGURATION side tab
2. Press .
Implement
3. Press the Application Width [Straight Implement Type] or
Working Width [Spreader Implement Type] KEYPAD icon
4. Use the numeric keypad to enter a value.
5. Press RETURN arrow
return to the main Configuration screen.

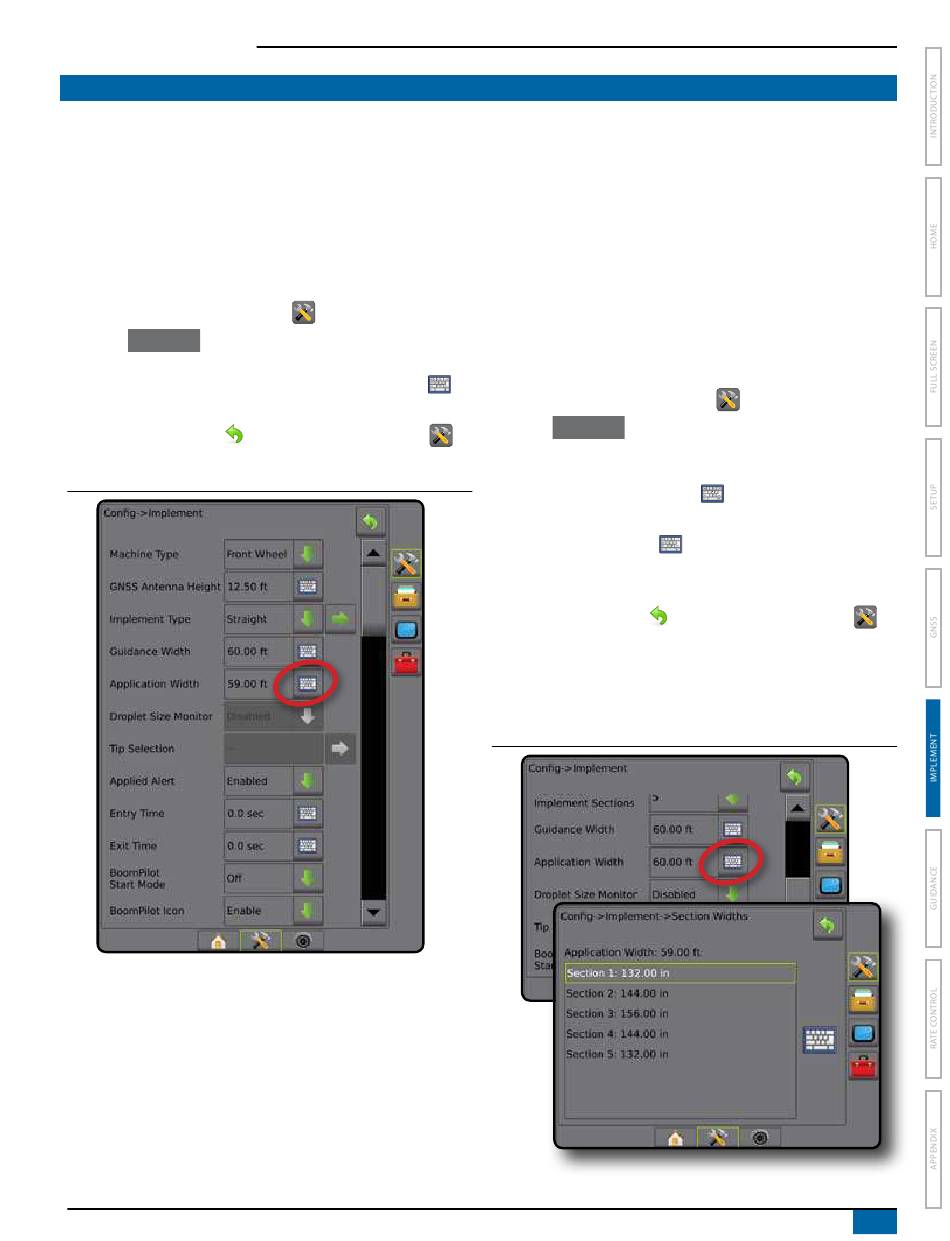

Figure 6-22: Single Section – Application or Working Width
Matrix® Pro 570GS ● Matrix® Pro 840GS
.
or CONFIGURATION side tab

Multiple Sections

Section control is available (SmartCable, Section Driver Module
(SDM), or Switch Function Module (SFM) or ISOBUS).
Application Width or Working Width is used to enter the width of each
section to calculate the total width of all sections of the implement.
Each section can be a different width. Sections are numbered from
left to right while facing in the machine's forward direction. Range for
each section is 0.0 to 246.06 feet / 0.0 to 75.0 meters. Total for all
sections must be greater than 3.28 feet / 1.0 meter.
.
1. Press CONFIGURATION side tab
2. Press .
Implement
to
3. Press the Application Width [Straight Implement Type or
Staggered Implement Type] or Working Width [Spreader
Implement Type] KEYPAD icon
4. Highlight the section to be entered or edited.
5. Press the KEYPAD icon
6. Use the numeric keypad to enter the width of the selected
section.
7. Press RETURN arrow
return to the Implement screen or main Configuration screen.
NOTE: If Symmetric Implement Layout is enabled, only the first
of each pair of aligned sections will be available to be
highlighted.
Figure 6-23: Multiple Sections – Application or Working Width
.
.
or CONFIGURATION side tab
