Field View

Field View creates a computer-generated image of the vehicle position and application area from an aerial perspective. From this
screen, all setup and navigation options, as well as Pan Mode, can be accessed via the Option tabs on the right side of the screen.
To access the Field View screen:
1. Press FIELD VIEW GUIDANCE tab

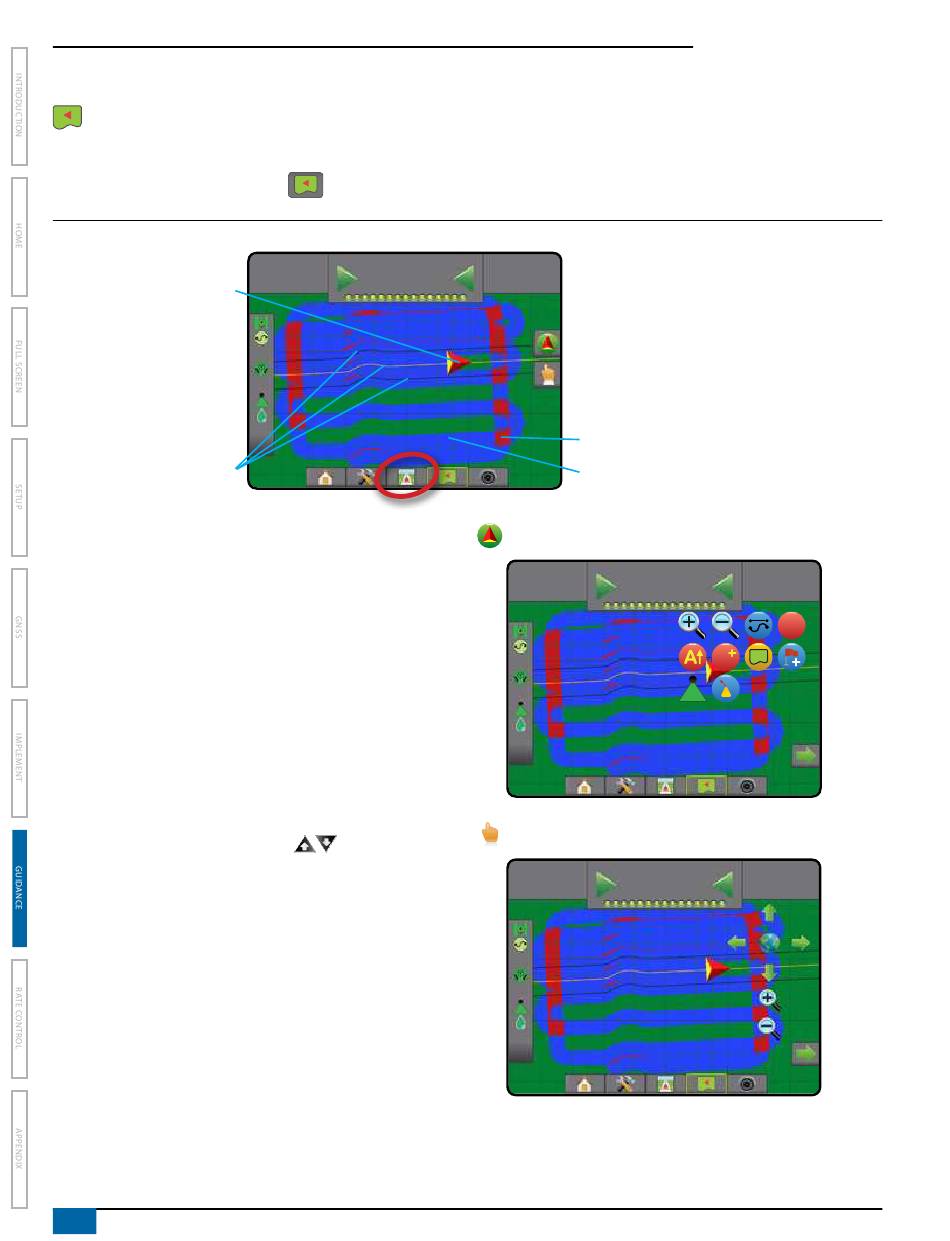

Figure 7-7: Field View
Vehicle Representation
Status Bar
Navigation Guidelines
On Screen Guidance
• Guidelines
◄Orange – active guidance line
◄Black (multiple) – adjacent guidance lines
◄Black – boundary line
• Points – markers for established points
◄Red Point – Return to Point
◄Blue Point – Mark A
◄Green Point – Mark B
• Coverage Area – illustrates applied area and overlap
◄Blue – one application
◄Red – two or more applications
Matrix Pro 840GS console button assistance
• Zoom in/out – the Up/Down buttons
visible area.
