CHAPTER 5 – GNSS RECEIVER CONFIGURATION
GNSS Receiver Configuration is used to configure GNSS Type, GNSS Port, and PRN, and other GNSS parameters, and to view GNSS
status information.

GNSS Receiver Configuration

NOTE: These settings are required for rate control, assisted/
auto steering, and tilt sensor operation, as well as proper
implement operation.
1. Press CONFIGURATION side tab
GNSS Receiver Configuration
2. Press
3. Select from:
►GNSS Type – sets to accept GNSS source transmissions:
GPS, GLONASS, or SBAS (with or without DGPS Required).
►GNSS Port – sets GNSS communication port: Internal or
External
►GNSS Status Information – displays current Baud Rate, Baud
Rate Status, GNSS Status Information: GGA/VTG (Data
Rates), Number of Satellites, HDOP, PRN, GGA Quality,
Receiver, Receiver Version, UTM Zone, and correction model
►Program – allows direct programming of the GNSS receiver
through a command line interface. Only TeeJet support
technicians should use this feature. Use at your own risk!
►PRN – selects the SBAS PRN that will provide GNSS
differential correction data. Set to
PRN selection.
►Alternate PRN – when PRN is not automatic, a second
alternate SBAS PRN will provide a second set of GNSS
differential correction data
4. Press RETURN arrow
return to the main Configuration screen.
34
www.teejet.com
.
.
for automatic
Automatic
or CONFIGURATION side tab

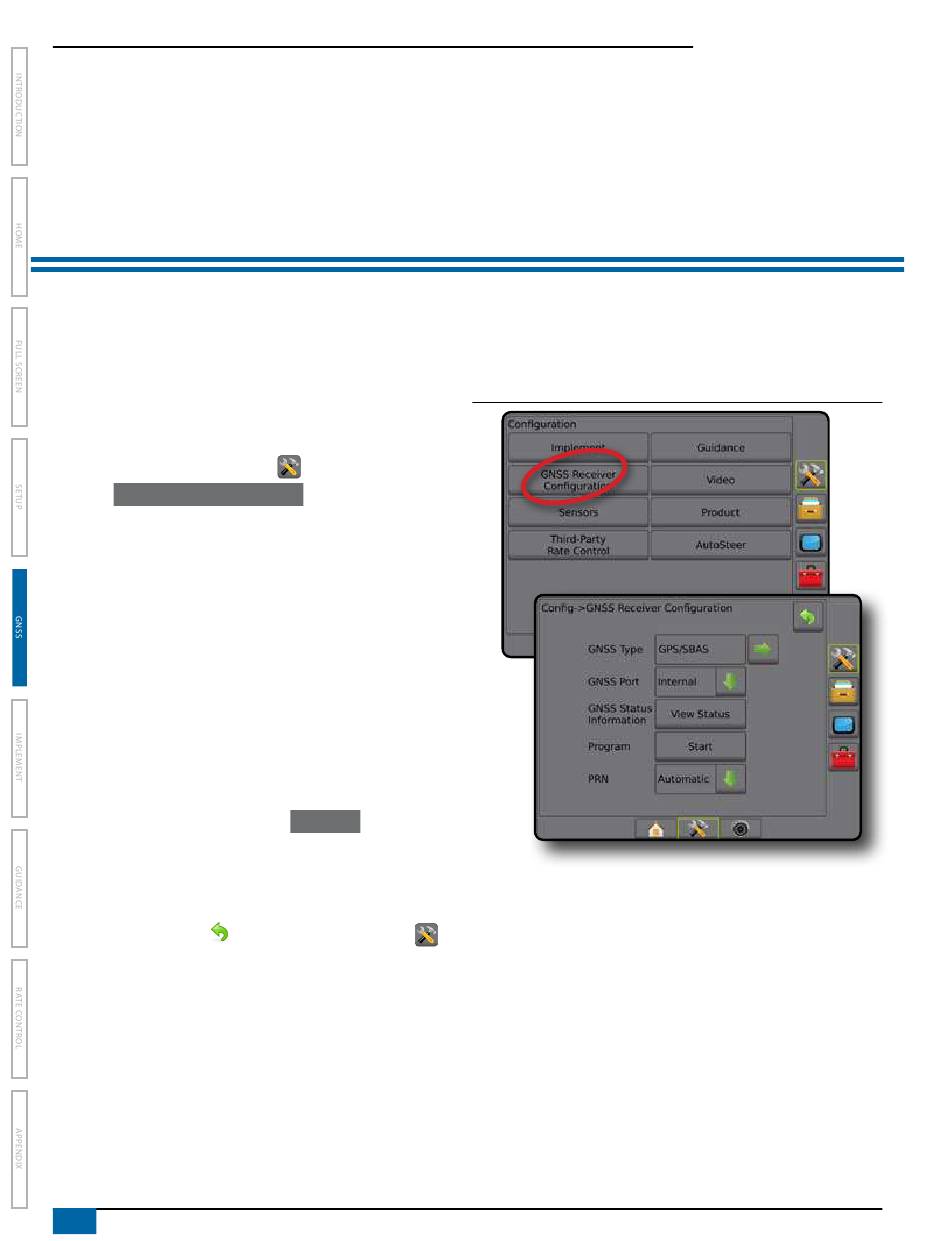

Figure 5-1: GNSS Options
to
