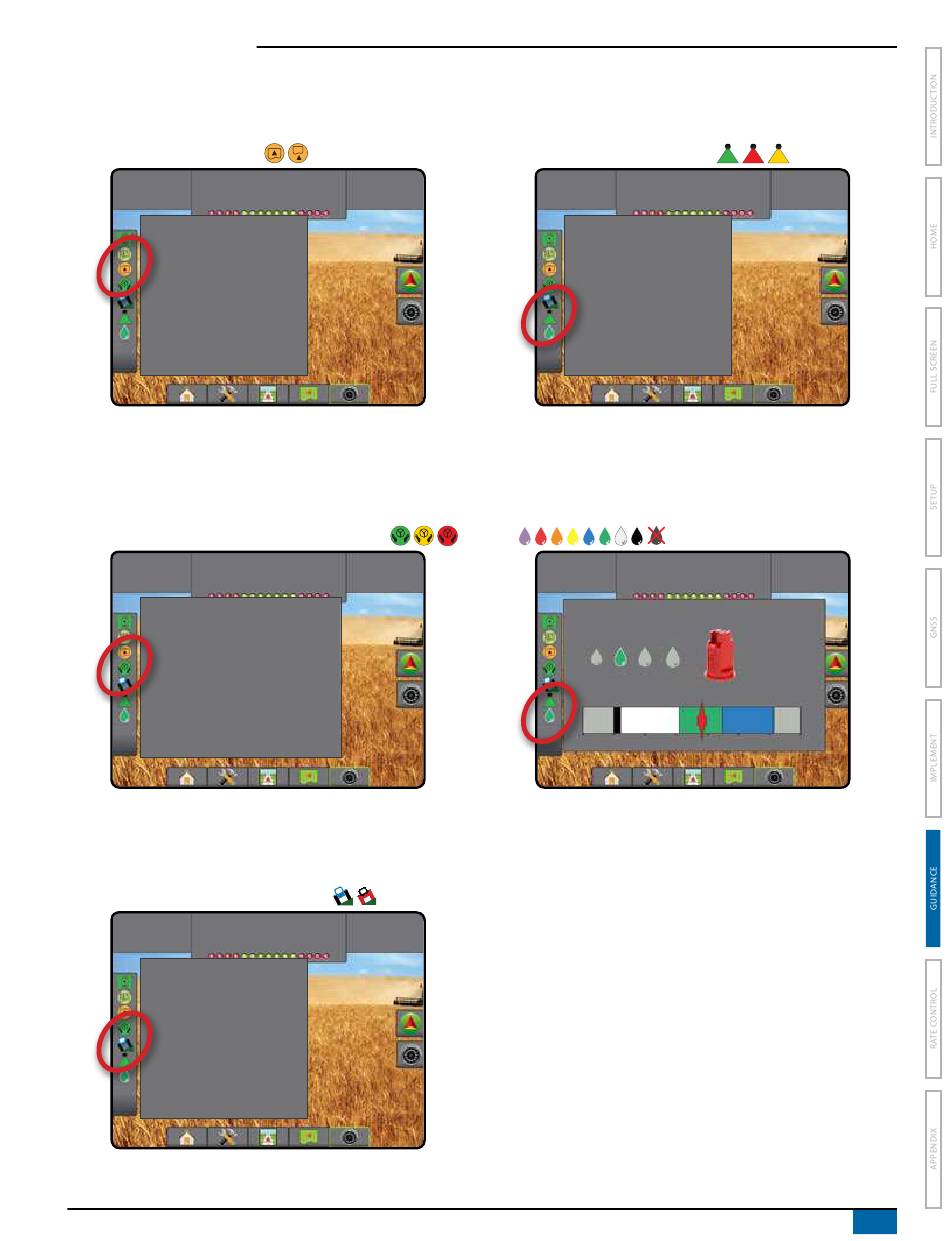

Bounded Area Status
Bounded Area Status displays information regarding the areas in the
current boundaries.
1. Press BOUNDED AREA icon
27.00 Mark A
ac
Working Area: 12.54 ac
Field Area: 10.49 ac
Internal Area: 2.05 ac
Assisted/Auto Steering Status
Assisted/Auto Steering Status displays information regarding
the current status of the assisted/auto steering system,
including tilt status.
1. Press ASSISTED/AUTO STEERING STATUS icon
27.00 Mark A
ac
TR: 0.1 deg/sec
Tilt Corre ctions Disabled
Assisted/Auto Steering Status:
Disenga ged
Under Minimum Speed
Steering Wh eel Sensor Error
Tilt Correction Status
Tilt Correction Status displays information regarding the current
status of the tilt correction system.
1. Press TILT CORRECTION STATUS icon
27.00 Mark A
ac
Tilt X: 1.3 deg
Tilt Y: 0.2 deg
Matrix® Pro 570GS ● Matrix® Pro 840GS
.
10.0
mph
.
10.0
mph
.
10.0
mph
BoomPilot Status
BoomPilot Status displays information regarding the current status of
the BoomPilot system.
1. Press BOOMPILOT STATUS icon
27.00 Mark A
ac
Number of Sections: 15
Droplet/Pressure Status
Droplet/Pressure Status displays information regarding the current
status of the droplet size and system pressure.
1. Press DROPLET/PRESSURE STATUS icon
.
VC Mark A
AIXR TeeJet®
Very Coarse
0 15 30 45
.
10.0
mph
55
psi
AIXR11004
55
psi
60 75 90 PSI
