APPLICATION BOUNDARY

Application boundaries establish areas where product is and is
not applied while using ABSC or BoomPilot. Boundaries can be
established in all guidance modes. One exterior boundary and up to
five (5) interior boundaries can be stored at one time.
Using Data - > Job Data - > Manage or with Fieldware Link, a user
can duplicate and edit jobs for reuse of boundaries and guidelines
for different applications over the same field.
To establish an exterior application boundary:
1. Drive to a desired location at the perimeter of the application
area.
2. Press NAVIGATION AND GUIDANCE OPTIONS tab
display navigation options.
3. While the vehicle is in motion, press BOUNDARY icon
4. Travel the perimeter of the application area.
5. Finish the boundary:
►Travel to within one swath width of the starting point. The
boundary will close automatically (the white guideline will turn
black).
►Press BOUNDARY FINISH icon
complete the boundary between your current location and the
starting point.
6. Press:
►Save – to save the boundary
►Delete – to delete the boundary
NOTE: On the external or initial boundary, the BOUNDARY FINISH
icon is not available for selection (grayed out) until the
minimum distance is travelled (five times the swath width).
If mapping a boundary with one or more sections folded in and
turned off, it is necessary to maintain this section configuration
for the duration of the boundary pass. Any changes made to
the number of sections turned on, and therefore the width of the
machine after the boundary mapping process has started, will result
in the application mapping the boundary at the outer edge of all the
programed sections – not necessarily those turned on at any given
time during the boundary pass.
When mapping a boundary with some sections turned off, it is
necessary to turn BoomPilot to Manual mode
the master and section switches for all sections that will be used
during the boundary pass. Once the boundary pass is complete the
sections switches can be turned OFF, Master switch remains ON,
BoomPilot can be returned to Automatic mode
section control can then be used.
Matrix® Pro 570GS ● Matrix® Pro 840GS
NOTE: If a boundary is mapped with some sections folded

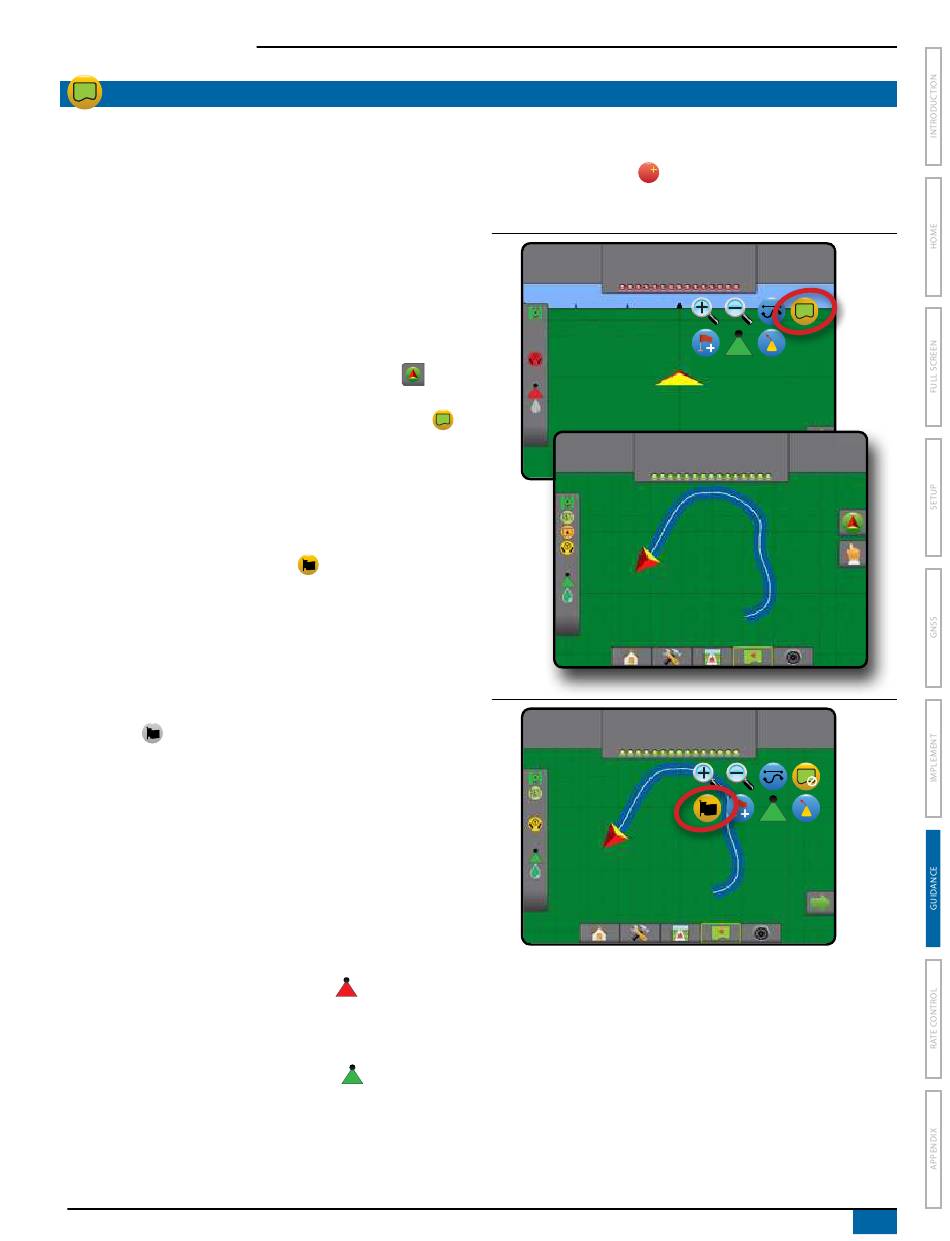

Figure 7-21: Boundary in Progress
to
.
. A straight line will
Figure 7-22: Finish Boundary – Straight Line to Starting Point
and turn ON
and automatic
as described above, it may be necessary to use the
A
A+ NUDGE icon on the guideline over to the correct
position for subsequent passes in the field.
0.00
ac
2.32
Mark A
ac
2.32
Mark A
ac
98-05273-ENUS R6
0.0
mph
7.2
mph
7.2
mph
71
