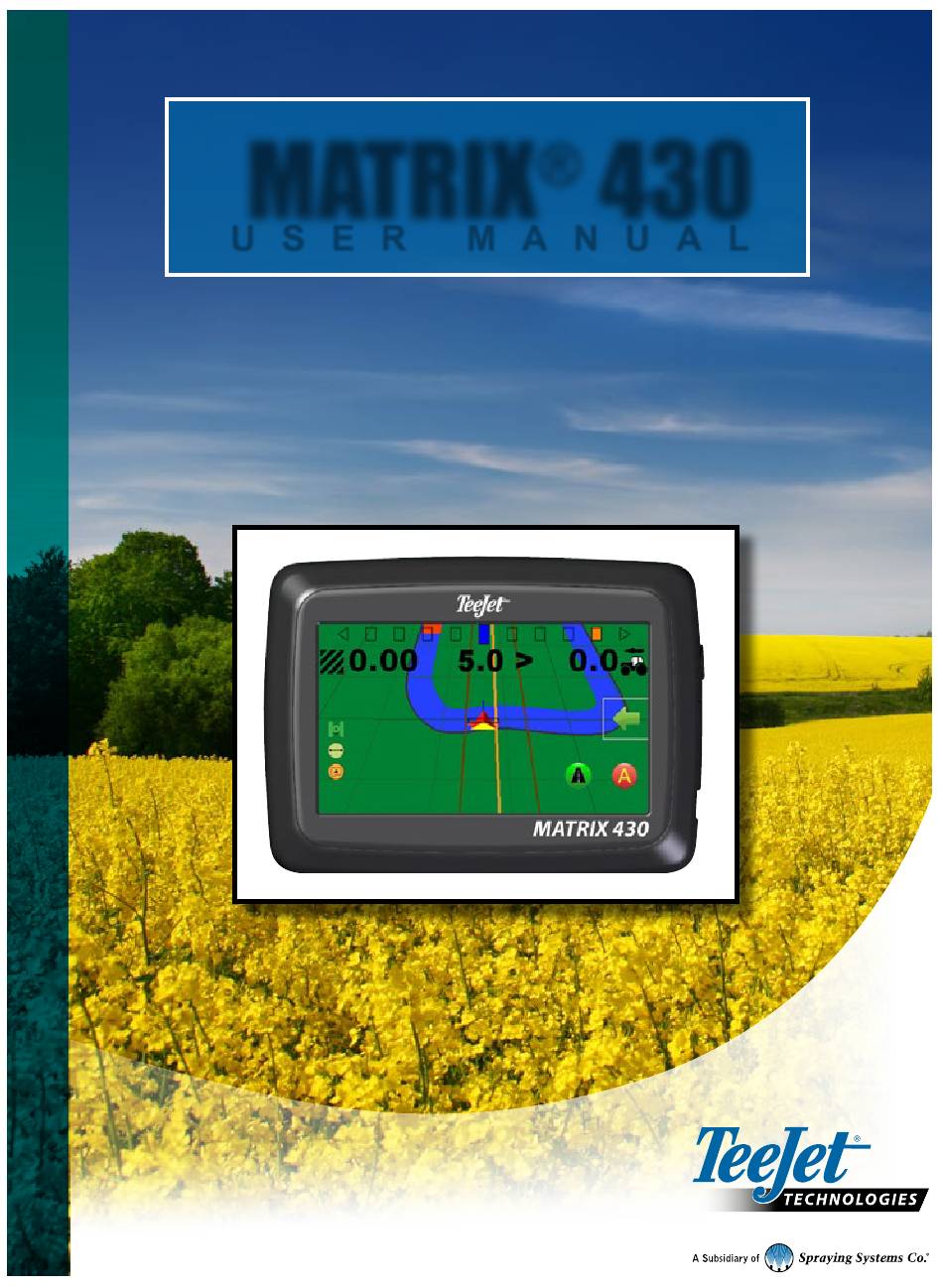

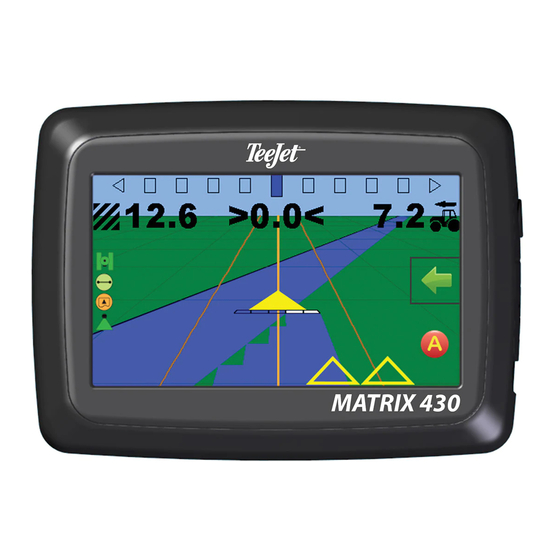

- Page 1 MATRIX ® U S E R M A N U A L 98-05332 R4...
-
Page 2: Configure The Machine
– used to select between using ClearPath or SBAS. ® X Select Additional Constellations – used to Indicated when the GLONASS or QZSS uncorrected signals are available. NOTE: When using the Matrix 430 in Europe, always include GLONASS. Use SBAS (EGNOS) where applicable. www.teejet.com... -
Page 3: Setup Guidance
MATRIX ® SETUP GUIDANCE 1. From the Home screen , press GUIDANCE button 2. Establish desired Selectable Guidance Bar Information. – Speed – Total Applied Area – Application Time – Swath Number 3. On vehicle view guidance screen, from the NAVIGATION AND GUIDANCE OPTIONS tab , select Guidance mode –... -
Page 4: Table Of Contents
MATRIX ® Table of contents QUICK START GUIDE SETUP THE CONSOLE CONFIGURE THE MACHINE SETUP GUIDANCE GUIDANCE SCREEN OPTIONS IMPORTANT SAFETY INFORMATION GENERAL WARNINGS AND PRECAUTIONS CHAPTER 1 – INTRODUCTION SYSTEM COMPONENTS Matrix 430 Console ......................................1 System Components .....................................1 Recommended Antenna Installation ..........................1 POWER BASIC SCREEN USE Home Screen ........................................2... - Page 5 Copyrights © 2023 TeeJet Technologies. All rights reserved. No part of this document or the computer programmes described in it may be reproduced, copied, photocopied, translated, or reduced in any form or by any means, electronic or machine readable, recording or otherwise, without prior written consent from TeeJet Technologies.
-
Page 6: General Warnings And Precautions
TeeJet Technologies ® IMPORTANT SAFETY INFORMATION All safety related and operating instructions should be read before the system is operated. Safe operation of machinery is the operators responsibility. Safety procedures must be posted close to the equipment and clearly visible to and legible by the operator. Safety procedures should meet all company and local regulations, as well as MSDS-requirements. - Page 7 TeeJet Technologies ® WARNING! PRESSURISED HYDRAULIC SYSTEMS • Always wear personal protective equipment (PPE) when performing work on hydraulic systems. • Adhere to the machine manufacture’s approved maintenance instructions when working on the hydraulic system. • Always turn equipment off when working on the hydraulic system. Take appropriate precautions when opening systems that have been previously pressurised.
- Page 8 TeeJet Technologies ® CAUTION! HARNESS CABLE AND HOSE SAFETY • Routinely check all harness cables and hoses for damage or wear. Replace or repair when necessary. • Do not route harness cables and hoses with sharp bends. • Do not strap harness cables and hoses to lines with high vibration or spikes in pressure. •...
-
Page 9: Chapter 1 - Introduction
EU 45-05969 Work On-Off The console needs to be cycled off and back on when changing or attaching equipment to the Matrix 430 system. Recommended Antenna Installation The GNSS antenna should be mounted as far forward as possible on top of the cab on a metal surface of at least 4”/10 cm square. -
Page 10: Quick Start Guide
MATRIX ® POWER BASIC SCREEN USE The basic screen functions are: Power On • Home button accesses the Home screen with setup buttons 1. Press POWER button for Guidance, Configuration, Job Data, Console settings and a calculator Power Off • Options tab on the Guidance screen accesses the Home 1. -
Page 11: Guidance Screen Options
MATRIX ® Keyboard Entry Screens ICON REFERENCE Some screens offer keyboard entry. Press the current selection to access the keyboard. Use the numeric keypad to enter a value. Guidance To change a value: 3. Press CURRENT VALUE. 3. Use the numeric keypad to enter a new value. 4. -
Page 12: Overheat Warning
MATRIX ® Configuration Console Machine Configuration LCD Brightness User Interface Colour Scheme Machine Profile Number Units Number of Implement Sections Section Widths Demonstration GNSS: GNSS or Demo Lateral Implement Offset Distance Screenshot In-Line Implement Offset Distance Time Zone ... -
Page 13: Chapter 2 - Guidance
MATRIX ® CHAPTER 2 – GUIDANCE Two guidance screens, vehicle view and field view, assist in keeping the user informed. From the vehicle view screen, guidance setup and navigation options can be accessed via the tab on the right side of the screen. GUIDANCE SCREEN OPTIONS AND INFORMATION Guidance Views Vehicle View Navigation... -
Page 14: Field View Navigation
MATRIX ® Field View Navigation Field view guidance creates a computer-generated image of vehicle position and application area from an aerial perspective. Vehicle Navigation and Guidance Options Tab Painted Coverage Area Overlap Coverage Area Boundary On Screen Guidance • Points – markers for established points: •... -
Page 15: Status Bar
MATRIX ® Status/Information Screens Status Bar To display information: The status bar provides information on GNSS status, guidance mode, boundary area, and implement control 1. On vehicle view guidance screen, press status bar icon. status. X GNSS Status – displays information regarding number of satellites in view, satellite quality and receiver ID GNSS Status Guidance Mode... -
Page 16: Transport Mode
MATRIX ® Transport Mode Guidelines Transport mode is recommended for use when traveling A guideline is established by connecting both a marked A between fields as this will improve accuracy in guidance point and a B point. This guideline can be adjusted to the functions. -
Page 17: A+ Nudge Feature
MATRIX ® A+ Nudge Feature NextRow The A+ nudge feature allows the current guideline to be NextRow guidance indicates where the NextRow is located shifted to the vehicle’s current location. based on the working width (section width × number of sections), and provides manual guidance information at user- To adjust the guideline: marked end of a row to the next adjacent row. -
Page 18: Navigation And Guidance Options Tab
MATRIX ® NAVIGATION AND GUIDANCE OPTIONS TAB The Navigation and Guidance Options Tab is always available on the Guidance screen. This tab accesses the menu with the Home button, guidance modes and navigation options. Vehicle View Field View Navigation and Guidance Options Tab Menu Buttons Navigation and guidance options tab menu buttons Home –... -
Page 19: Guidance Modes
MATRIX ® Guidance Modes Last Pass Guidance The guidance modes button is used to change the Last pass guidance offers true last pass navigation. The console guidance mode. will automatically detect the nearest applied area and establish To choose a guidance mode: parallel guideline based on that area. -
Page 20: Application Boundary
MATRIX ® Application Boundary Circle Pivot Guidance Application boundaries establish areas where application is Circle pivot guidance provides guidance around a central location and is not to be applied. Boundaries can be established in that radiates inward or outward based on an initial AB reference all guidance modes. -
Page 21: Delete The Boundary
MATRIX ® Return to Point Return to point provides guidance back to an established point. An arrow directs the vehicle back to the established point. A return point will remain active until deleted. Delete the Boundary To delete the established boundary: Marking a Return Point 1. -
Page 22: Guidance To A Return Point
MATRIX ® Guidance to a Return Point Zoom In/Out To show distance and guidance to the established return point: Zoom in/out is used to adjust the map’s visible area. 1. On vehicle view guidance screen, press NAVIGATION AND GUIDANCE OPTIONS tab to display navigation options. -
Page 23: Pan
MATRIX ® While in Field view guidance, the Pan mode allows the screen to be positioned manually as desired. To enter Pan mode and pan across the screen: 1. On field view guidance screen, press NAVIGATION AND GUIDANCE OPTIONS tab to display navigation options. -
Page 24: Application Mapping & Applied Alert
MATRIX ® APPLICATION MAPPING & APPLIED ALERT Mapping with Work On/Off Switch Application mapping is used to map coverage areas and When installed, the work on/off switch should remain in the “off” flash and sound alerts when entering and existing position for all setup options. -
Page 25: Chapter 3 - Configuration
MATRIX ® CHAPTER 3 – CONFIGURATION Used to select, setup and manage the machine configurations, field configurations and GNSS receiver. Machine Configuration Machine configuration menu is used to create and manage up to five (5) individual machine profiles representing the configuration of the console on a particular vehicle/equipment setup. -
Page 26: Lightbar Spacing
MATRIX ® Lightbar Spacing X Lateral implement offset distance – used to define the lateral distance from the centre line of the machine to the Lightbar spacing is used to set the distance away from the centre of the implement. Range is 0.0 to +/-16.4 feet / 0.0 to guideline or vehicle each guidance screen lightbar box +/-5.0 metres. -
Page 27: Not Acceptable Gnss Notification
MATRIX ® NOTE: When using the Matrix 430 in Europe, always include GLONASS. Use SBAS (EGNOS) where applicable. Not Acceptable GNSS Notification If GNSS receiver is set to use SBAS and SBAS signal quality is not acceptable, or if GPS quality is not acceptable, a warning will be shown. -
Page 28: Chapter 4 - Job Data
MATRIX ® CHAPTER 4 – JOB DATA One of up to five (5) jobs may be selected to view job information. The current job, displayed/active on the Guidance screen, may be exported as a report. Job Data Overview Delete Job Data Job information includes: To delete job information from the current job number: W Active Job Number... -
Page 29: Reports
MATRIX ® Reports Memory Notifications To save reports to a USB drive: The console has a limited amount of storage space to retain job information. If job data files become too large, usually due to 1. Press DATA button extremely large amounts of applied area data, a memory almost 2. -
Page 30: Chapter 5 - Console
MATRIX ® CHAPTER 5 – CONSOLE The Console setup is used to configure the display and cultural settings. 1. From the Home screen, press CONSOLE button 2. Select from: X LCD Brightness – used to adjust the brightness of the console display X Colour Scheme –... - Page 31 Please contact TeeJet Technologies with any questions or for assistance. T E E J E T T E C H N O L O G I E S I S N O T R E S P O N S I B L E F O R D A M A G E D U E T O I M P R O P E R D O W N L O A D A N D I N S TA L L AT I O N O F A N U P D AT E www.teejet.com...
- Page 32 MATRIX ® U S E R M A N U A L www.teejet.com 98-05332-EN A4/LT R4 English-International © TeeJet Technologies 2023...
