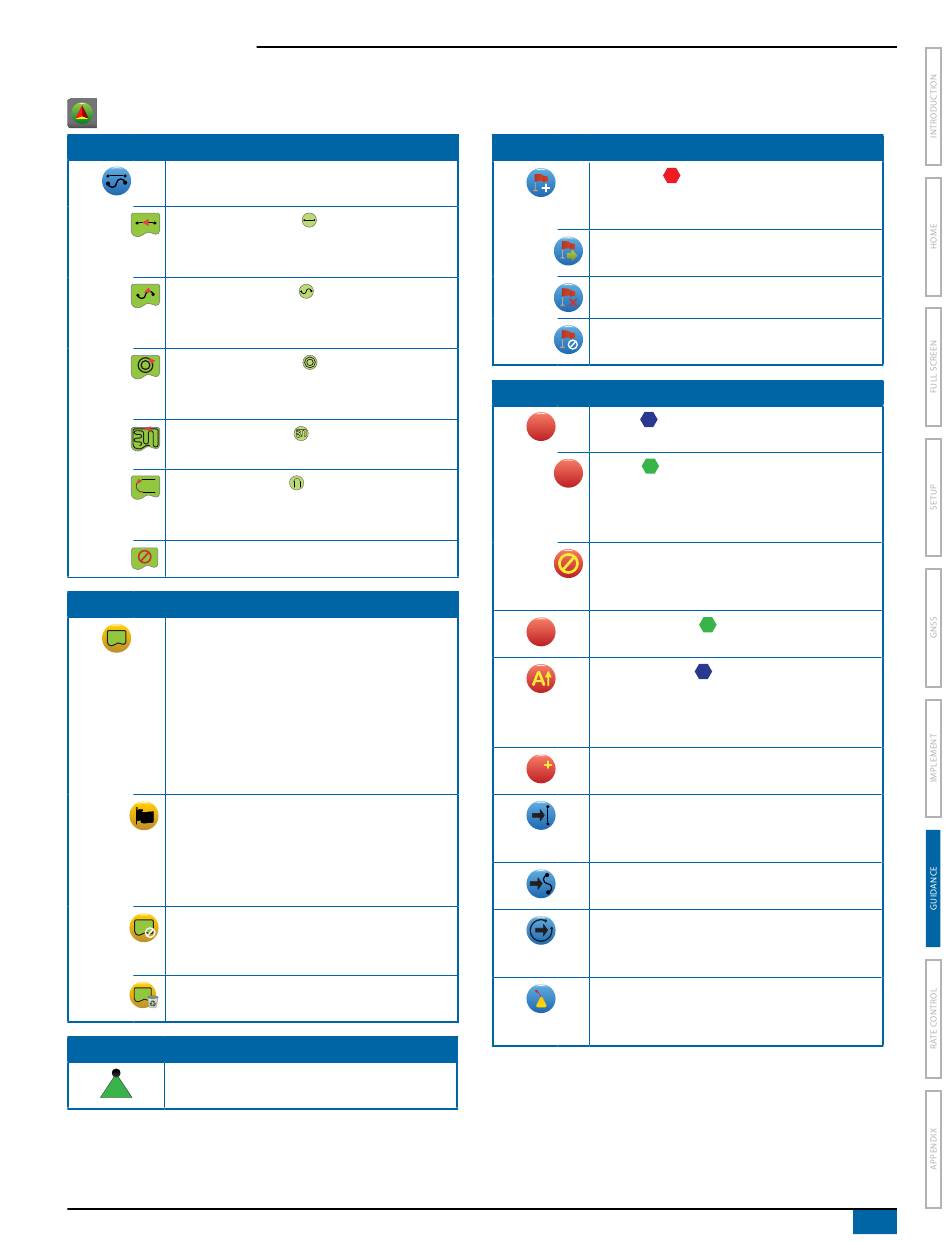

Navigation Screens Options

Navigation and Guidance Options
Guidance Mode
Guidance Mode – access to guidance mode
options
Straight AB Guidance
line guidance based on A and B reference
points
Curved AB Guidance
along curved lines based on an initial AB
reference line
Circle Pivot Guidance
around a central location that radiates inward or
outward based on an initial AB reference line
Last Pass Guidance
navigation
NextRow Guidance
NextRow is located, and provides guidance at
row ends to the next adjacent row
No Guidance – turns off guidance
Boundaries
Mark Boundary – establishes application area
and determines no-apply zones. While creating
an external or initial boundary, the boundary
line will be to the exterior of the outer-most
section. While creating an interior or additional
boundary, the boundary line will be to the
interior of the inner-most section.
Grayed = GNSS is unavailable.
Finish Boundary – finalizes boundary process.
Boundaries can also be closed by travelling
to within a swath width of the starting point.
Grayed = minimum distance has not been
travelled.
Cancel Boundary – cancels the new mark
boundary process. Reverts to previous
boundary (when established).
Delete Boundary – deletes all established
boundaries from current job.
BoomPilot
Toggles the Automatic Sprayer Control (ASC)
on or off. Grayed = GNSS is unavailable.
Matrix® Pro 570GS ● Matrix® Pro 840GS
– provides straight-
– provides guidance
– provides guidance
– offers true last-pass
– indicates where the
Return to Point
Mark Point
the vehicle location. Grayed = GNSS is
unavailable.
Return to Point Guidance – provides distance
and guidance back to an established point.
Delete Point – deletes the Marked Point.
Cancel Guidance – hides the distance and
guidance back to the Marked Point.
Guidelines
– marks the first point of the
Mark A
A
guideline.
Mark B – marks the end point of the
B
guideline.
Grayed = minimum distance has not been
travelled.
Cancel Mark A – cancels the Mark A process.
Reverts to previous AB guideline (when
established).
NextRow Mark B
B
the row.
Azimuth Degree
guideline measured by degrees clockwise from
a north-south baseline. North = 0, East = 90,
South = 180, West = 270.
A+ Nudge – shifts the existing guideline to the
A
vehicle's current position.
Next Straight Guideline – shows the next
straight AB or Azimuth Degree guideline saved
in the current job.
Next Curved AB Guideline – shows the next
Curved AB guideline saved in the current job.
Next Circle Pivot Guideline – shows the next
Circle Pivot AB guideline saved in the current
job.
Curved Lookahead – indicates where the
current steering will take the vehicle using a
'pointer' as guidance.
– establishes a point at
– marks the end point of
– establishes a straight
