Matrix® Pro 570GS ● Matrix® Pro 840GS
Spreader – OEM
A virtual line is created in line with the delivery disks from which
the application section or sections can vary in length and can be at
different distances from the line.

Single Section

No section control is available on the system.
Spreader
1. Select implement type on Implement screen.
2. Press Implement Type NEXT PAGE arrow
3. Select from:
►Setup Type – used to select
►Antenna to Disks Distance – used to define the distance from
the GNSS antenna to the disks or dispersal mechanism
►Lateral Implement Offset Direction – used to select the lateral
direction from the center line of the machine to the center of
the implement while facing in the machine's forward direction
►Lateral Implement Offset Distance – used to define the lateral
distance from the center line of the machine to the center of
the implement
►Start Distance – used to set the start distance when exiting an
applied area (consult spreader manufacturer for value)
►Stop Distance – used to set the stop distance when entering
an applied area (consult spreader manufacturer for value)
NOTE: Consult spreader manufacturer for start and stop
distances.
4. Press RETURN arrow
or CONFIGURATION side tab
Configuration screen.

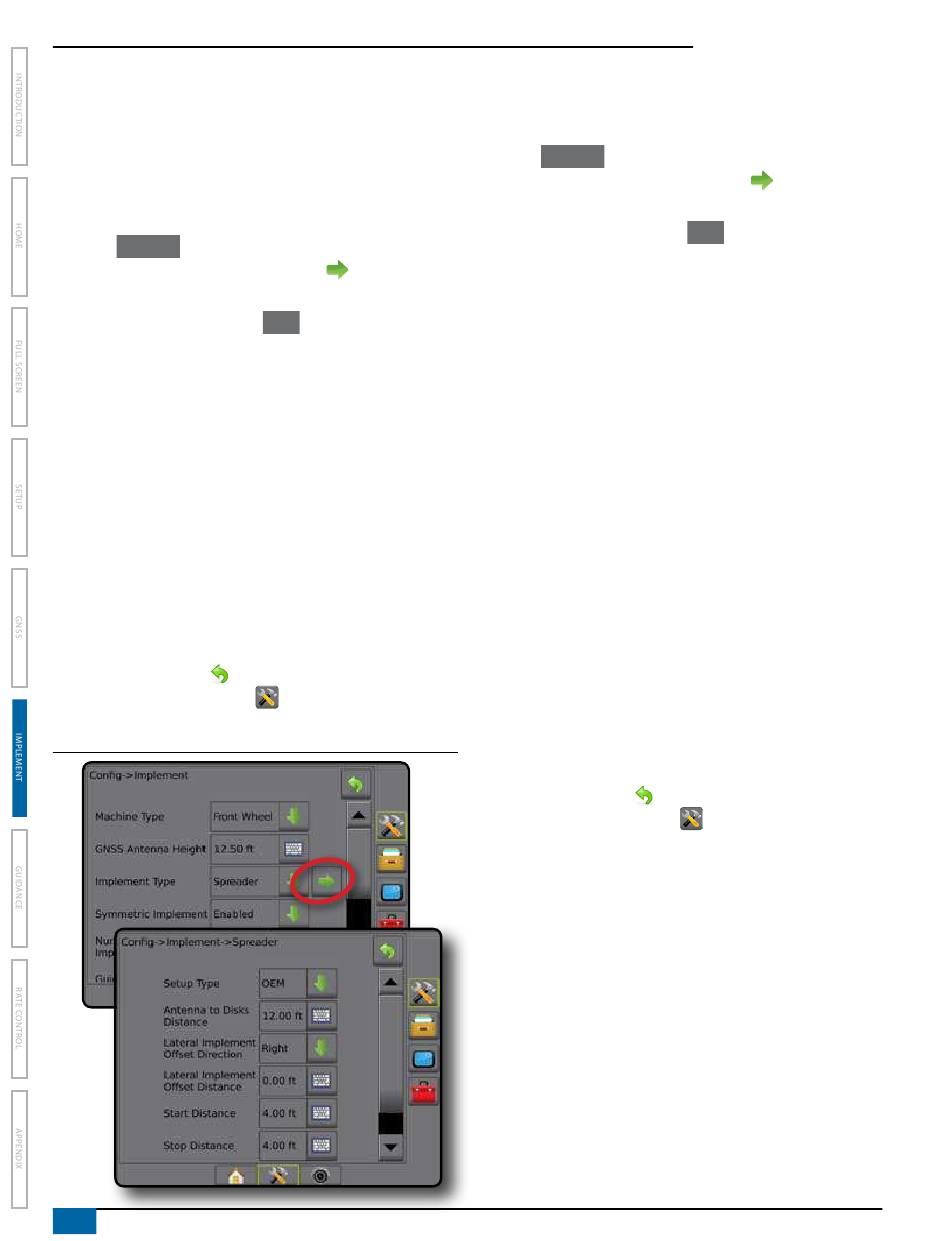

Figure 6-16: Single Section
44
www.teejet.com
.
spreader type
OEM
to return to the Implement screen
to return to the main

Multiple Sections

Section control is available (SmartCable, Section Driver Module
(SDM), or Switch Function Module (SFM) or ISOBUS).
Spreader
1. Select implement type on Implement screen.
2. Press Implement Type NEXT PAGE arrow
3. Select from:
►Setup Type – used to select
►Antenna to Disks Distance – used to define the distance from
the GNSS antenna to the disks or dispersal mechanism
►Lateral Implement Offset Direction – used to select the lateral
direction from the center line of the machine to the center of
the implement while facing in the machine's forward direction
►Lateral Implement Offset Distance – used to define the lateral
distance from the center line of the machine to the center of
the implement
►Start Distance – used to set the start distance when exiting an
applied area (consult spreader manufacturer for value)
►Stop Distance – used to set the stop distance when entering
an applied area (consult spreader manufacturer for value)
NOTE: Consult spreader manufacturer for start and stop
distances.
►Section Start Offsets – used to set the offset distance from
Section 1 to the leading edge of each section. Section 1 is
always 0. All other sections can be different distances.
►Section Stop Offsets – used to set the offset distance from
Section 1 to the trailing edge of each section. Each section
can be a different distance.
NOTE: Consult spreader manufacturer for section start and
stop offset values. Sections are numbered from left to right
while facing in the machine's forward direction.
4. Press RETURN arrow
or CONFIGURATION side tab
Configuration screen.
.
spreader type
OEM
to return to the Implement screen
to return to the main
