Matrix® Pro 570GS ● Matrix® Pro 840GS

Matrix Pro 840GS Console

The Matrix Pro 840GS is designed to provide years of service under typical agricultural operating conditions. A tight fitting enclosure,
combined with rubber covers for all connectors mean that typical dusty environments will not cause operational problems. While occasional
splashing of water will not damage the unit, the Matrix Pro 840GS is not designed for direct exposure to rain. Take care not to operate the
Matrix Pro GS in wet conditions.

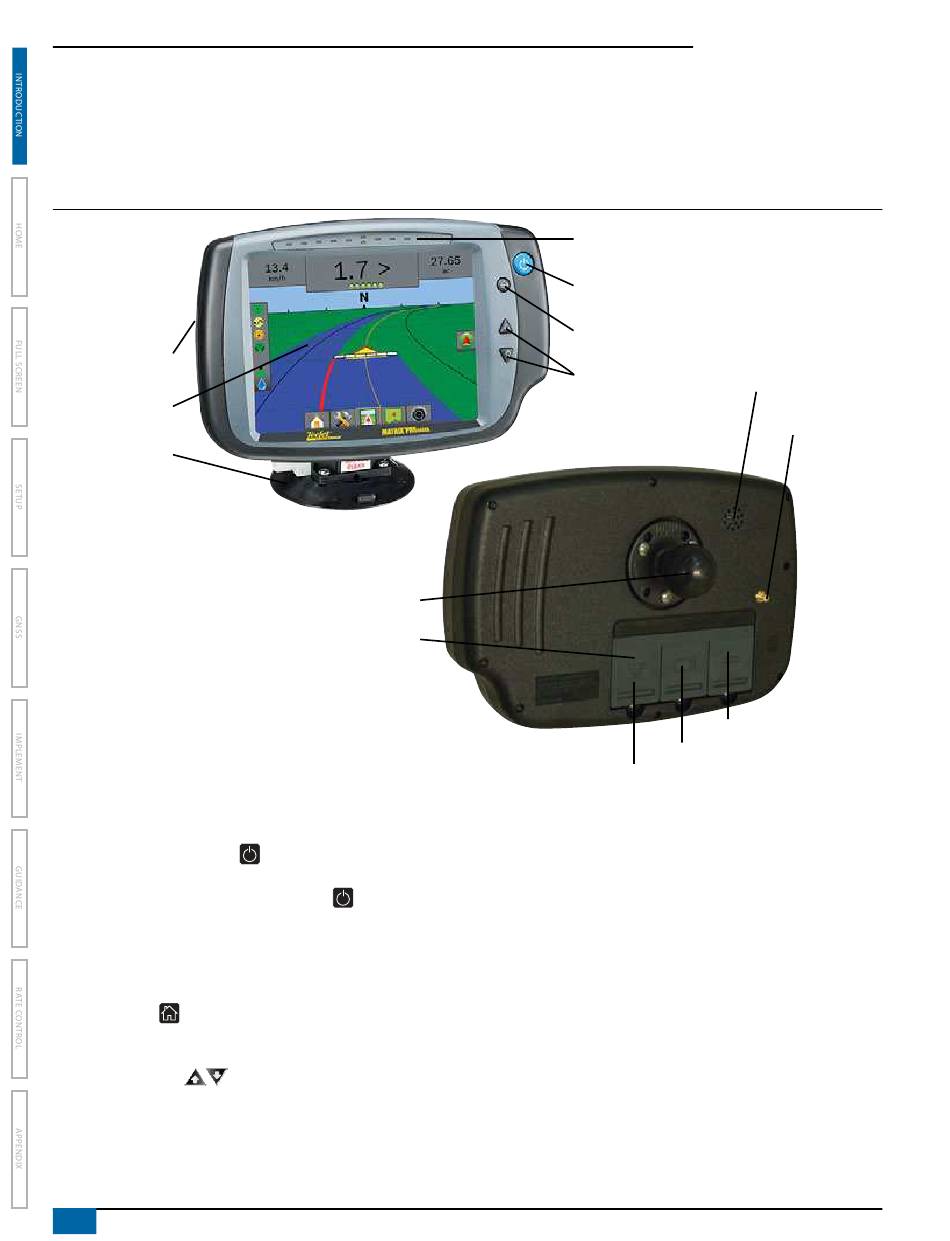

Figure 1-2: Matrix Pro 840GS Console Front and Back
USB port
with rubber cover
Bright touch screen
Standard RAM bracket
(assembly required)

Buttons

Power On/Off
On – Press the POWER button
power up, the Matrix Pro GS will begin its start up sequence.
Off – Press and briefly hold the POWER button
confirmation screen acknowledges shut down mode.
WARNING! Wait 10 seconds before restarting the console.
Home (Matrix Pro 840GS only)
The Home button provides a shortcut to the Home screen.
Up/Down (Matrix Pro 840GS only)
The Up/Down buttons
adjust the vehicle's view or
perspective to the horizon from vehicle view to bird's eye view in
Vehicle View and Field View Guidance.
2
www.teejet.com
Integrated RAM mount
(assembly required)
Rubber connector
covers
to power on the console. Upon
until a
Built in lightbar
Power button
Home button
Zoom in/out buttons
Power connection

Additional Information

All changes are saved automatically.
The console needs to be cycled off and back on when changing or
attaching equipment to the Matrix Pro GS system.
Start Up Sequence
The console takes approximately two minutes to power up. During
this time a series of screens will be displayed, LEDs will power on
and off, and brightness levels will fluctuate. Once the power up
sequence has completed, the Home screen will appear.
Recommended Antenna Installation
The GNSS antenna should be mounted as far forward as possible
on top of the cab on a metal surface of at least 4 in / 10 cm square.
Speaker
GPS antenna
connection
Speed signal connection
Camera connection
