Matrix® Pro 570GS ● Matrix® Pro 840GS

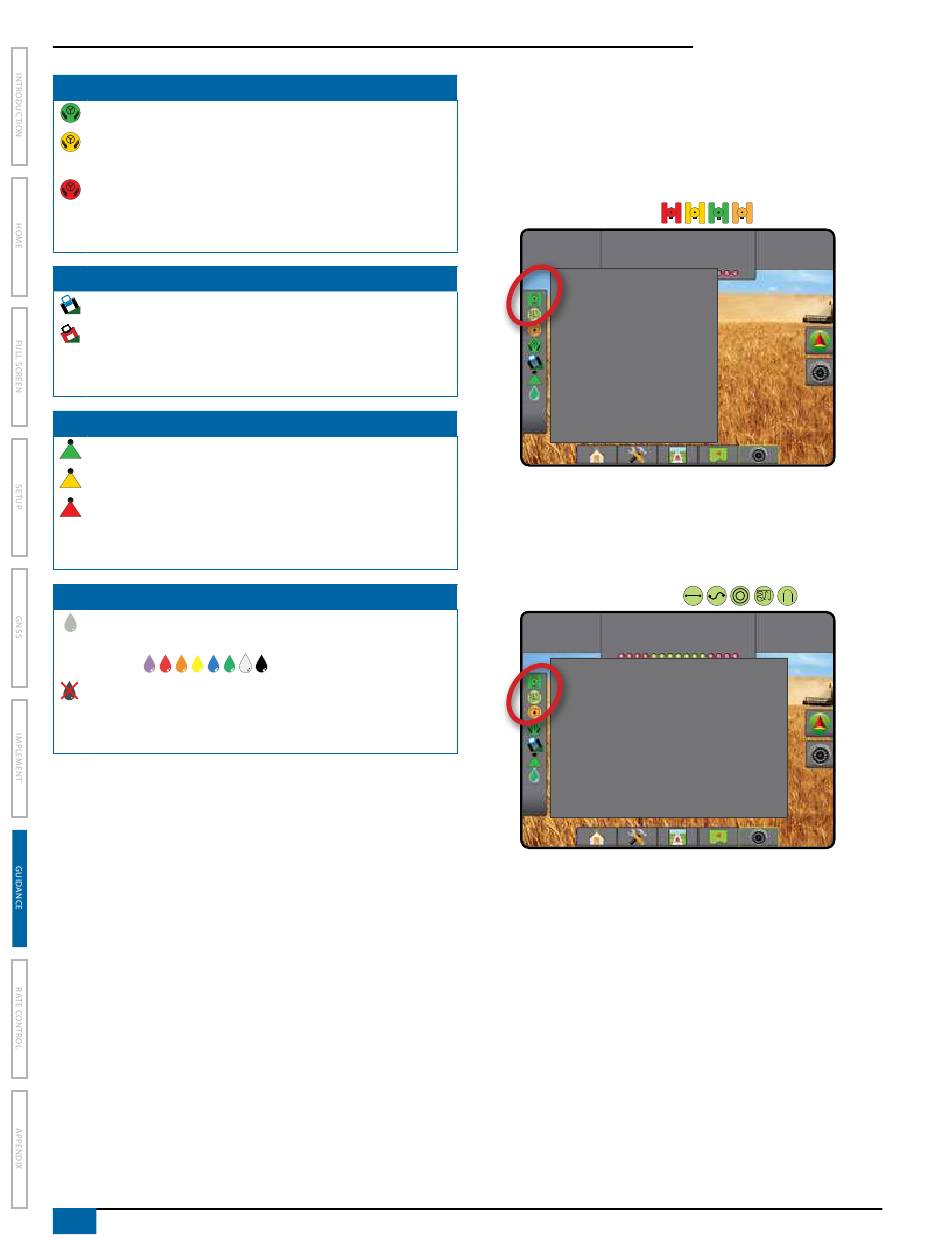

Assisted/Auto Steering Status
Green = engaged, actively steering
Yellow = enabled, all conditions have been met to allow for
assisted/auto steering
Red = disabled, all conditions have not been met to allow for
assisted/auto steering
No Icon = no assisted/auto steering system installed
Tilt Correction Status
Colored = engaged, actively applying tilt correction
Red = disabled
No Icon = no tilt gyro module installed on system, or tilt is
associated with assisted/auto steering system
BoomPilot Status
Green = automatic
Yellow = all on
Red = off/manual
No Icon = single section (no SmartCable or SDM installed
on system)
Droplet/Pressure Status
Colored = engaged. The color of the droplet is directly
associated with the current droplet size. Color options
include:
Crossed Out = disabled
No Icon = no Pressure Sensor Interface Kit installed, no
pressure sensor monitor on the DCM
60
www.teejet.com
.

Status/Information Screens

GNSS Status
GNSS Status displays information regarding current GNSS status,
including data rates, number of satellites in view, HDOP and PRN
status, receiver and version, satellite quality and ID, and UTM zone.
1. Press GNSS STATUS icon
27.00
Mark A
ac
Status: Good GNSS
Baud Rate: 115200
GGA Rate: 10 Hz
VTG Rate: 10 Hz
TCP Rate: 10 HZ
Number of Satellites: 8
HDOP: 1
PRN: 138
GGA Quality: 2
Receiver: 7
Receiver Version: 010201
UTM Zone: 11
Model: LXGMTS
Guidance Mode Status
Guidance Mode Status displays information regarding the pattern
of guidance, the name of the current guideline, and how many
guidelines are saved in the console.
1. Press GUIDANCE MODE icon
27.00 Mark A
ac
Guidance Pattern: Straight AB Guidance
Guideline Name: Stream Edge
Total Number of Guidelines: 4
.
10.0
mph
.
10.0
mph
