Current Tip

Current Tip shows the active tip for determining current droplet
size information. Tips must be preset to be available for current tip
selection.
1. Press desired tip.
Selected tip will be shown:
◄The information box on the Implement screen
◄The Droplet/Pressure Status display from the status bar on
the guidance screens

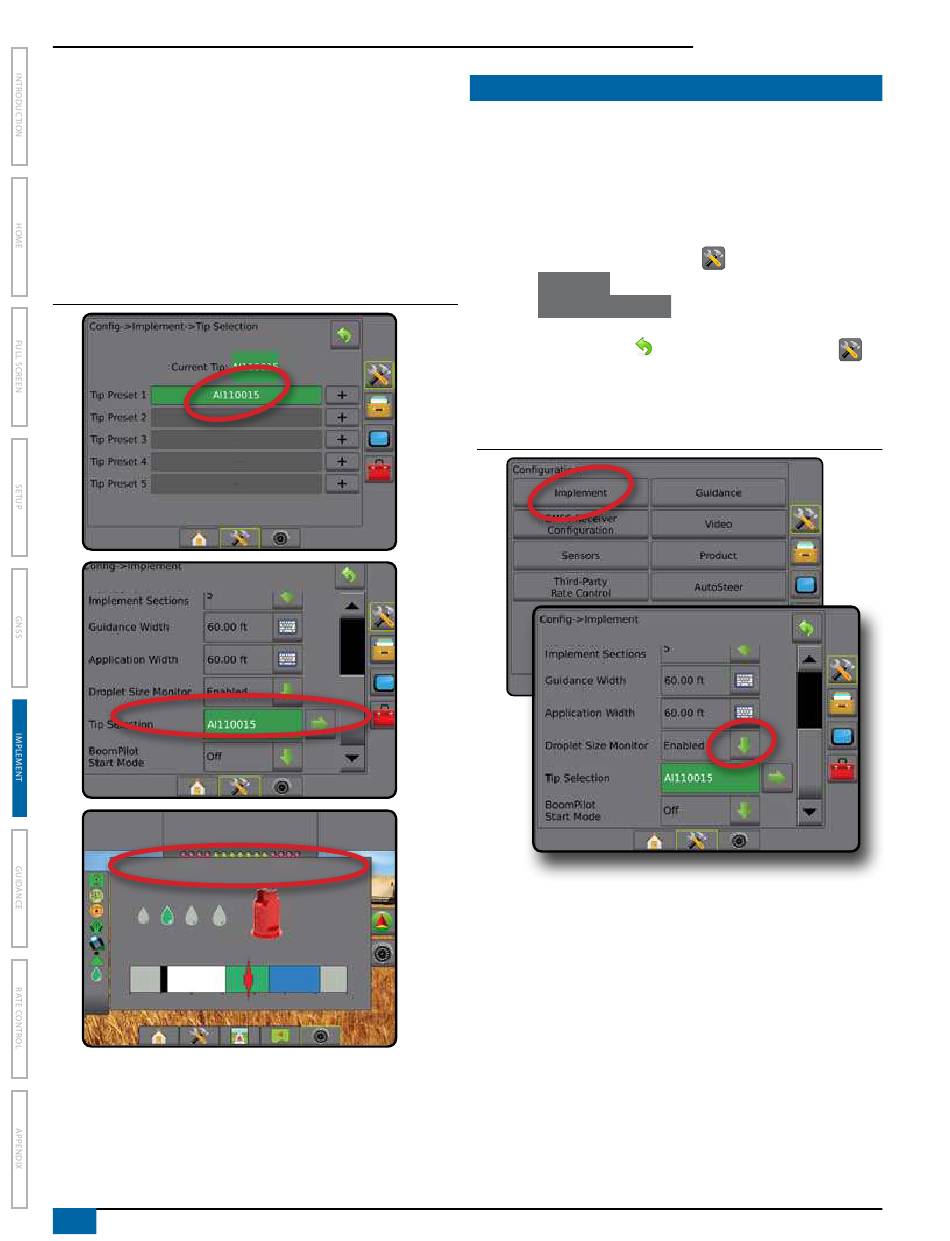

Figure 6-32: Current Tip
Mark A
VC
AIXR TeeJet®
Very Coarse
0
15
30
45
52
www.teejet.com
55
psi
AIXR11004
55
psi
60
75
90
psi

DROPLET SIZE MONITOR

When the system includes a Pressure Sensor Interface Kit (PSIK),
Droplet Size Monitor can be enabled/disabled. The DSM then
becomes available on the operation screens.

Setup

Enable/Disable DSM

1. Press CONFIGURATION side tab
2. Press
.
Implement
3. Press
Droplet Size Monitor
4. Select if droplet size monitor is enabled or disabled.
5. Press RETURN arrow
return to the main Configuration screen.
NOTE: When Droplet Size Monitor is disabled, the Droplet/Pressure
Status is not available on the guidance screen status bar.
Figure 6-33: Droplet Size Monitor
.
.
or CONFIGURATION side tab
