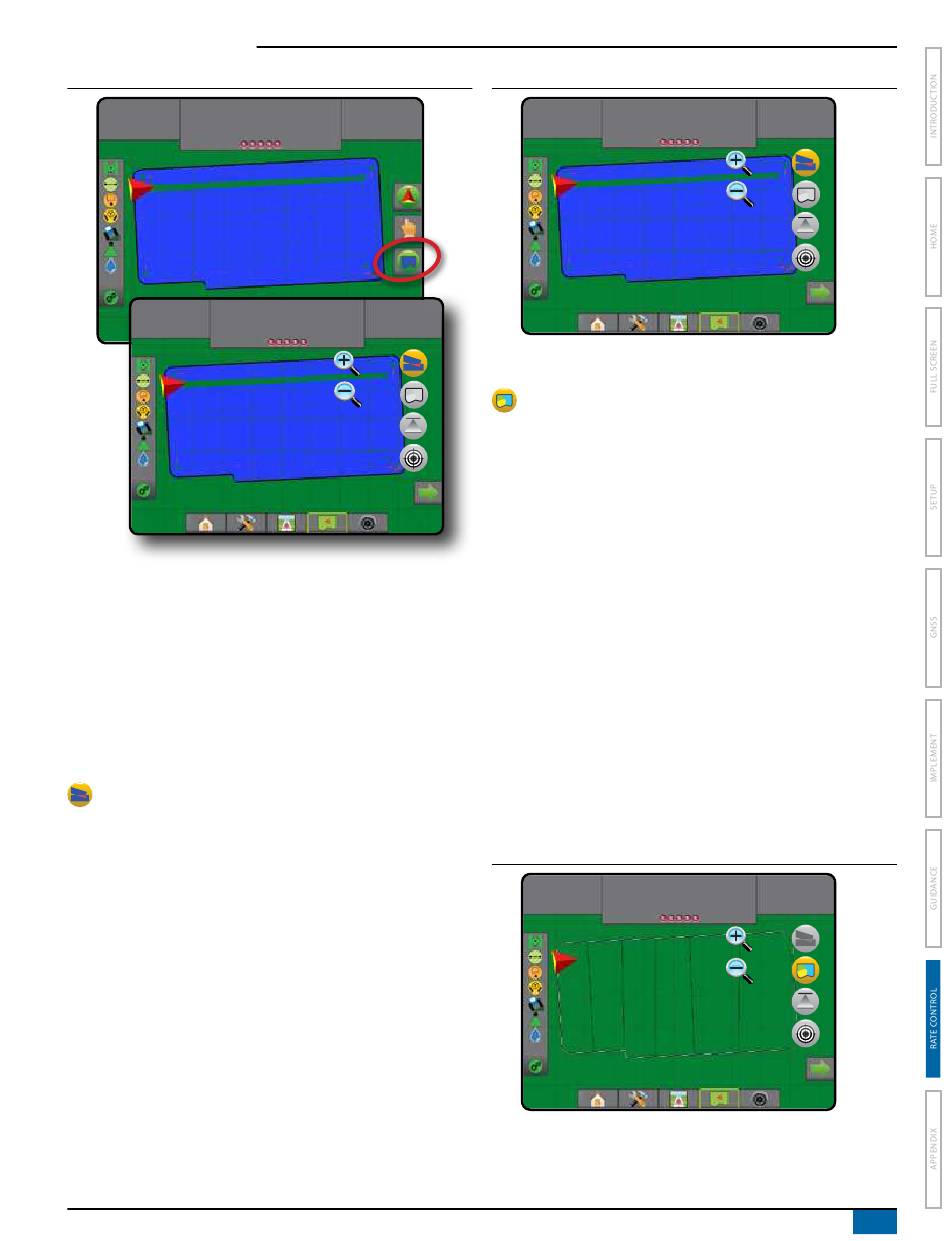

Figure 8-6: Coverage Map
27.00
Mark A
ac
27.00
ac

Duplicating and Transferring Maps

Maps are stored in the job data. Using Data - > Job Data - > Manage,
job data containing maps can be duplicated, or transferred to
Fieldware Link so the maps can be opened, viewed, edited, and
printed, and transferred back to the console. See "Job Data" in the
System Setup chapter.
Using Data - > Reports, reports in multiple formats can be generated
that contain data and any maps from the job.

Coverage Map

Coverage Map showing areas covered by the implement. DCM
does not require product to be applied. ISOBUS does require
product to be applied.

On Screen Mapping

• Coverage Area – illustrates applied area and overlap:
◄Blue – one application
◄Red – two or more applications
Matrix® Pro 570GS ● Matrix® Pro 840GS
10.0
mph
10.0
Mark A
mph
Figure 8-7: Coverage Map
27.00
Mark A
ac

Prescription Map

Prescription Map is a pre-loaded map that provides information
to the rate controller for use in applying product. Prescription
Maps contain geo-referenced product rate information. The
Matrix Pro GS can import job data containing Prescription Maps for use
with variable-rate application (VRA) using compatible rate controllers.
On Screen Mapping
• Zone lines:
◄Black when approaching the application zone.
◄White when within the application zone.
◄ Other zones having the same rate will also be shown in
white.
• Coverage Area – illustrates different prescription rate zones:
◄ User Selected – zone colors are selected when establishing
the prescription map.
With Fieldware Link (v5.01 or later), users can import VRA jobs
created in Fieldware Link, as well as export job data from the console,
edit the included maps to create Target Rate or Prescription Maps, and
transfer back to the console for job use.
NOTE: Advanced Job Mode is required for variable rate applications.
See Options (Job Mode) in the System Setup chapter.
Figure 8-8: Prescription Map
27.00
Mark A
ac
10.0
mph
10.0
mph
83
98-05273-ENUS R6
