◄ Automatic Calibration  – guides the operator through
the calibration process for the active vehicle. The
calibration steps teach the FieldPilot Pro system or
UniPilot Pro system the characteristics of the vehicle
and the steps are critical to achieve optimal control
performance.
◄ Adjust – after the vehicle has been calibrated, it should
perform adequately for most normal field operations.
However in some situations, it may be necessary to
adjust the steering performance to take into account field
conditions, implement selection, traveling speed, etc. The
Vehicle Adjust screen enables the operator to adjust the
vehicle steering performance to match these changing
conditions.
– Manual Disengage  – adjust the limit at which
FieldPilot Pro or UniPilot Pro is disengaged when the
steering wheel is being turned manually.
◄ Delete – allows the operator to delete a vehicle profile that
is no longer needed. The active vehicle profile cannot be
deleted.
►Select QI Values – allows the user to configure the minimum
GNSS position quality (precision level) requirements to allow
FieldPilot Pro or UniPilot Pro to be activated and remain
engaged
►Maximum DOP – Maximum DOP (Dilution of Precision) sets
the maximum value of the overall quality of a GNSS position
based on the satellite geometry that is used to calculate it.
A value of 1 to 2 is excellent, 2-5 is good, 5-10 is moderate,
10-20 is fair, and anything over 20 is poor.
Assisted/automatic steering should be performed when the
DOP is below 4 for best results.
►Transport Mode – When enabled, all AutoSteer functions are
disabled and cannot be activated.
►Service Mode – When enabled, WiFi will be available through
the next power cycle so a technician can connect to the
SCM Pro directly for service tasks.
►Operator Presence – Set Operator Presence Switch response
– Enable - FieldPilot Pro or UniPilot Pro not possible with
switch OPEN. Recommended setting regardless of
presence/absence of Operator Presence switch.
– Disable - Operator Presence detection has been
deactivated and will not affect FieldPilot Pro or
UniPilot Pro. This is a critical safety feature that should
only be disabled when instructed by the machine
manufacturer or TeeJet Technologies.
4. Press RETURN arrow
return to the main Configuration screen.
Matrix® Pro 570GS ● Matrix® Pro 840GS
or CONFIGURATION side tab

Active Vehicle

Active Vehicle is highlighted with a set of asterisks (*). This is the
vehicle profile the FieldPilot Pro system or UniPilot Pro system is
currently programmed to use.

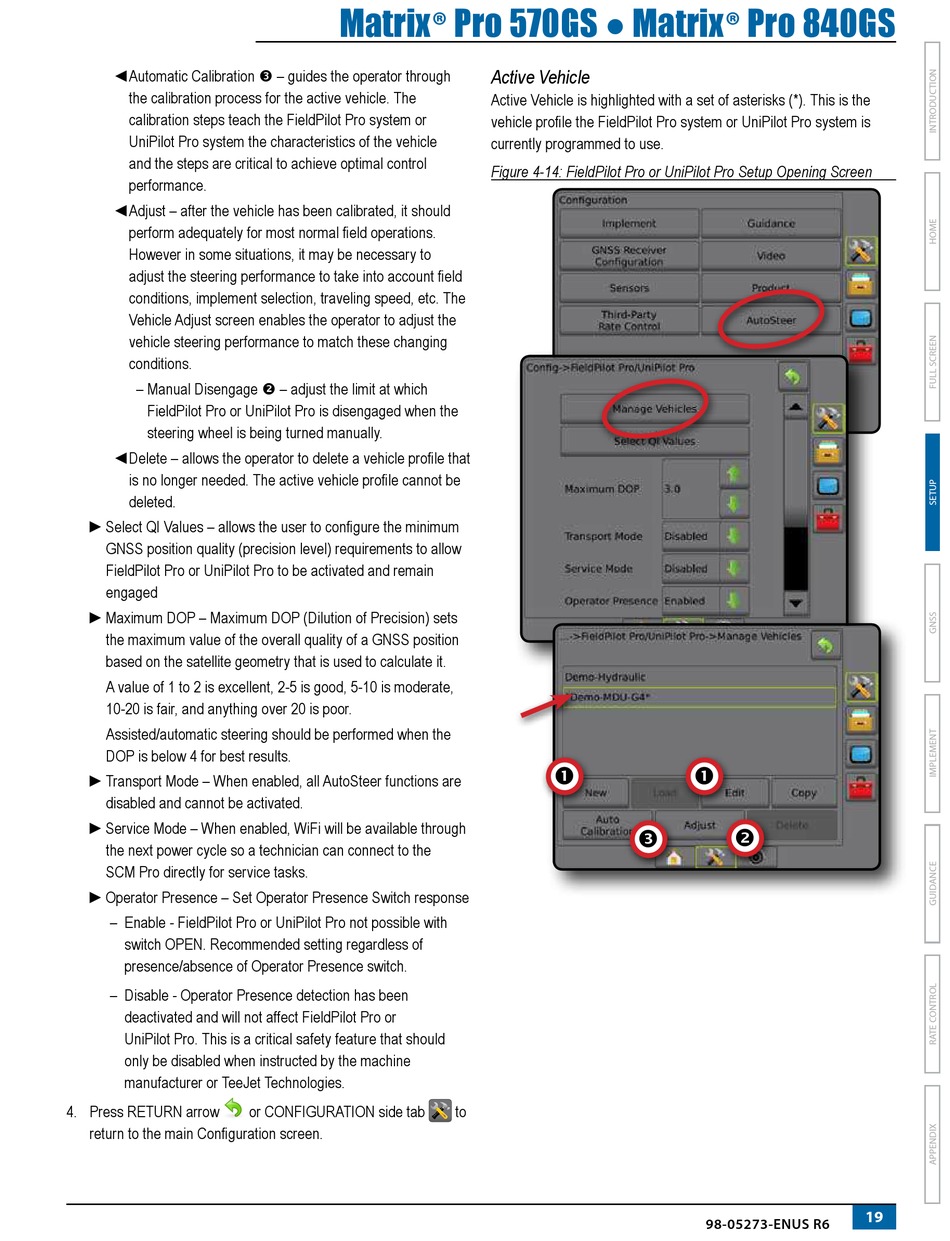

Figure 4-14: FieldPilot Pro or UniPilot Pro Setup Opening Screen

to



98-05273-ENUS R6
