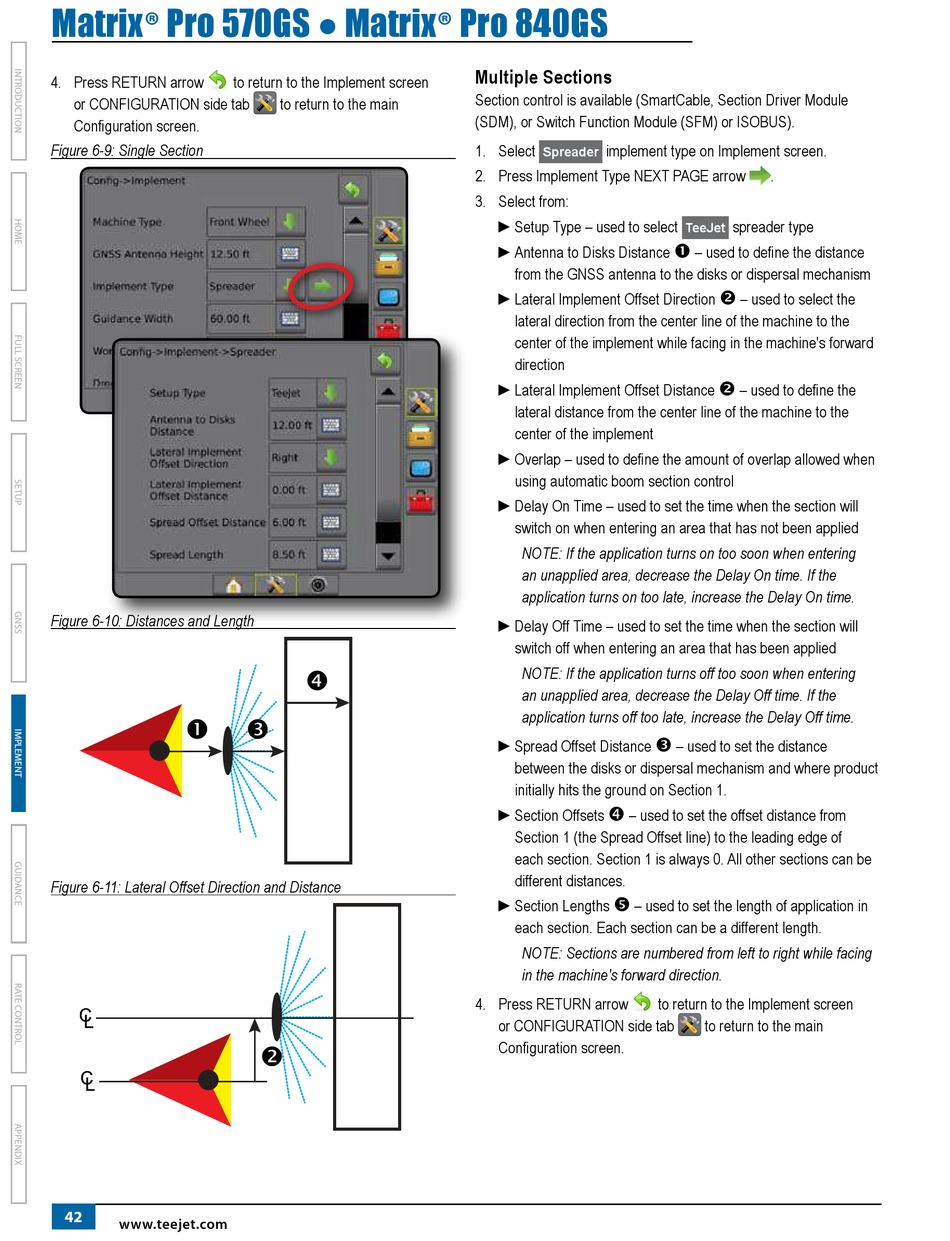

Matrix® Pro 570GS ● Matrix® Pro 840GS
4. Press RETURN arrow
or CONFIGURATION side tab
Configuration screen.
Figure 6-9: Single Section
Figure 6-10: Distances and Length
Figure 6-11: Lateral Offset Direction and Distance
42
www.teejet.com
to return to the Implement screen
to return to the main

Multiple Sections

Section control is available (SmartCable, Section Driver Module
(SDM), or Switch Function Module (SFM) or ISOBUS).
Spreader
1. Select implement type on Implement screen.
2. Press Implement Type NEXT PAGE arrow
3. Select from:
►Setup Type – used to select
►Antenna to Disks Distance
from the GNSS antenna to the disks or dispersal mechanism
►Lateral Implement Offset Direction
lateral direction from the center line of the machine to the
center of the implement while facing in the machine's forward
direction
►Lateral Implement Offset Distance
lateral distance from the center line of the machine to the
center of the implement
►Overlap – used to define the amount of overlap allowed when
using automatic boom section control
►Delay On Time – used to set the time when the section will
switch on when entering an area that has not been applied
NOTE: If the application turns on too soon when entering
an unapplied area, decrease the Delay On time. If the
application turns on too late, increase the Delay On time.
►Delay Off Time – used to set the time when the section will
switch off when entering an area that has been applied
NOTE: If the application turns off too soon when entering
an unapplied area, decrease the Delay Off time. If the
application turns off too late, increase the Delay Off time.
►Spread Offset Distance 
between the disks or dispersal mechanism and where product
initially hits the ground on Section 1.
►Section Offsets 
– used to set the offset distance from
Section 1 (the Spread Offset line) to the leading edge of
each section. Section 1 is always 0. All other sections can be
different distances.
►Section Lengths

– used to set the length of application in
each section. Each section can be a different length.
NOTE: Sections are numbered from left to right while facing
in the machine's forward direction.
4. Press RETURN arrow
or CONFIGURATION side tab
Configuration screen.
.
spreader type
TeeJet
 – used to define the distance

– used to select the
 – used to define the
– used to set the distance
to return to the Implement screen
to return to the main
