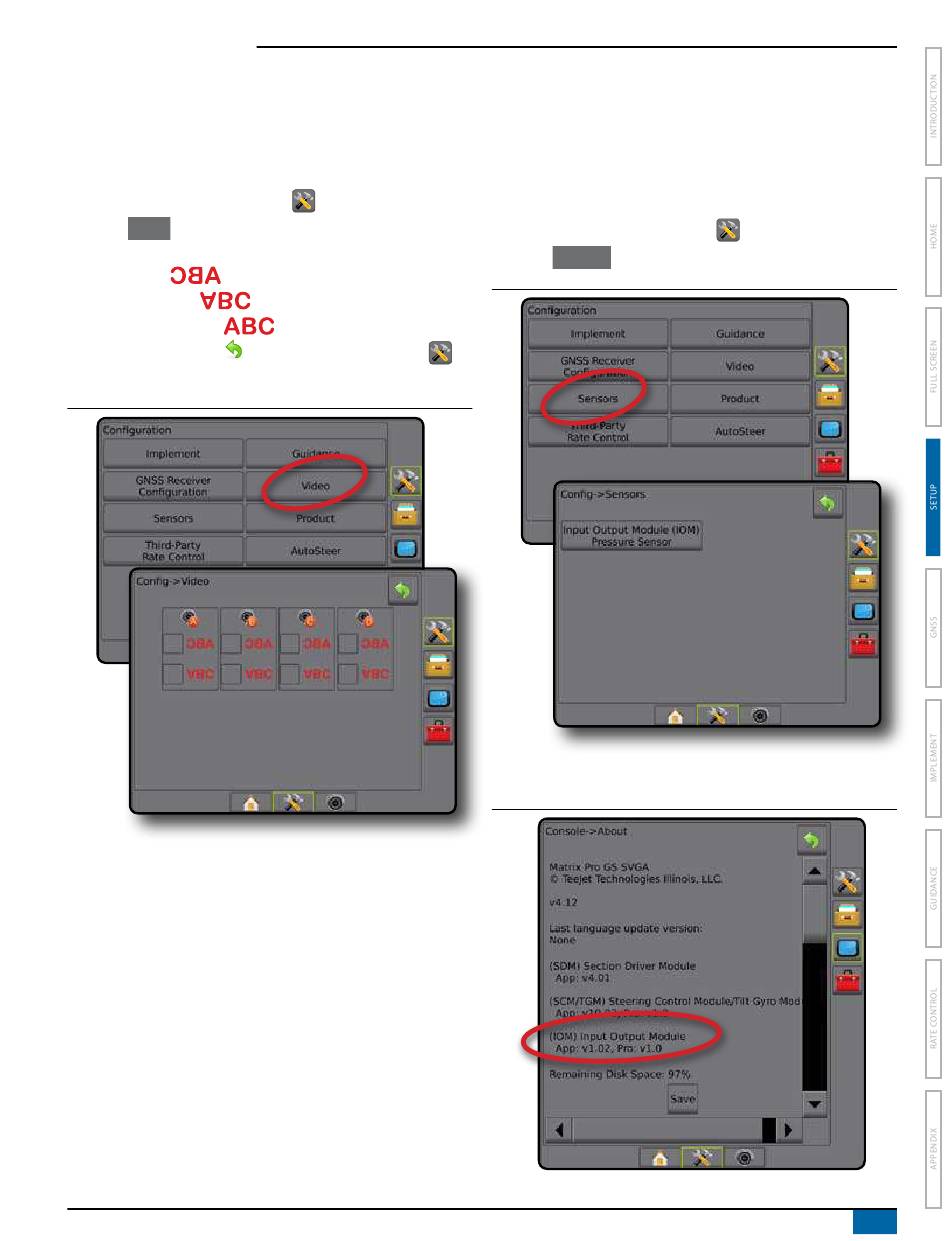

Video

Video Setup is used to set up a single directly connected camera
or individual cameras while using an Eight (8) Channel or Four (4)
Channel Video Selector Module (VSM). Up to 8 cameras can be
configured if a VSM is installed.
1. Press CONFIGURATION side tab
Video
2. Press
.
3. Select the appropriate check box(es):
►Reverse –
►Upside Down –
For normal video view
4. Press RETURN arrow
return to the main Configuration screen.
Figure 4-17: Video with 4 Channel VSM Options

Video Setup Unavailable

If a camera or VSM is not connected, setup options will not be
available.
Matrix® Pro 570GS ● Matrix® Pro 840GS
.
un-check all check boxes.
or CONFIGURATION side tab

Sensors

When a Pressure Sensor Interface Kit (specifically, an Input Output
Module (IOM)) is on the system, options to set up and configure the
sensor will be available.
NOTE: These settings are not affected by use of a Pressure Sensor
on a Dual Control Module.
1. Press CONFIGURATION side tab
2. Press
.
Sensors
Figure 4-18: Sensors
to
The Pressure Sensor Interface Kit is recognized on the Console
About screen as an Input/Output Module (IOM).
Figure 4-19: Input/Output Module
.
21
98-05273-ENUS R6
