Matrix® Pro 570GS ● Matrix® Pro 840GS

NextRow Guidelines

NextRow Guidance indicates where the next row is located
based on the programmed guidance width, and provides
guidance at user-marked row ends to the next adjacent row. When the
operator signals the end of the row, a Straight AB line will be
established in the current row and guidance provided to the NextRow.
When the vehicle is in the NextRow, guidance is turned off.
NOTE: Offset to NextRow will be calculated using the guidance
width: see "Configuration" in the System Setup chapter.
NOTE: NextRow Guidance may not be available depending on
assisted/automatic steering system installed.
To activate NextRow guidelines:
1. Press NAVIGATION AND GUIDANCE OPTIONS tab
display navigation options.
2. At the end of a row (while driving a straight line)
B
press MARK B icon .
◄The end of the row will be marked with a green point
3. Turn toward the next row.
4. Based on that direction turned, guidance will be provided for the
next adjacent row.
◄When the vehicle is in the row, the guideline is removed.
5. Repeat at the end of the next row.
NOTE: The NextRow Guidance feature does not support
skipping rows.

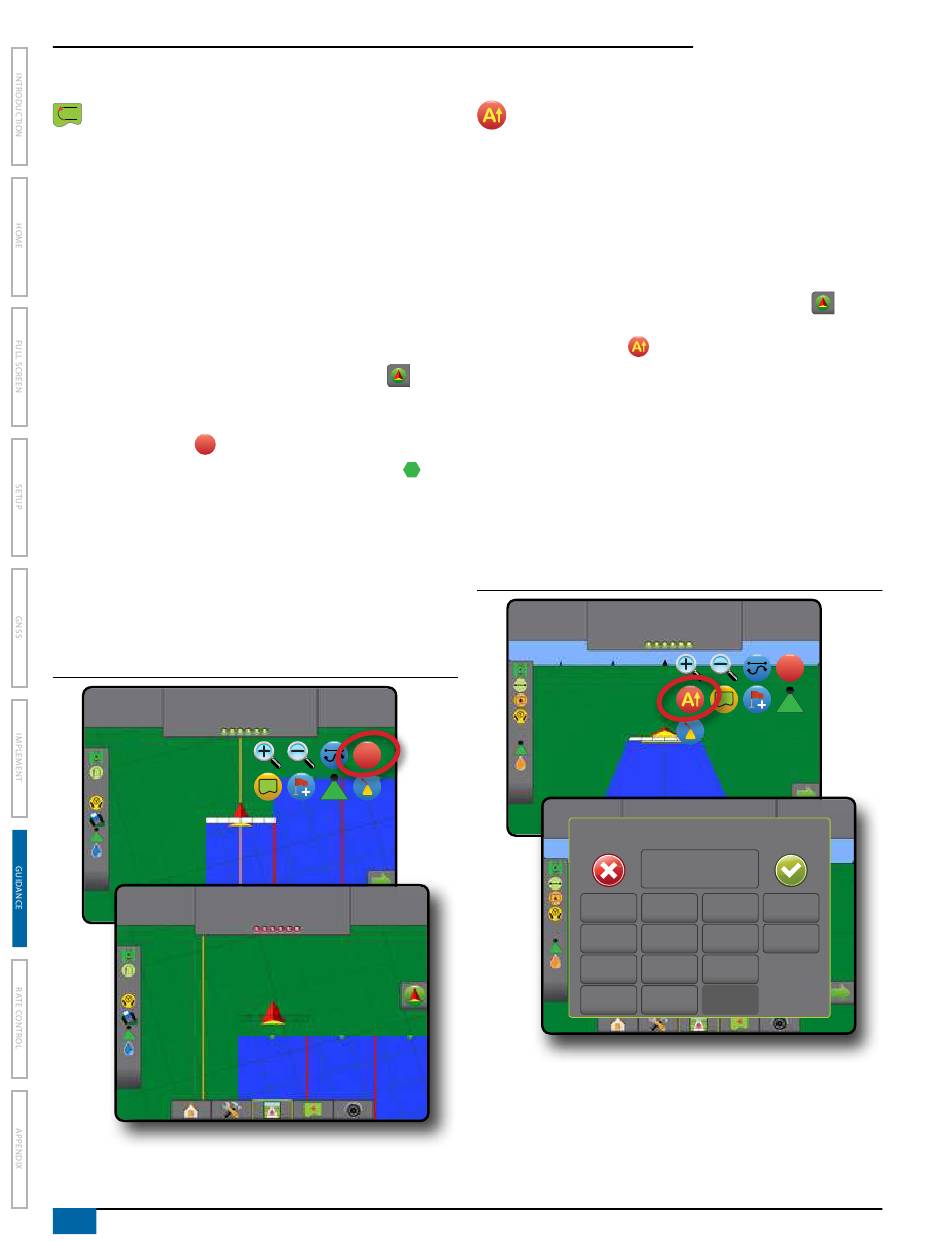

Figure 7-19: Mark End of Row
3:22 PM
End Row
3:28 PM
Turn Now
70
www.teejet.com

Azimuth Degree

An azimuth is defined as a horizontal angle measured
clockwise from a north baseline. When using an azimuth, the
point from which the azimuth originates is the center of an imaginary
circle. North = 0°, East = 90°, South = 180°, West = 270°.
An azimuth degree can be entered to determine the exact
location of the vehicle. When Straight AB Guidance mode is
selected, the azimuth degree can be entered.
To establish an Azimuth Degree guideline:
1. Press NAVIGATION AND GUIDANCE OPTIONS tab
display navigation options.
2. Press AZIMUTH icon
3. Use the entry screen to establish the azimuth degree.
to
4. "Would you like to name this guideline?"
Press:
►Yes – to enter a name and save the guideline
.
►No – to automatically generate a name
The console will begin providing navigation information.
To establish additional azimuth guidelines, follow the same steps as
the initial azimuth guideline.
Figure 7-20: Azimuth Guidance
1:12 PM
7.2
mph
B
7.2
mph
to enter azimuth degree.
Mark A
1:14 PM
0.0
Enter Azimuth (deg)
0
1 2 3
4 5 6
7 8 9
0 . +/-
to
7.2
mph
A
7.2
mph
Clear
<--
