TeeJet Technologies MATRIX PRO GS User Manual page 95

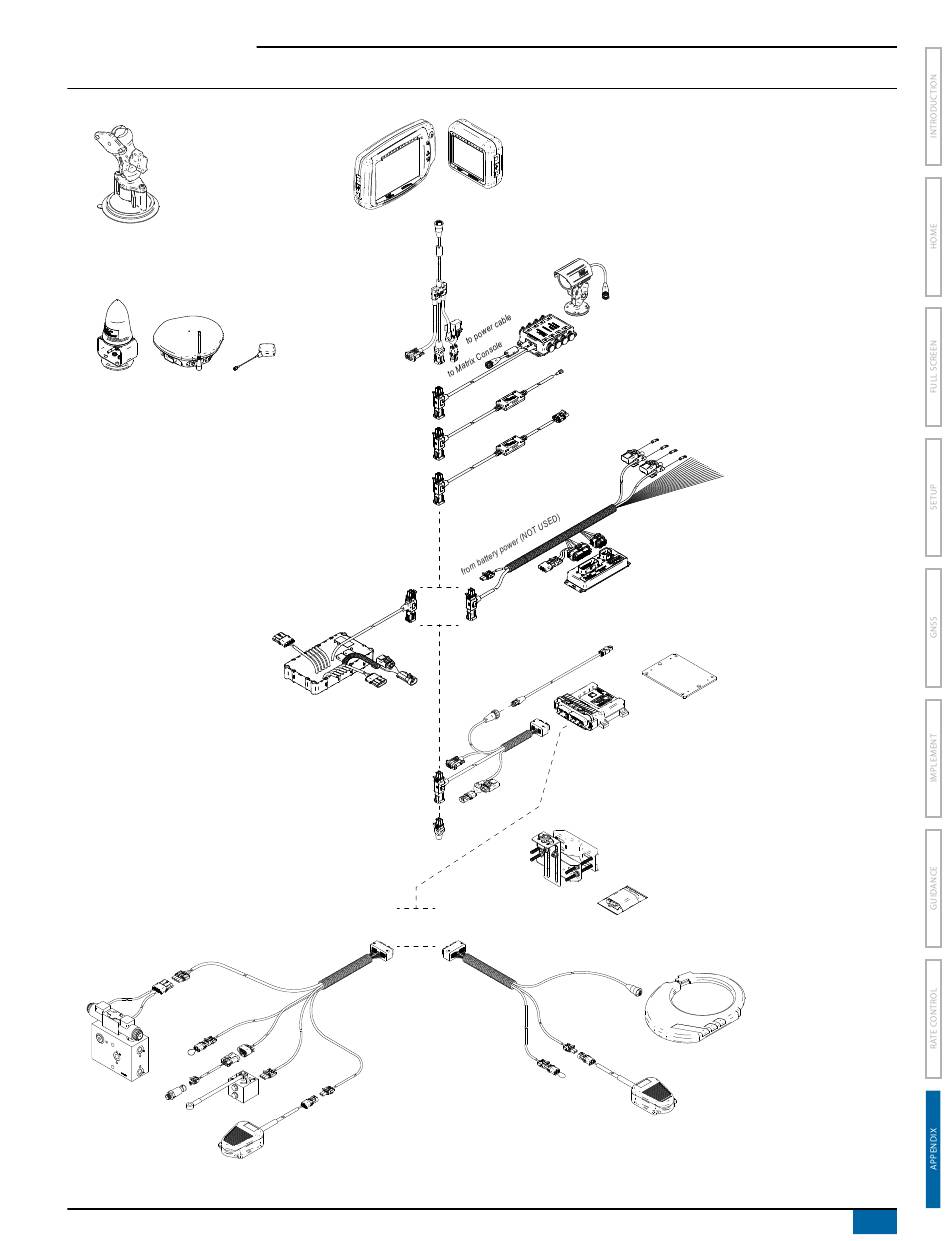

Figure A-2: Matrix Pro GS with FieldPilot Pro or UniPilot Pro Steering System
Kit, RAM Mount w/Suction Cup
90-02349 (Matrix 570)
90-02700 (Matrix 840)
RXA-30 GPS Antenna
GPS GLONASS Antenna
RX510 GPS Receiver / RX610 GPS Receiver
to section control valves
78-08086 - Switch Fuction Module (SFM)
Vehicle Specific Steering Valve
Vehicle Specific
Steering Valve
FieldPilot Pro
to Seat Switch Input
16-50017 -
Pressure Sensor
16-05022 -
Wheel Angle Sensor
Matrix® Pro 570GS ● Matrix® Pro 840GS
Matrix ProGS 840
45-05626
Power/CAN/Data Cable
(included with
FieldPilot, UniPilot
or BoomPilot kits)
to RS-232
OR
to power cable
to section control valves
45-10172 - SCM Pro Harness
45-08101 - Terminator
OR
FieldPilot Pro Harness
32-04059 - Foot Switch
Matrix ProGS 570
TeeJet CAN Options
RealView Camera
Video Selector Module
Reverse Sense Module
(do not use with FieldPilot Pro / UniPilot Pro system)
Droplet Size Monitor (DSM) Pressure Interface Kit
45-05897 - SDM 15 Section Harness
to Status
78-05098 - Section Driver Module (SDM)
Switch
45-05986 - Ethernet Interface RJ5 to Conxall
SCM Pro
78-08097 UniPilot Pro
78-08098 Hydraulic Unlock
78-08095 Hydraulic/RTK Unlock
65-05246 - UniPilot Pro Anti-Rotation
Bracket Kit, Generic
91-05023 - UniPilot Pro Assy. Anti Rotation Pin
45-10166 - UniPilot Pro Harness
91-05023 - UniPilot Pro Electric Steering Device
to Seat Switch Input
32-04020 - Foot Switch
to battery
to section control valves
65-05251 - Bracket SCM Pro Flat
