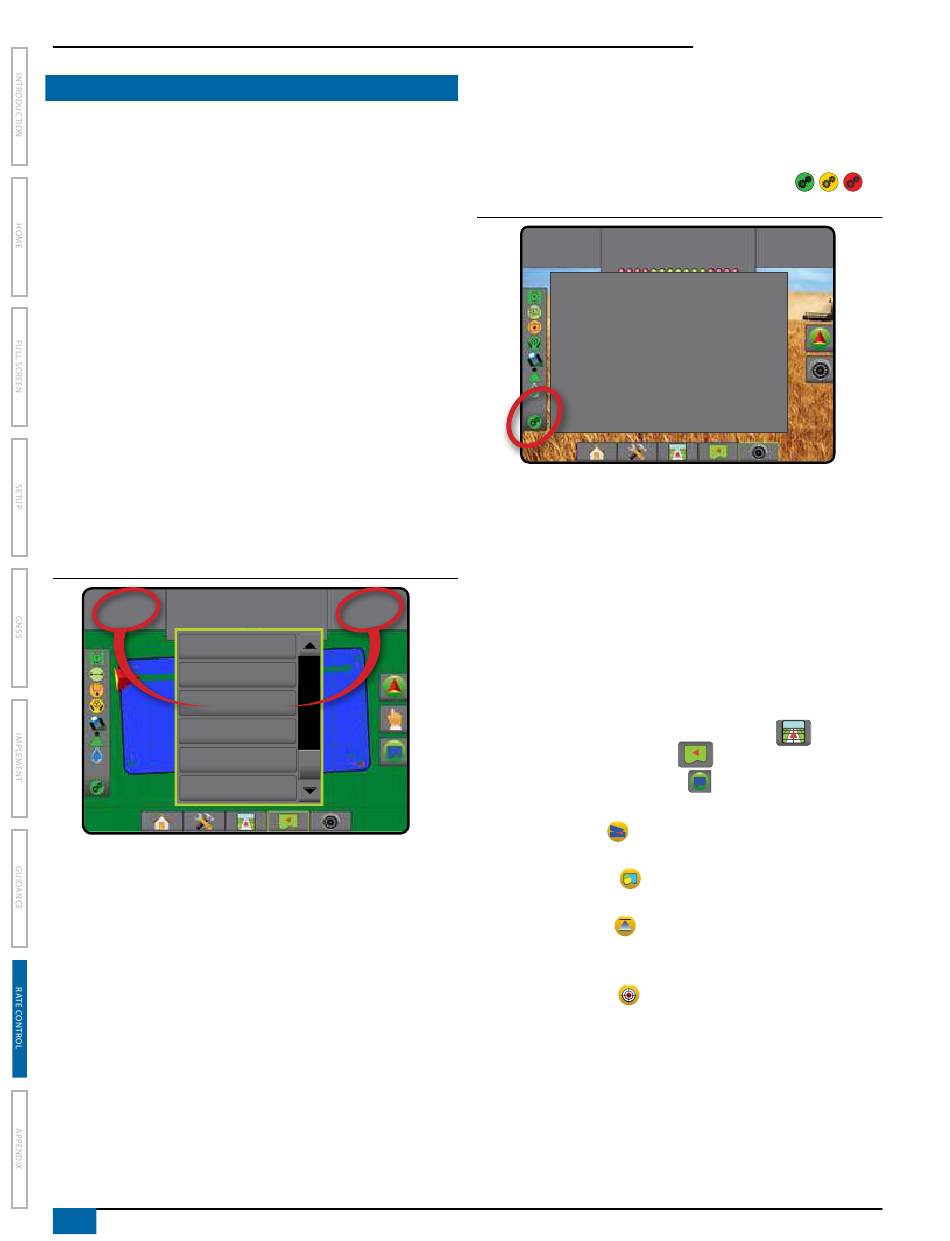

GUIDANCE SCREEN OPTIONS

When a Third-Party Rate Controller is integrated into the system,
additional rate control and mapping options are available on the
Vehicle View and Field View guidance screens.
On Screen Guidance
In addition to the standard Guidance options, the following
information will become available with Third-Party Rate Control:
• Guidelines
◄Black/White – prescription map zone boundary line
• Coverage Area – illustrates applied area and overlap:
◄ User Selected – Application Map and Target Rate Map
applied areas show colored bars relative to selected color
range and map selection.

Guidance Bar

In addition to the standard Guidance bar options, the following
selectable information will become available with Third-Party Rate
Control:
►Actual Application Rate – displays the current application rate
►Target Application Rate – displays the target application rate
Figure 8-4: Guidance Bar Selectable Information
27.00
Mark A
ac
Time
Swath Number
System Pressure
Droplet Size
Actual
Application Rate
Target
Application Rate
82
www.teejet.com

Status Bar

In addition to the standard Status Bar bar options, the Product Rate
Control Status icon provides information on rate control status.
When an icon is pressed, the related status information is displayed.
1. Press PRODUCT RATE CONTROL STATUS icon
Figure 8-5: Product Rate Control Status

Application Mapping

GNSS-based product application mapping is available in Vehicle
View or Field View, in any guidance mode when a rate controller is
on the system. Mapping can record areas covered by the implement
(Coverage) or how much product has been applied and where
(Application), and can direct single- and variable-rate product
10.0
mph
application (Preset Target Rate and Prescription, respectively).
NOTE: Before using mapping, set or verify product mapping options
under Configuration - > Product.
To access application mapping:
1. Press VEHICLE VIEW GUIDANCE bottom tab
VIEW GUIDANCE bottom tab
2. Press MAPPING OPTIONS tab
3. Select one or more:
►Coverage Map
regardless of whether product was applied
►Prescription Map
information to the rate controller for use in applying product
►Application Map
applied and where, using color to indicate level in proportion
to preset or automatically set maximum and minimum levels
►Target Rate Map
controller attempted to achieve at each location
NOTE: Application Map and Target Rate Map cannot be selected
simultaneously.
27.00 Mark A
ac
Rate Control Device Status:
Last Valid Response: <1 second ago
Successful Requests: 123,456
Unsuccessful Requests: 789,012
.
to display mapping options.
– shows areas covered by the implement,
– pre-loaded map that provides
– shows how much product has been
– shows the application rate that the rate
.
10.0
mph
. or FIELD
