Matrix® Pro 570GS ● Matrix® Pro 840GS

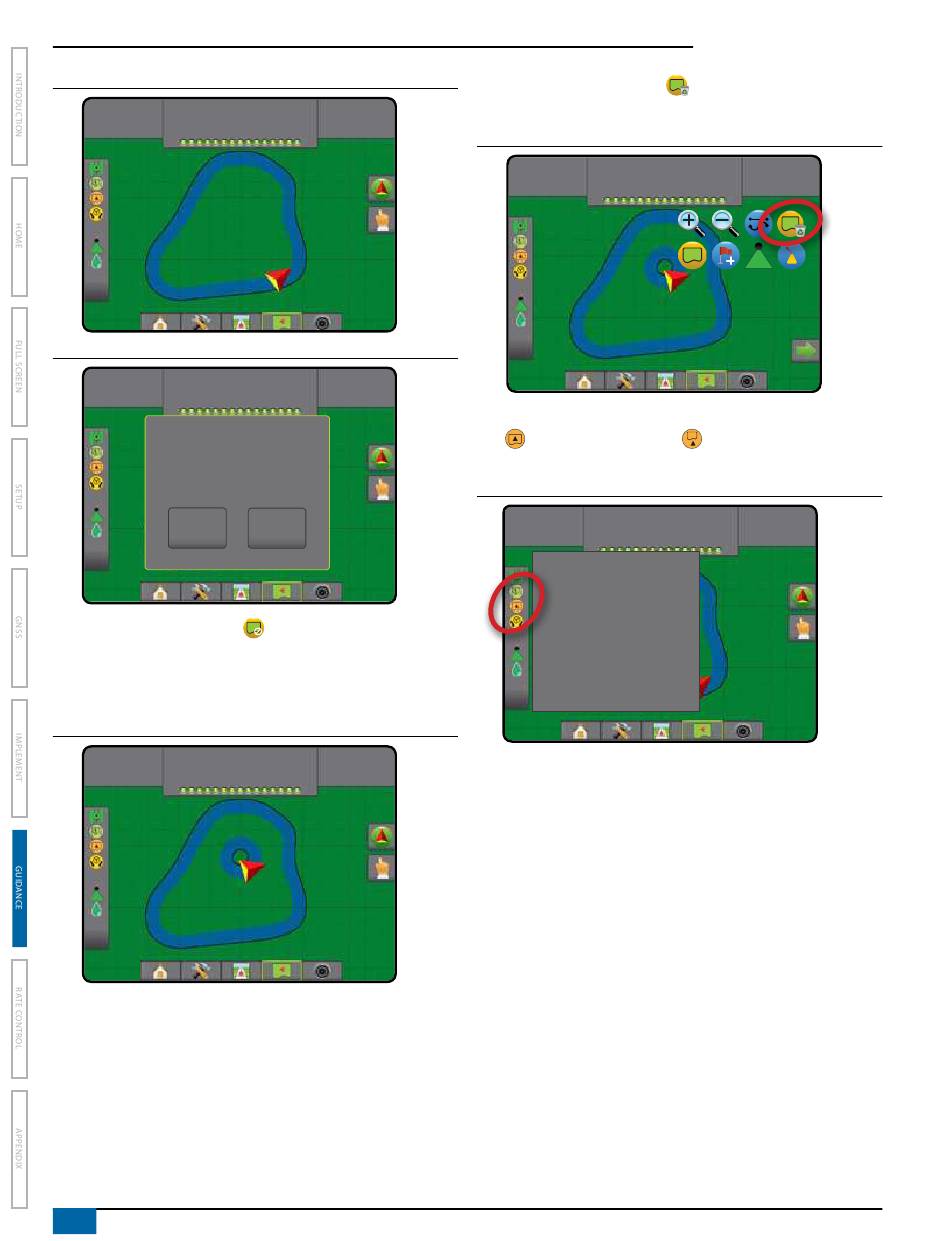

Figure 7-23: Finish Boundary – Travel to Starting Point
4.68
Mark A
ac
Figure 7-24: Save Boundary
4.68
Mark A
ac
Area bounded = 64.45 ac
Would you like to save the
marked boundary?
Save
Use CANCEL BOUNDARY icon
process and revert to the previous boundary (when established).
To establish one or more interior boundaries, follow the same steps
as the initial boundary.
Figure 7-25: Add Interior Boundary
5.48
Mark A
ac
While creating an external or initial boundary, the boundary line will
be to the exterior of the outermost active section. While creating an
interior or additional boundary, the boundary line will be to the interior
of the innermost active section.
If no sections are active, the boundary will be marked to the end of
the outermost section.
72
www.teejet.com
7.2
mph
7.2
mph
Delete
to cancel the new field boundary
7.2
mph
Use DELETE BOUNDARY icon
the current job.
Figure 7-26: Delete Boundary
5.48
Mark A
ac
In correspondence to your current location, the IN BOUNDARY
or OUT BOUNDARY icon
icon
once the boundary is established.
Figure 7-27: Boundary on Status Bar
5.48 Mark A
ac
Working Area: 12.54 ac
Field Area: 10.49 ac
Internal Area: 2.05 ac
to delete all field boundaries for
7.2
mph
is displayed on the Status Bar
7.2
mph
