Matrix® Pro 570GS ● Matrix® Pro 840GS

Tip Selection

Tip Selection enables up to five (5) tips to be preset for quick recall,
and the current tip to be selected.
NOTE: For more information, see "Tip Selection" in the Implement
chapter of this manual.
1. Press CONFIGURATION side tab
2. Press .
Implement
3. Press Tip Selection NEXT PAGE arrow
4. Select from:
►Tip Preset 1-5 – selects up to five (5) tips for quick recall,
and selected the current tip for determining droplet size
information
►Current Tip – displays the current tip
5. Press RETURN arrow
return to the main Configuration screen.

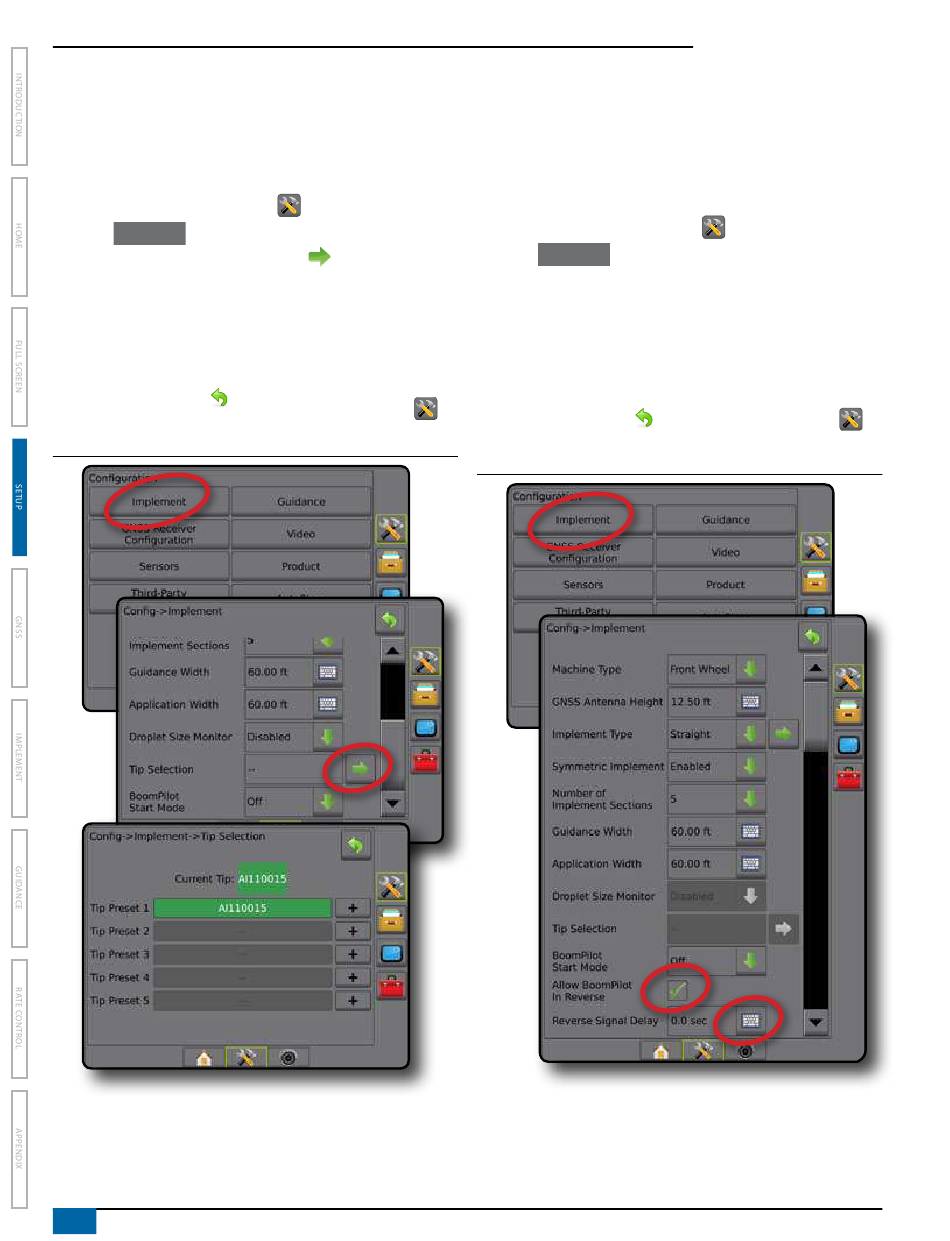

Figure 4-9: Tip Selection
16
www.teejet.com
.
.
or CONFIGURATION side tab

Reverse Sense Module

Reverse Sense Module Setup is used when adding a Reverse
Sense Module or SCM Pro (Steering Control Module Pro) to any
configuration.
NOTE: For more information, see "Reverse Sense Module" in the
Implement chapter of this manual.
1. Press CONFIGURATION side tab
2. Press .
Implement
3. Select:
►Allow BoomPilot in Reverse [when available] – used to enable
BoomPilot function while traveling in reverse
►Reverse Signal Delay – used to set the delay when going
from forward to reverse or reverse to forward, after which the
vehicle icon on a navigation screen changes direction
to
4. Press RETURN arrow
return to the main Configuration screen.
Figure 4-10: Reverse Sense Module
.
or CONFIGURATION side tab to
