Tip Selection / Current Tip

To establish the tip presets and current tip, see "Tip Selection" in this
chapter.

Input/Output Module Pressure Sensor

When a Pressure Sensor Interface Kit is present, Pressure Sensor
options are used to enter the sensor manufacture's maximum
pressure rating and set high and low user determined pressure
alarms.
NOTE: For more information, see "Sensors" in the Setup chapter of
this manual.

Operation

Status Bar

Droplet/Pressure Status displays information regarding the current
status of the droplet size and system pressure.
1. Press DROPLET/PRESSURE STATUS icon
.
2. Press the screen anywhere to return to the guidance screen.

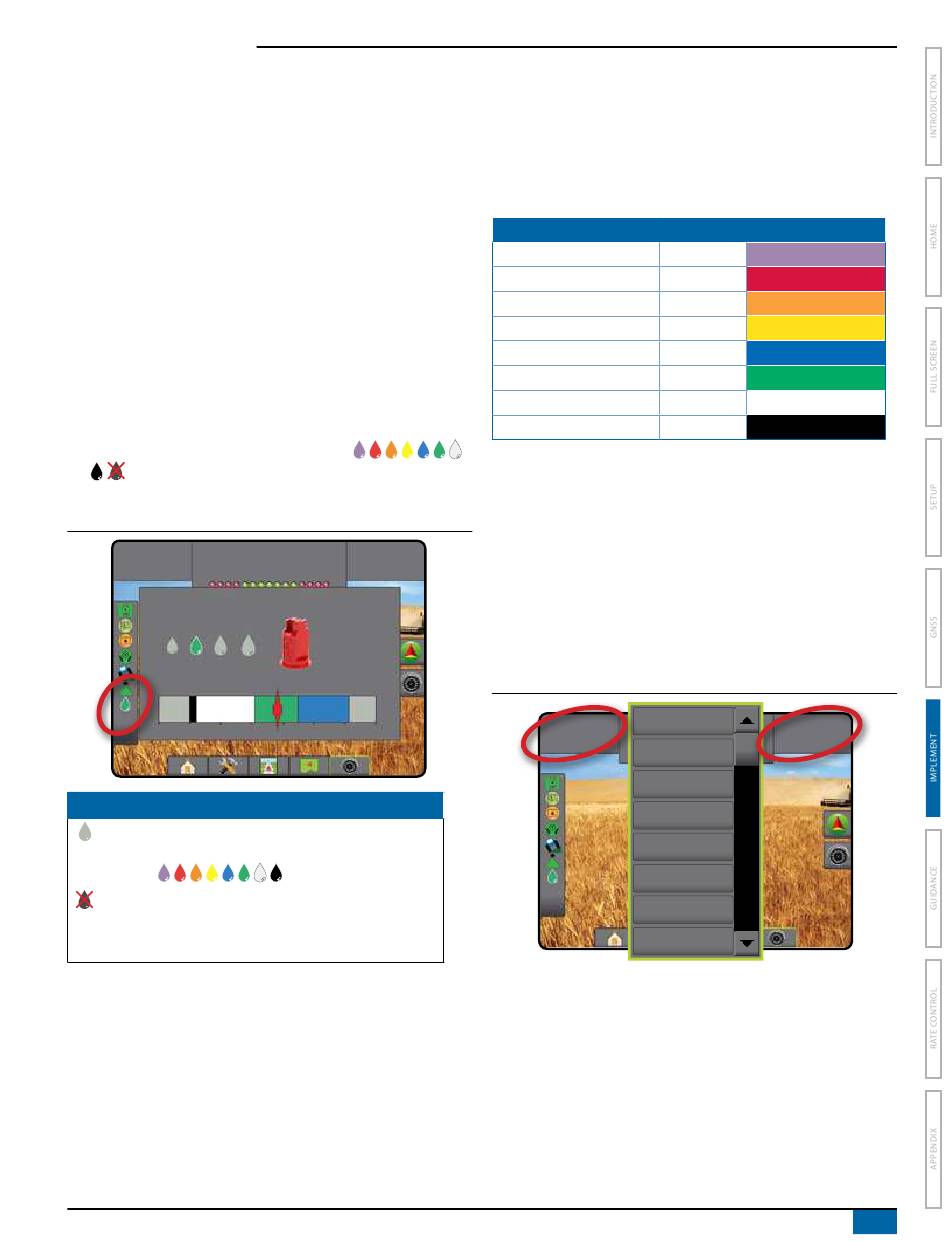

Figure 6-34: Droplet/Pressure Status
Mark A
VC
AIXR TeeJet®
Very Coarse
0 15 30 45
Droplet/Pressure Status
Colored = Engaged. The color of the droplet is directly
associated with the current droplet size. Color options
include:
Crossed Out = Disabled
No icon = no Pressure Sensor Interface Kit is installed
on system
Matrix® Pro 570GS ● Matrix® Pro 840GS
55
psi
AIXR11004
55
psi
60 75 90 psi

Droplet Size Chart

When choosing a spray tip that produces droplet sizes in one of the
eight droplet size classification categories, always remember that a
single tip can produce different droplet size classifications at different
pressures. A tip might produce medium droplets at low pressures,
while producing fine droplets as pressure is increased.
Category Symbol
Extremely Fine
Very Fine
Fine
Medium
Coarse
Very Coarse
Extremely Coarse
Ultra Coarse

Guidance Bar

The Guidance bar keeps you informed of your choice of selectable
information including Current System Pressure and Current Droplet
Size.
1. Press SELECTABLE INFORMATION box.
2. Select from:
►System Pressure – displays the current system pressure
►Droplet Size – displays the current tip droplet size
3. Press outside the selection box to return to the guidance screen.
Figure 6-35: Guidance Bar Selectable Information
Speed
VC
Mark A
Heading
Total Applied Area
Application Time
Time
Swath Number
System Pressure
Droplet Size
Color Code
XF Violet
VF Red
F Orange
M Yellow
C Blue
VC Green
XC White
UC Black
55
psi
53
