Implement

Implement Setup is used to establish the various settings associated
with straight mode, spreader mode, or staggered mode. Available
settings will vary depending on the specific equipment present in the
system.
This section includes setup options for these implement
configurations:
►Single Section
►Multiple Sections with Section Driver Module or Switch
Function Module
NOTE: For more information, see the Implement chapter of this
manual.

Implement Type

Implement type selects the type of application pattern that most
closely represents your system.
● In Straight Mode – the boom sections have no length and are
on a line a fixed distance from the antenna
● In Spreader Mode – a virtual line is created in line with the
delivery disks from which the application section or sections can
vary in length and can be at different distances from the line
(availability depends on the specific equipment in the system)
● In Staggered Mode – a virtual line is created in line with
Section 1 from which the application section or sections have
no length and can be at different distances from the antenna
(availability depends on the specific equipment in the system)
NOTE: For more information, see "Implement Type" in the
Implement chapter of this manual.

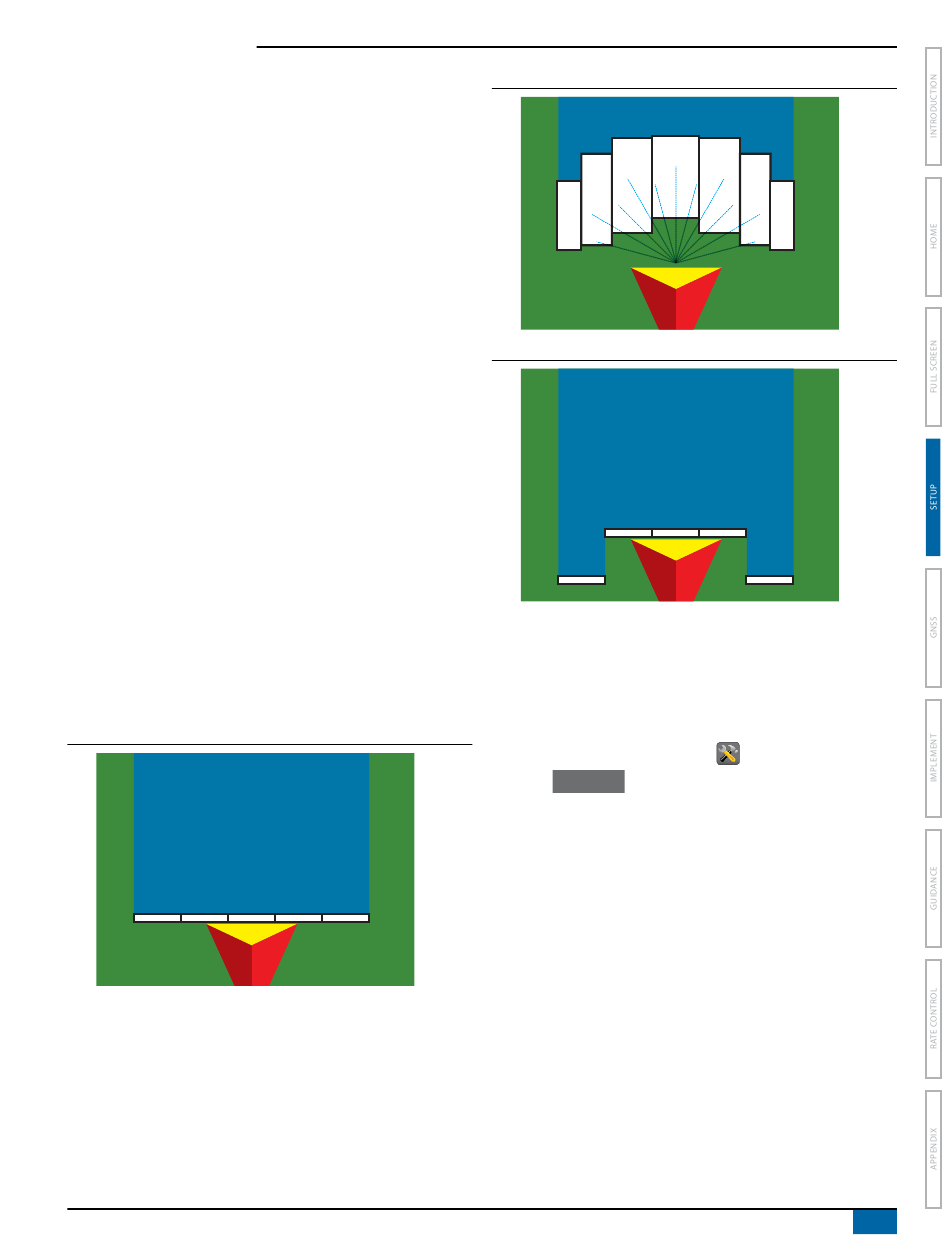

Figure 4-3: Implement Type – Straight
Matrix® Pro 570GS ● Matrix® Pro 840GS
Figure 4-4: Implement Type – Spreader
Figure 4-5: Implement Type – Staggered

Single Section Setup

Single Section Setup is used when a SmartCable, Section Driver
Module (SDM), or Switch Function Module (SFM) is not on the
system (that is, no section control is present). The entire boom or
delivery area is considered to be one section.
1. Press CONFIGURATION side tab
2. Press
3. Select from:
►Machine Type [when available] – used to select the type of
►GNSS Antenna Height [when available] – used to measure
►Implement Type – used to select the layout of the sections for
►Guidance Width – used to set the distance between guidelines
►Working Width [Spreader Implement Type] – used to enter the
►Application Width [Straight Implement Type] – used to enter
►Droplet Size Monitor [when available] – used to enable droplet
.
Implement
machine that most closely represents your machine
the height of the antenna from the ground
the applied product location
total width of the implement
the total width of the implement
size monitoring for up to five preselected sprayer tips
