Console Screen Colors

The console is available in six color schemes. From the System
Setup Bottom Key, press CONSOLE side tab
options. Press DOWN arrow
the
Display
Scheme options to select color mode.

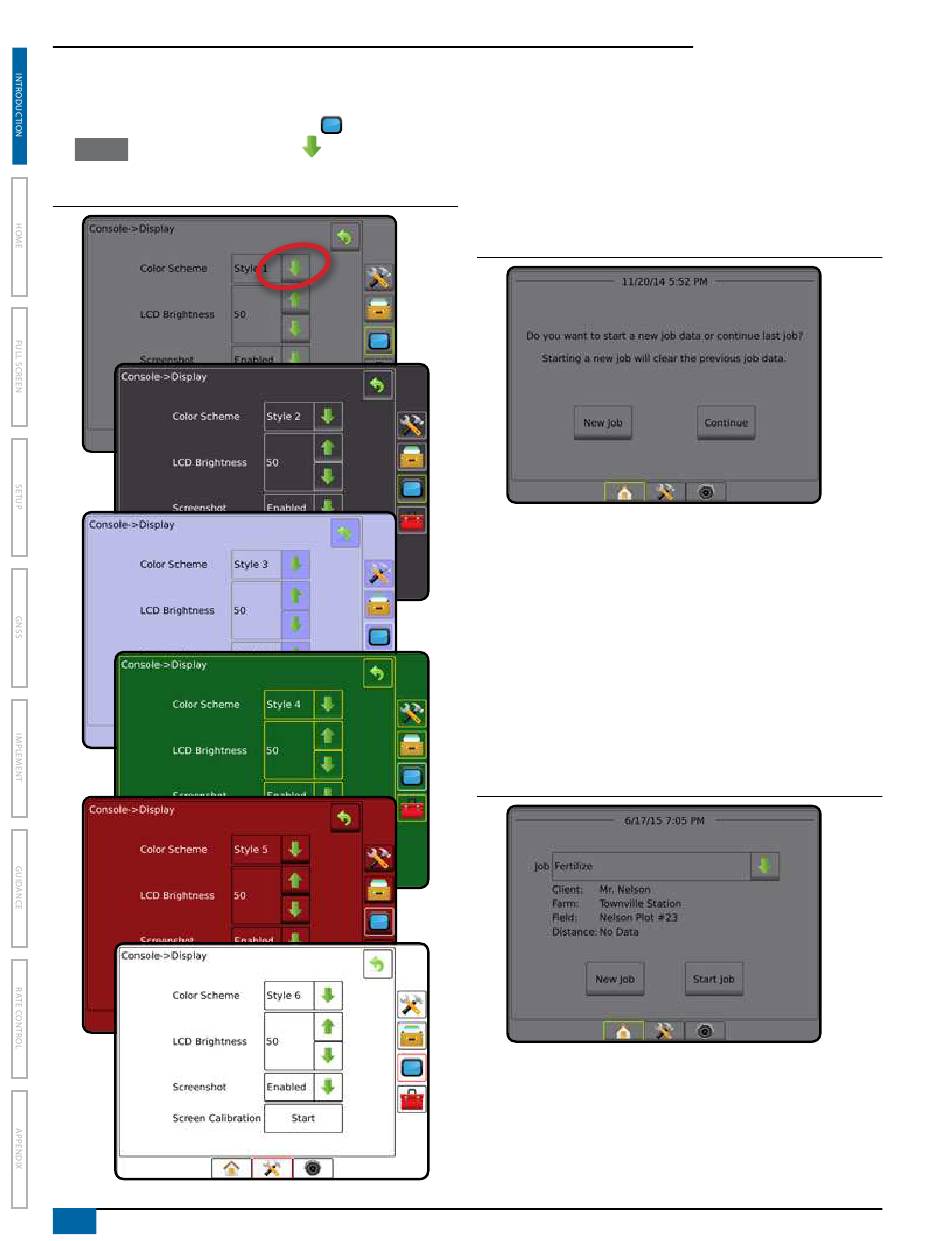

Figure 1-5: Color Schemes
4
www.teejet.com

Simple or Advanced Mode

To change between simple mode and advanced mode, see the
configuration chapter under Data –> Options.
and enter
to access the Color
In simple mode, only one job will be available at a time. Only
bounded area and coverage areas are displayed on the home
screen. Only the current job is available for saving in Reports. Use
with Fieldware Link is not available.
Figure 1-6: Simple Mode Home Screen
In advanced mode, more than one job will be available at any time.
Client, farm, field and job names; bounded and coverage areas;
application time; and distance from selected job are displayed on the
home screen. All saved job profiles can be exported as a PDF, SHP
or KML file to a USB drive using Data -> Reports.
Client information, farm information, field information, and
prescription maps can only be inputted using Fieldware Link. A job
name can only be edited using Fieldware Link.
A user can duplicate jobs for reuse of boundaries, guidelines,
coverage data and prescription maps using Fieldware Link or
Data -> Job Data -> Manage in the console.
Figure 1-7: Advanced Mode Home Screen
