Matrix® Pro 570GS ● Matrix® Pro 840GS

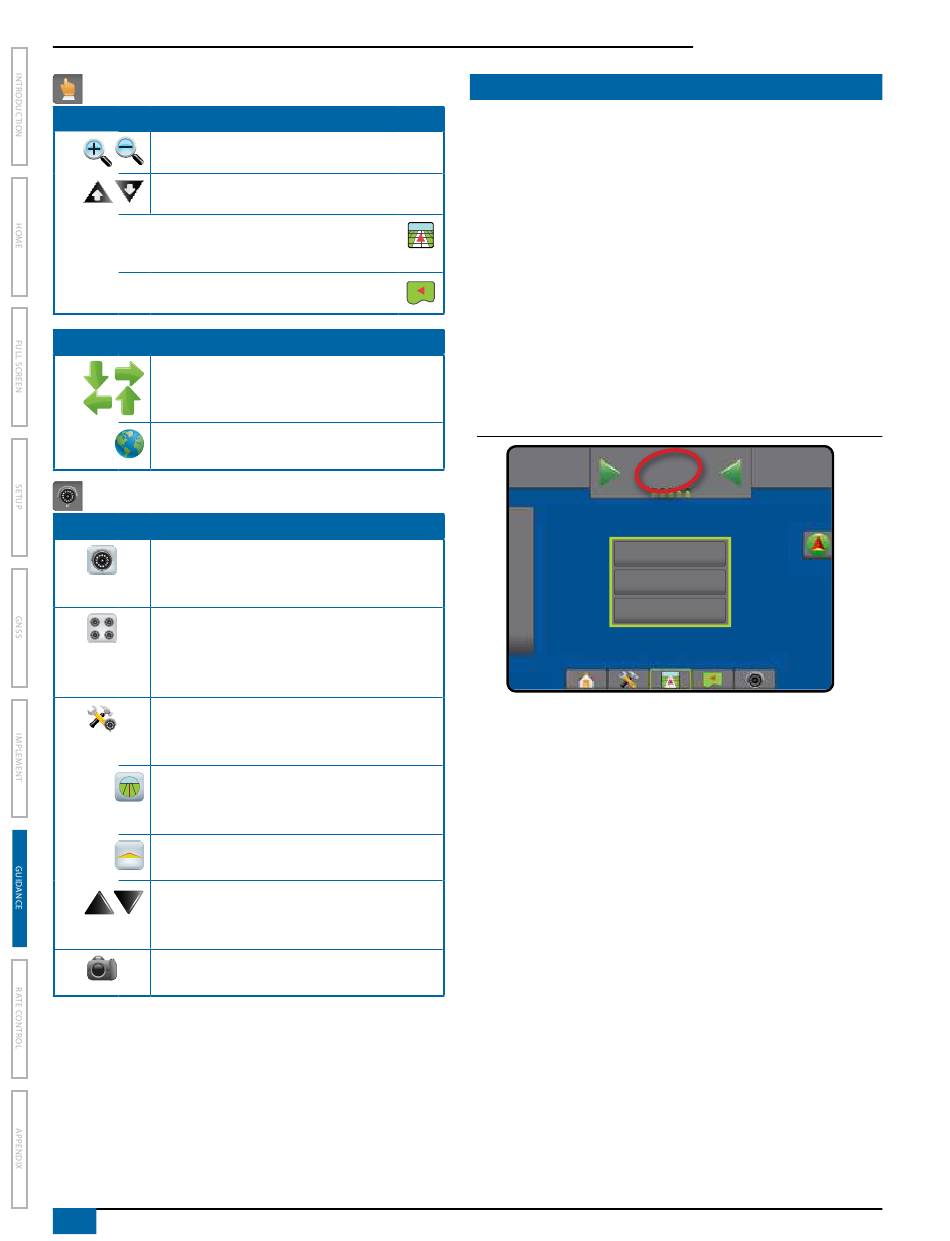

Screen Options
Zoom in/out
Icons – to be used on the Matrix Pro 570GS
Buttons – to be used on the Matrix Pro 840GS
Vehicle view – icons or buttons adjust the vehicle's view
or perspective to the horizon from vehicle view to bird's
eye view.
Field view – icons or buttons increase/decrease the area
displayed on the screen.
Pan
Arrows – move the displayed map area in the
corresponding direction without moving the
vehicle.
World View – extends the screen view to the
widest area available.
RealView Guidance Options
Video Camera Select – selects one of up to
eight camera views if a Video Selection Module
(VSM) is attached.
Split Camera View – selects one of two sets
of four camera inputs (A/B/C/D or E/F/G/H)
to divide the screen into four separate video
feeds.
Guidance Over Video Setup – access to turn
on Guidance Over Video or Steering Angle and
adjust guidelines.
Guidance Over Video – places three-
dimensional guidelines over the video feed for
navigational assistance.
Steering Angle – displays the direction in which
the steering wheel needs to be adjusted.
Up & Down Icons – used to adjust the guidance
lines and horizon line to match the camera's
view.
Camera Image Capture – saves a still photo of
the current view on the screen to a USB drive.
58
www.teejet.com

GUIDANCE BAR

The Guidance bar keeps you informed of your choice of selectable
information, navigation activity, and section status.
Navigation Activity & Boom Status
GNSS Status – displays "No GNSS" when GNSS is unavailable, or
"Slow GNSS" when GNSS is receiving GGA data at less than 5Hz
Cross Track Error – displays the distance from your desired guideline
Current Activity – displays activities such as mark an A or B point,
approaching the end of a row, indicating to turn now, and distance to
return to a marked point
Section Status – one dot is displayed for each section programed: a
green dot indicates the section is active, and a red dot indicates the
section is not active
Figure 7-2: Navigation Activity/Section Status
27.00
0.0
ac
Decimal Feet
Feet and Inches [1'06"]
Inches

Cross Track Error

The distance around the guideline that is perceived as zero error can
be adjusted using Configuration-> Guidance-> Guidance Sensitivity.
To change the format in which the distance is displayed:
1. Press the Navigation Activity box on the guidance bar.
2. Select the measurement format.
10.0
mph
[1.5]
[18]
