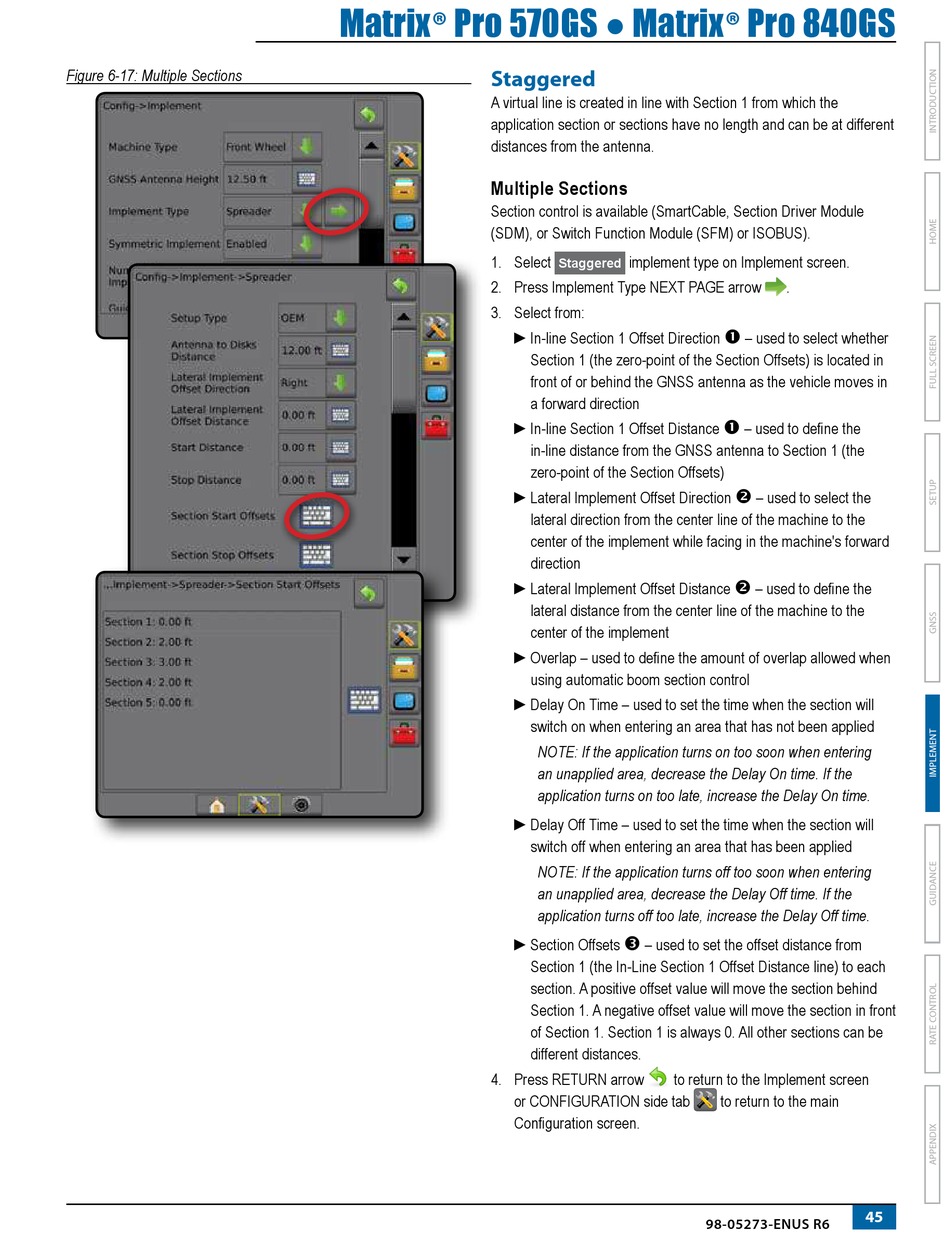

Figure 6-17: Multiple Sections
Matrix® Pro 570GS ● Matrix® Pro 840GS

Staggered

A virtual line is created in line with Section 1 from which the
application section or sections have no length and can be at different
distances from the antenna.

Multiple Sections

Section control is available (SmartCable, Section Driver Module
(SDM), or Switch Function Module (SFM) or ISOBUS).
1. Select
2. Press Implement Type NEXT PAGE arrow
3. Select from:
►In-line Section 1 Offset Direction
►In-line Section 1 Offset Distance
►Lateral Implement Offset Direction
►Lateral Implement Offset Distance
►Overlap – used to define the amount of overlap allowed when
►Delay On Time – used to set the time when the section will
►Delay Off Time – used to set the time when the section will
►Section Offsets
4. Press RETURN arrow
or CONFIGURATION side tab
Configuration screen.
Staggered
implement type on Implement screen.
Section 1 (the zero-point of the Section Offsets) is located in
front of or behind the GNSS antenna as the vehicle moves in
a forward direction
in-line distance from the GNSS antenna to Section 1 (the
zero-point of the Section Offsets)
lateral direction from the center line of the machine to the
center of the implement while facing in the machine's forward
direction
lateral distance from the center line of the machine to the
center of the implement
using automatic boom section control
switch on when entering an area that has not been applied
NOTE: If the application turns on too soon when entering
an unapplied area, decrease the Delay On time. If the
application turns on too late, increase the Delay On time.
switch off when entering an area that has been applied
NOTE: If the application turns off too soon when entering
an unapplied area, decrease the Delay Off time. If the
application turns off too late, increase the Delay Off time.
– used to set the offset distance from
Section 1 (the In-Line Section 1 Offset Distance line) to each
section. A positive offset value will move the section behind
Section 1. A negative offset value will move the section in front
of Section 1. Section 1 is always 0. All other sections can be
different distances.
to return to the Implement screen
98-05273-ENUS R6
.
– used to select whether
– used to define the
– used to select the
– used to define the
to return to the main
45
