With TeeJet Section Control Module and
Switchbox or ISM
SmartCable, Section Driver Module (SDM) or Switch Function
Module (SFM) and a switchbox or Implement Status Module (ISM) is
present.
NOTE: The BOOMPILOT icon is gray
unavailable. BoomPilot status bar icon will be off/manual
To switch application off or on automatically:
1. Automatic/Manual Boom Switch must be in the "Auto" position.
◄Automatic – status bar icon will be green
2. Master Switch and section switches must be in the "On" position.
NOTE: Application can be manually controlled while in Automatic
BoomPilot mode using the switches on the switchbox or
switches connected to the ISM.
To switch application off or on manually:
1. Automatic/Manual Boom Switch must be in the "Manual"
position.
◄Manual – status bar icon will be red
2. Use the switches on the switchbox or switches connected to the
ISM.

With TeeJet Section Control Module

SmartCable, Section Driver Module (SDM) or Switch Function
Module (SFM) is present BoomPilot is used to set automatic section
control to off/manual , automatic
NOTE: The BOOMPILOT icon is gray
unavailable. BoomPilot status bar icon will be off/manual
To switch application off or on automatically:
1. Press NAVIGATION AND GUIDANCE OPTIONS tab
display navigation options.
2. Press and release BOOMPILOT icon
◄Enable – status bar icon will change to green
◄Disable – status bar icon will change to red
To apply a spot application:
1. Press NAVIGATION AND GUIDANCE OPTIONS tab
display navigation options.
2. Press and hold BOOMPILOT icon
◄Spot Application– status bar icon will change to yellow
Matrix® Pro 570GS ● Matrix® Pro 840GS
when GNSS is
.
]
, or spot application
when GNSS is
.
to
.
to
over area to be applied.

ZOOM IN/OUT

Vehicle View

Zoom In/Out & Perspective is used to adjust the vehicle's view or
perspective to the horizon from vehicle view to bird's-eye view.
• Zoom in will adjust view to vehicle view displaying a
compass on the horizon
• Zoom out will adjust view to bird's eye view

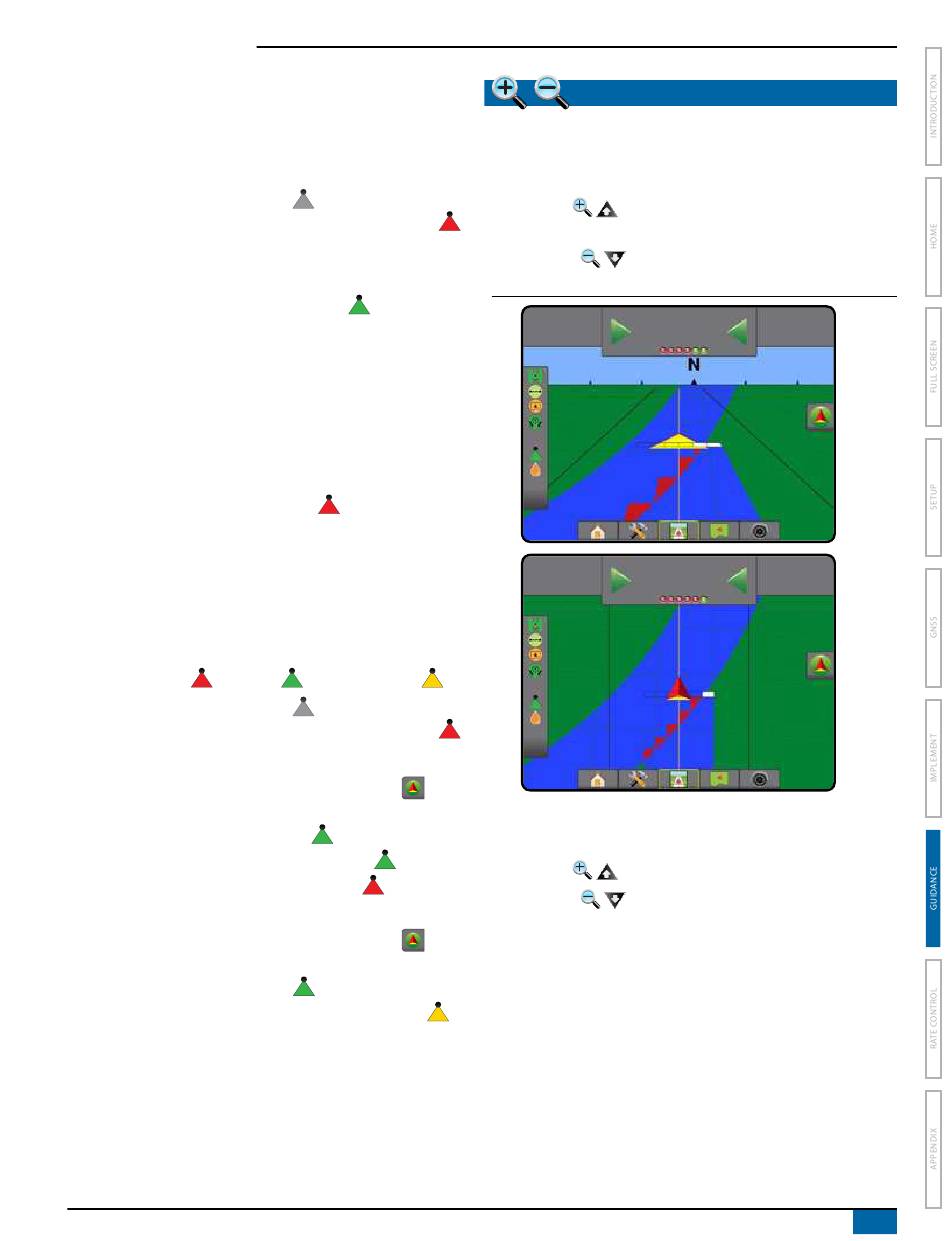

Figure 7-32: Zoom In to Zoom Out
27.00
0.0
ac
27.00
0.0
ac

Field View

Zoom In/Out is used to adjust the map's visible area.
• Zoom in will decrease the amount of map area visible
• Zoom out will increase the amount of map area visible
7.2
mph
7.2
mph
75
