Selectable Information

Speed – displays the current speed of travel
Heading – displays the course of travel based clockwise from
a north-south baseline. North = 0°, East = 90°, South = 180°,
West = 270°.
Total Applied Area – displays the total accumulated area that has
had product applied, including double-coverage areas
Application Time – displays the total time application is active during
the current job
Time – displays the current time based on the selected time zone
Swath Number – displays the current swath number in reference to
the initial AB guidance line, facing in the direction from A to B. Number
will be positive when the vehicle is to the right of the AB baseline, or
negative when the vehicle is to the left of the AB baseline.
System Pressure – displays the current system pressure (available
only when an Input/Output Module is on the system)
Droplet Size – displays the current tip droplet size (available only
when an Input/Output Module is on the system)

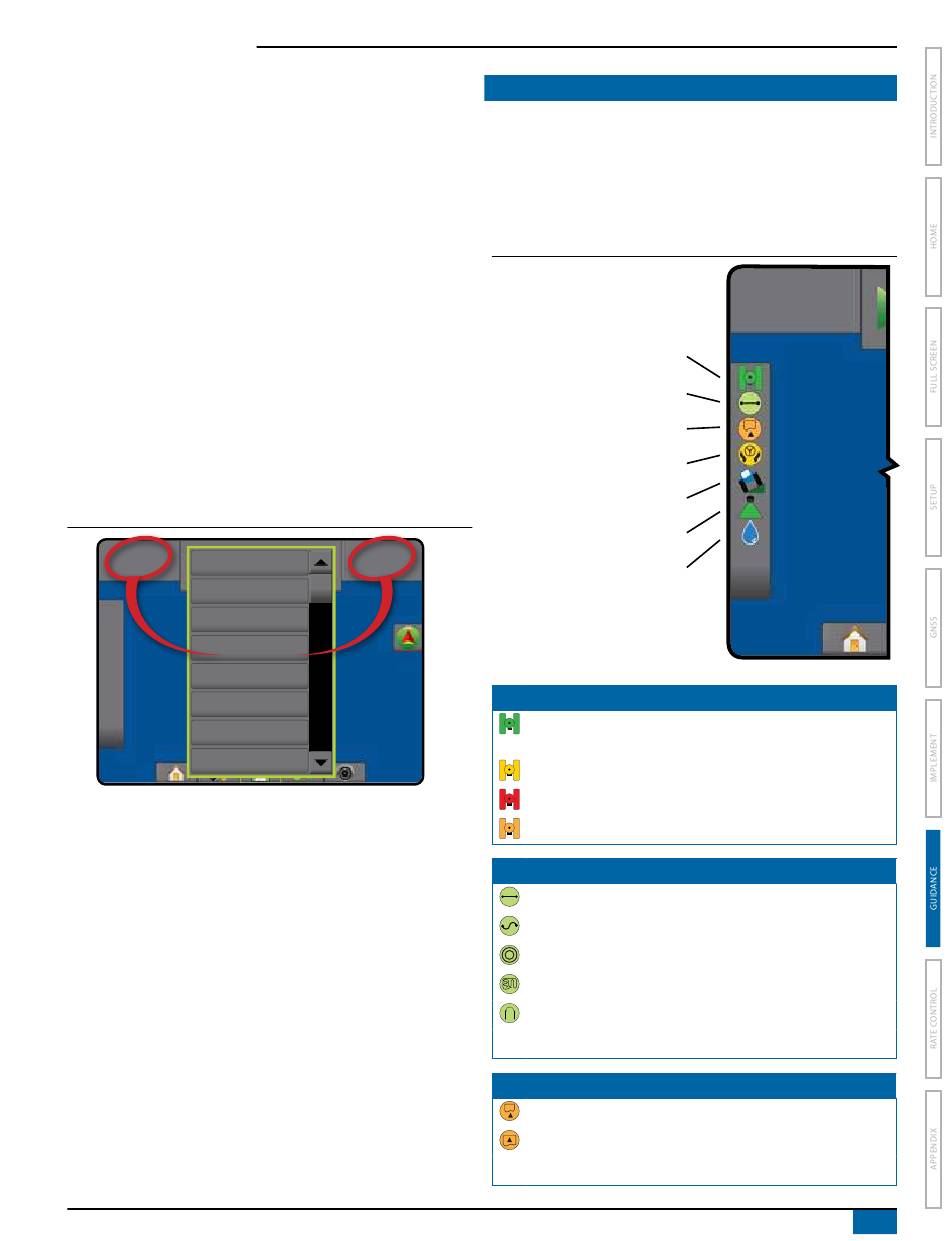

Figure 7-3: Selectable Information
27.00
Mark A
Speed
ac
Heading
Total Applied Area
Application Time
Time
Swath Number
System Pressure
Droplet Size
Matrix® Pro 570GS ● Matrix® Pro 840GS

STATUS BAR

The Status Bar provides information on GNSS status, guidance
mode, boundary area, assisted/auto steering engagement, tilt
correction, implement control status, droplet/pressure status, tip flow
status, and rate control status.
When an icon is pressed, the related status information is displayed.
Figure 7-4: Status Bar
10.0
mph
GNSS Status
Guidance Mode
Bounded Area Status
GNSS Status
Guidance Mode
Bounded Area Status
Assisted/Auto Steering Status
Tilt Correction Status
BoomPilot Status
Droplet/Pressure Status
Green = GPS, GLONASS, or SBAS (with or without DGPS
Required)
Yellow = GPS only
Red = no GNSS
Orange = Glide/ClearPath
Straight AB Guidance
Curved AB Guidance
Circle Pivot Guidance
Last Pass Guidance
NextRow Guidance
No Icon = no Guidance
Outside Boundary = traveling outside bounded area
Inside Boundary = traveling inside bounded area
No Icon = no boundary established
