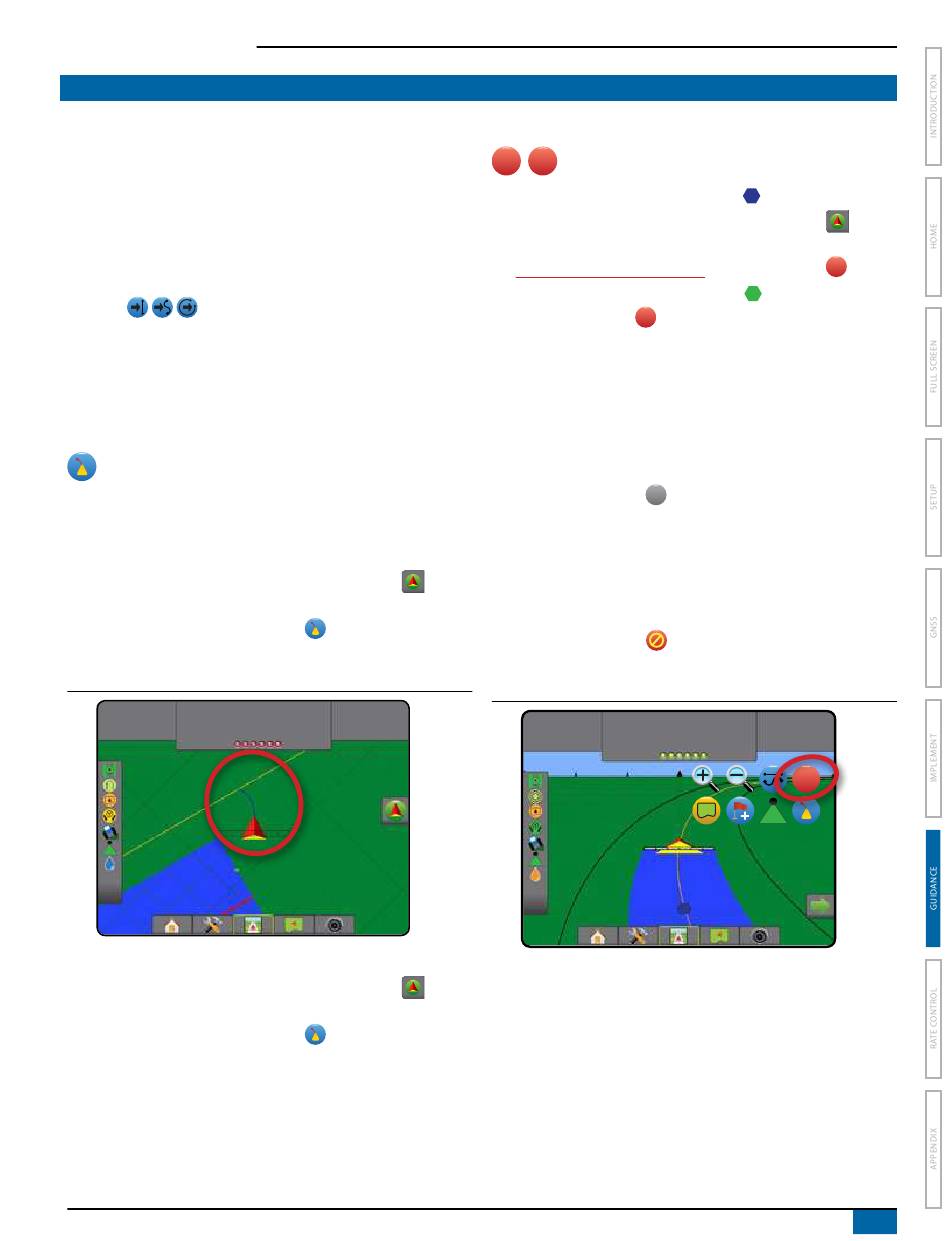

GUIDELINES

AB guidelines, Azimuth guidelines, next pass guidelines, and
NextRow guidelines are each available depending on the current
guidance mode. Up to 25 established guidelines can be stored in the
console per job. Switching from one guidance mode to another will
change the current available guidelines.
Multiple guidelines can be created in each guidance mode. If more
than one guideline is saved in a single guidance mode, the Next
Guideline feature will become available. By pressing the Next
Guideline option, the vehicle will be directed to the next
guideline saved in the console.
A user can duplicate and edit jobs for reuse of boundaries and
guidelines for different applications over the same field using
Fieldware Link or the Data - > Job Data - > Manage option.

Curved Lookahead Guideline

The curved lookahead guideline provides an indication of
where the current steering will take the vehicle using a 'pointer'
as guidance. The Curved Lookahead option is available in all
guidance modes.
To activate the Curved Lookahead guideline:
1. Press NAVIGATION AND GUIDANCE OPTIONS tab
display navigation options.
2. Select CURVED LOOKAHEAD icon
The pointer will be visible on the navigation screen.
Figure 7-9: Curved Lookahead
-13
Mark A
To remove the Curved Lookahead guideline:
1. Press NAVIGATION AND GUIDANCE OPTIONS tab
display navigation options.
2. Select CURVED LOOKAHEAD icon
Matrix® Pro 570GS ● Matrix® Pro 840GS

Marking A and B Points

A B
1. Drive to the desired location of Point A
2. Press NAVIGATION AND GUIDANCE OPTIONS tab
3.
4. Drive to the desired location of Point B
5. Press MARK B icon
6. "Would you like to name this guideline?"
The console will begin providing navigation information.
NOTE: The MARK B Icon
to
NOTE: It is not necessary to drive the entire circumference of the
.
Use CANCEL MARK icon
revert to the previous guideline (when established).
Figure 7-10: Mark A Point
7.2
mph
to
.
To establish an AB guideline:
display navigation options.
While the vehicle is in motion,
B
to establish the AB line.
Press:
►Yes – to enter a name and save the guideline in the console
►No – to automatically generate a name and save the guideline
in the console
B
is not available for selection (grayed
out) until the minimum distance is travelled (9.84 feet /
3.0 meters in Straight or Curved guidance, 164.04 feet /
50.0 meters in Circle Pivot guidance).
center pivot in order to initiate Circle Pivot Guidance.
to cancel the Mark A command and
1:12 PM
Mark A
.
to
A
press MARK A icon .
.
7.2
mph
A
67
