- Page 1 VOYAGER ® 570G U S E R M A N U A L I N S T A L L A T I O N M A N U A L ECTION ONTROL Berthoud TELEVOLUX...

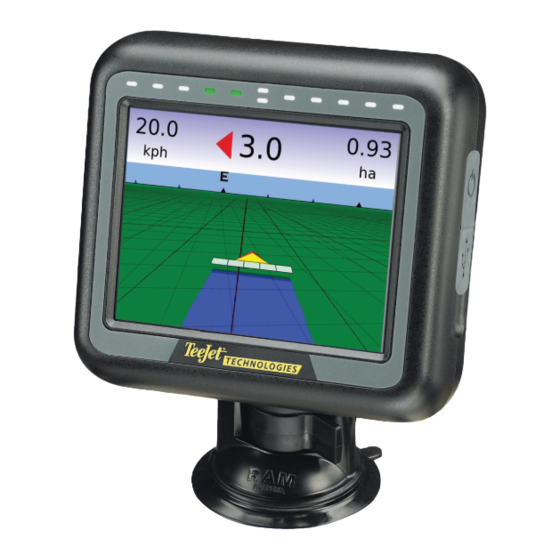

- Page 2 The MATRIX and Centerline 230BP are combined Guidance and Automatic Boom Section Control (ABSC) devices that features control of up to 15 boom sections. The MATRIX or the Centerline 230BP connects in parallel to the existing wiring loom to the section valves.
- Page 3 (Pos. 4, 5, 6, 8, 9 /System Overview) 45-05626 Power/CAN/Data cable for MATRIX (Pos. 2 /System Overview) 45-05648 Power Cable, w/COBO connector (Pos. 7 /System Overview) * Refer to the MATRIX pricelist, ** 990-898 or 990-899 CL230: Part no. Description * xxx-xxx CL230 Guidance controller kit Berthoud TELEVOLUX ABSC kit, for ‘New Safi’...
- Page 4 SYSTEM OVERVIEW, MATRIX Section Power 1008-0203 www.teejet.com...
- Page 5 Fuse (3A) 166-603 19P connector, from the Berthoud ABSC interface 19P connector, BoomPilot cable 4P Connector (CAN, Matrix and Section Driver Module) 2P Connector (Power to Matrix Controller) 2P connector, section power 35P Connector (Boom Section I/O to Section Driver Module)
- Page 6 SYSTEM OVERVIEW, CL230 Section Power 1008-0203 www.teejet.com...
- Page 7 Fuse (3A) 166-603 19P connector, from the Berthoud ABSC interface 19P connector, BoomPilot cable 4P Connector (CAN, Matrix and Section Driver Module) 2P Connector (Power to Matrix Controller) 2P connector, section power 35P Connector (Boom Section I/O to Section Driver Module)
- Page 8 INSTALLING THE BERTHOUD TELEVOLUX KIT To get electrical contact with the Sections and the Master switch in the Berthoud TELEVOLUX Switch Box, it’s necessary to install a Berthoud ABSC Interface (See pos. 7 and 8 on the two System Overview drawings). Before starting the installation, make sure that the power is disconnected. This is a critical operation and must only be conducted of persons with the necessary skills.
-
Page 9: Wiring Diagram
WIRING DIAGRAM Carte pulve 1. Connect the external connector cable (4) to the interface (1), in the middle row. 2. Disconnect the wires (3) from the "Carte Pulvé" board (2) and connect them to the interface (1). 3. Connect the wires (5) to the interface (1) and to the “Carte Pulve” board (2). www.teejet.com... - Page 10 CONNECTING POS. M TO POWER DESCRIPTION +12V (15/30) Ground (31) ! When connecting the system to 12V power it's very important that the polarity is correct, if not the system will be damaged. 1008-0189 BATTERY CABLE (OPTION): The power supply must be strong enough to operate the Section and Master valves. The total cur- rent will depend on the used valve type.
- Page 11 VALVES CONNECTION Berthoud sprayers with New Safi or pneumatic valves: - No particular connection has to be done. Original cabling is ok. Berthoud sprayers with Old Safi or Arag valves: - Relay box installation Take out the blue cover above the boom Fix the relay box to the frame Driving wires connection to relay box Connect loose wires to the connection bloc.
- Page 12 Valves connections to relay box Disconnect the valves from the connection bloc and connect them into the relay box. For old SAFI valves: Wire Color Connection Function Brown 12 V for closing White 12 V for opening Blue Permanent Ground For ARAG valves: Wire Color Connection...
-
Page 13: System Check
MATRIX or CL230: • Set the ABSC mode to MANUAL Check in the ‘Boom Section Control Screen’ (Matrix or CL230) that the section icons turn off and on according to the valve/switch status. Berthoud TELEVOLUX: • Set the section switch's on •... - Page 14 LED’S ON THE SECTION DRIVER MODULE Section Power: ON when power is available for the section drivers. I/O error: Should normally be OFF (Auto Mode: ON when automatic boom switching is active). CAN Data: ON is flashing when it communicates with the CenterLine 230. CAN Power: ON when power is applied to the CenterLine 230 and the SDM.
- Page 15 www.teejet.com...
-
Page 16: Installation
I N S T A L L A T I O N M A N U A L Matrix Guidance: Exclusive Features • RealView™ Guidance Over Video ◄Guidance Superimposed Over Video ◄Guidance Only ◄Video Only • Bright Daylight Readable Screen • Easy-to-Use 3D Graphical Guidance • Coverage Mapping/Data Export Mølhavevej 2 9440 Aabybro...
