2D Mode
6.2.1 B-Mode
Using B-Mode
Hint
Info
Note
6-4
B-Mode is intended to provide two-dimensional images and measurement capabilities
concerning the anatomical structure of soft tissue.
1.
Start a new exam and enter all relevant patient information.
2.
Connect a probe to the system.
3.
Select the probe and a preset.
Main 2D menu appears.
4.
The
5.
Perform the scan.
6.
Press Freeze.
To change 2D Gain rotate the 2D button or use on screen gestures. To change the Frequency
use the touch panel.
Also see 'Button description' on page 3-5.
The availability of some functions or features depends on the probe and ultrasound system
used.

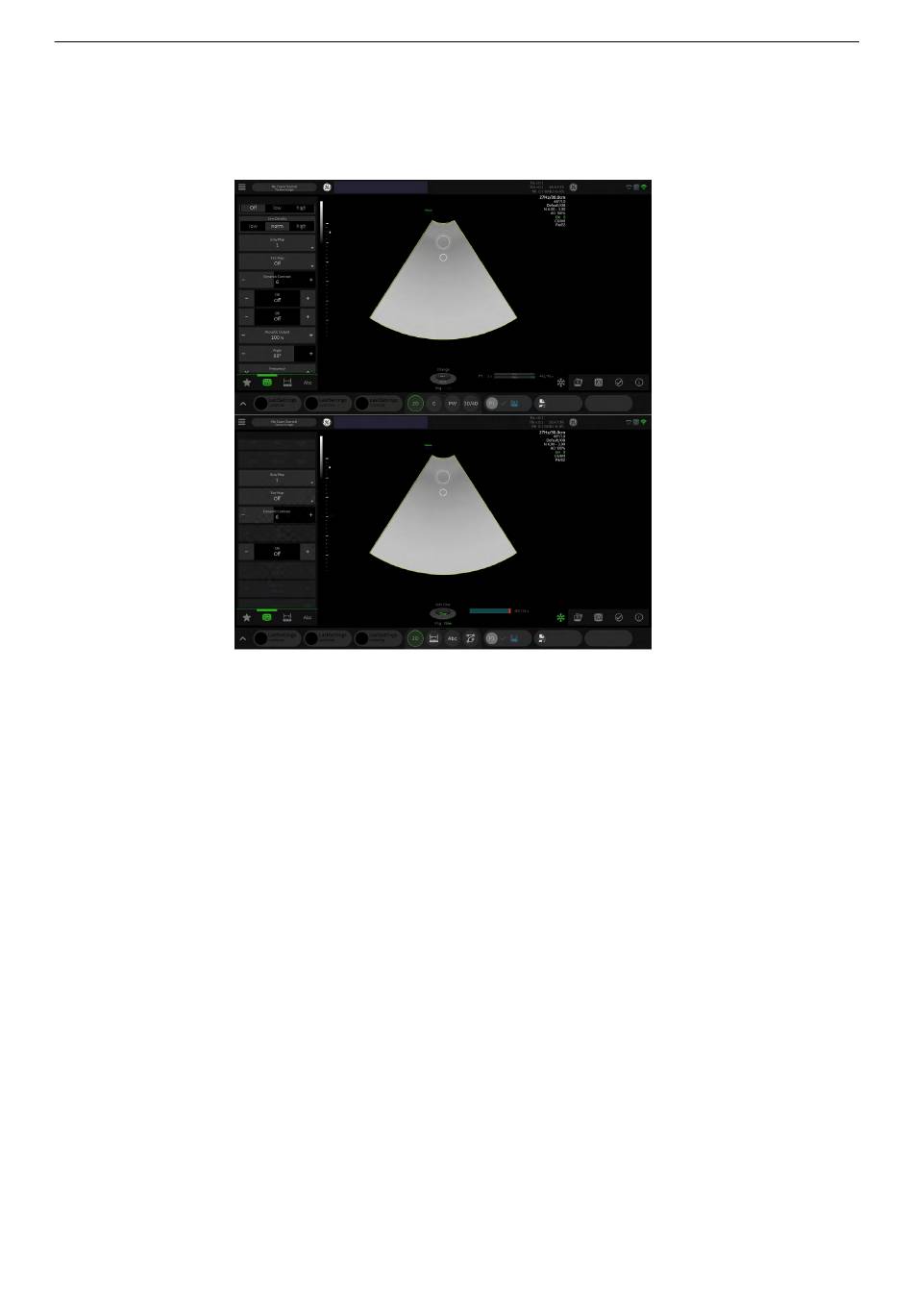

Figure 6-3 B-Mode: Scan Mode and Read Mode
Voluson™ SWIFT / Voluson SWIFT+ Instructions For Use
5831612-100 Revision 4
