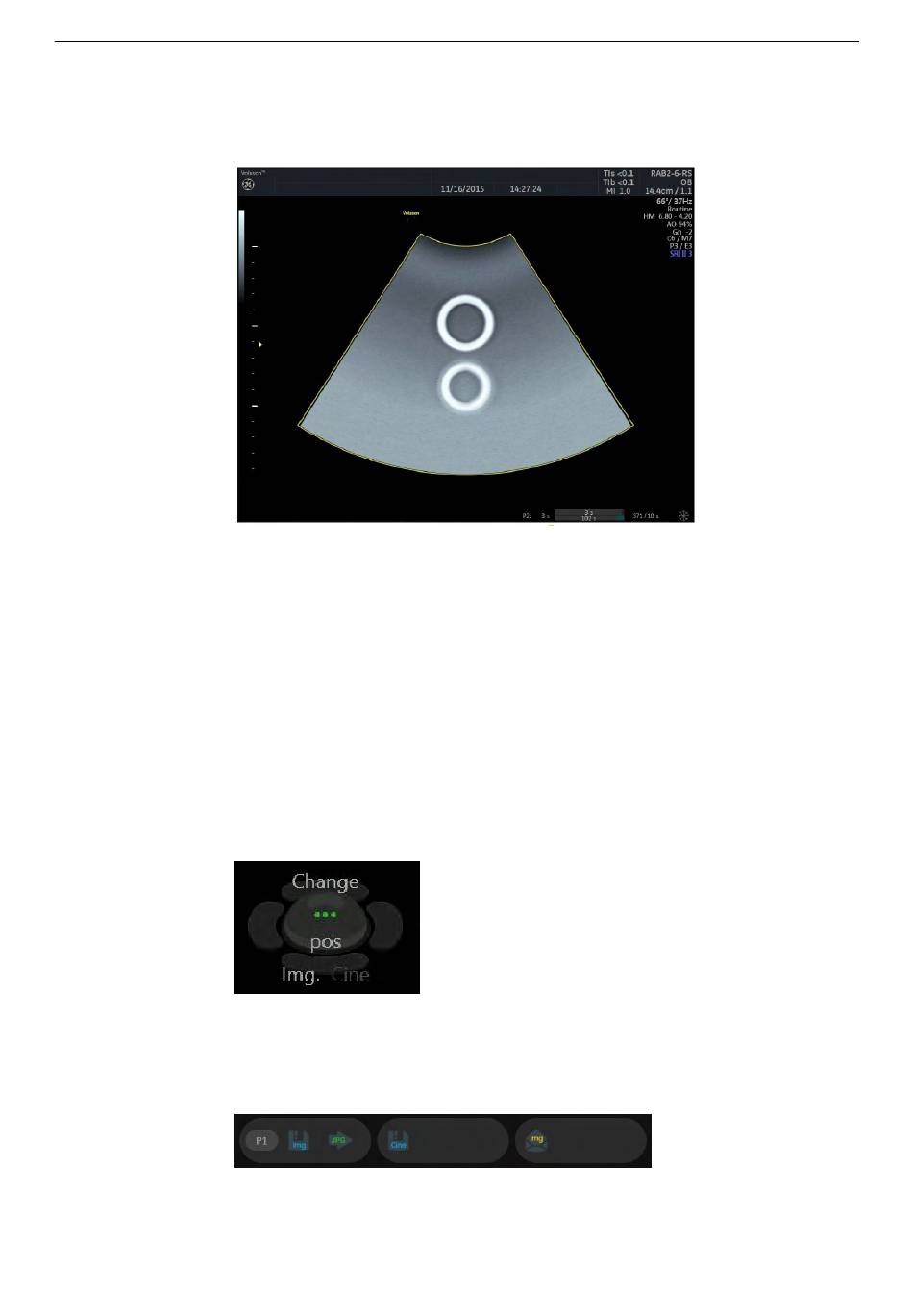

3.5.2 Monitor display

Display layout
Title bar
Clipboard and Exam History control area
Trackball area

P-Button assignment

Voluson™ SWIFT / Voluson SWIFT+ Instructions For Use
5831612-100 Revision 4
The title bar shows the corresponding logo of the device, patient and exam information, probe
and image information.
The Clipboard is dispalyed to the right of the U/S image. Its size varies according to the
display size.
The button
Exam History switches the History Clipboard on and off if one or more previous
exams are available.
Trackball functions change according to the active mode. Active button assignment is shown
in green.
Figure 3-4 Trackball area sample
A P-Button is a programmable button which can be configured for individual tasks. The
corresponding symbol is displayed next to the button.
Figure 3-5 P-Button assignment
Figure 3-3 Monitor display standard
System description
3-7
