Scan Assistant - GE Voluson Swift Instructions For Use Manual

Worklist Auto-Query
Auto Start Worklist
Title Bar Settings
Customize Exam columns in
Archive
2nd Patient ID
Delete PID Dropdown
Hide on Title Bar
OB Dating Method

11.2.1.7 Scan Assistant

Voluson™ SWIFT / Voluson SWIFT+ Instructions For Use
5831612-100 Revision 4
If On is selected, the worklist is automatically queried with the entered Patient ID or
Patient Name and today's date when the Worklist button is pressed in the Current
Patient Screen. If this box is not checked, the worklist is only queried after the
Search button is pressed in the Worklist dialog. If no connection to a Worklist server
is available, the former queried Worklist data (Show locally stored data) is shown.
If On is selected, the worklist dialog is shown automatically after the PID Button is
pushed.
Font Size (small, normal, large), Font Brightness (100%, 90%, 80%) and
Define
Display DOB / Age .
Define the information displayed in
Only (last Column) . If Automatically List Patients is checked, all available patients
are displayed when the Current Patient Search or the Archive dialog is opened.
Select On for Activate 2nd Patient ID if desired. If On is selected, the 2nd Patient ID
is displayed at Report, Structured Report, Worksheet, PID and on all exports and
prints.
Delete List deletes all entries in the selected dropdown lists. Available On/Off
selections:
•
Referring Physician
•
Performing Physician
•
Sonographer
•
Exam Type
•
Exam Comment
Select which information should be hidden in the title bar. Available On/Off
selections:
•
Patient Name
•
Patient ID
•
Sonographer
•
Clinic Name
•
Date/Time
Select the desired OB dating method (LMP, EDD, DOC, GA) from the dropdown
box. It is set to LMP by default.

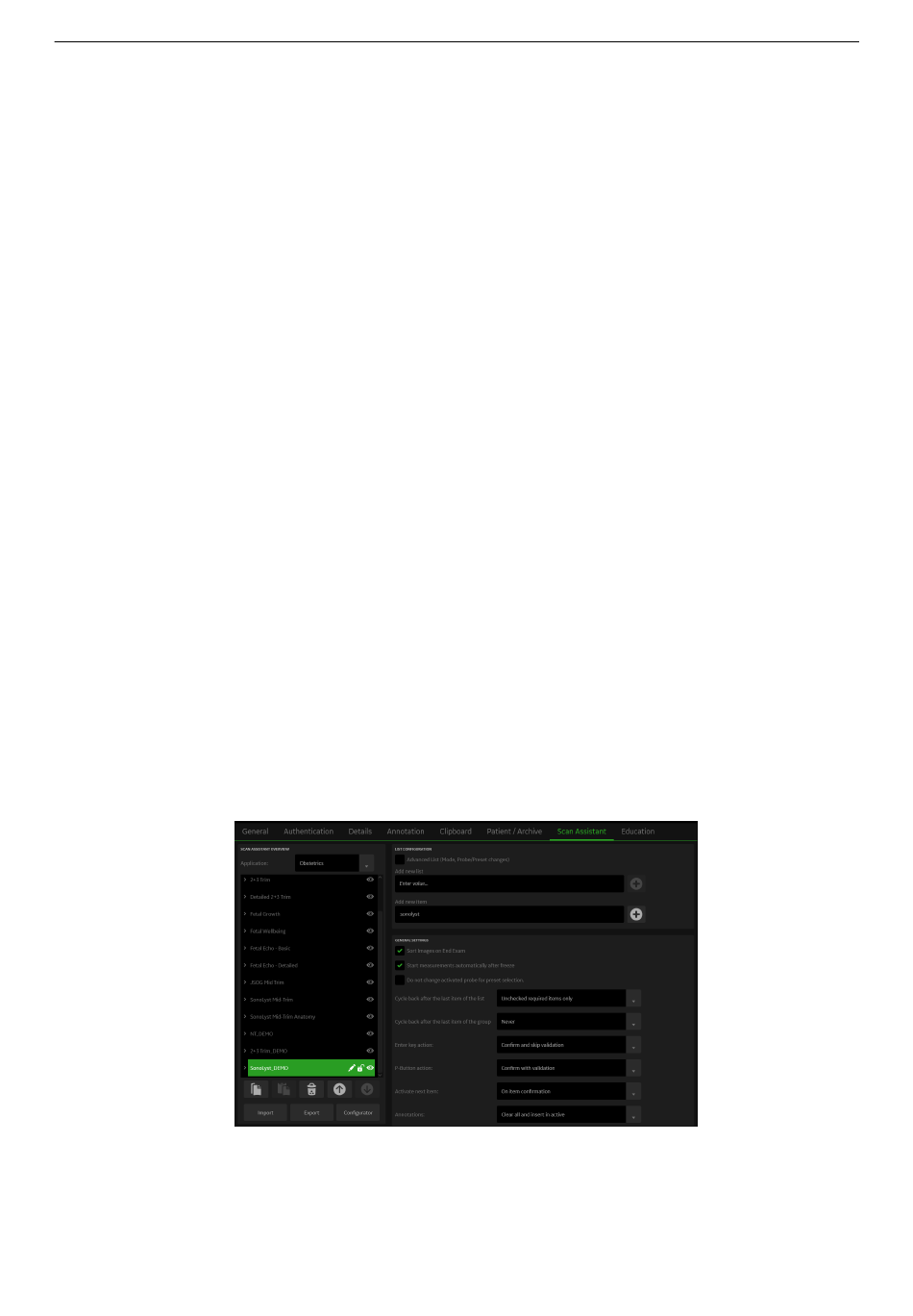

Figure 11-8 Scan Assistant
Patients & Exams (last two columns) and Exams
System Setup
11-13
