8.8.9 Edit Light

Voluson™ SWIFT / Voluson SWIFT+ Instructions For Use
5831612-100 Revision 4
Activate new settings or changes. The 3D/4D Menu is active and orientation
markers are displayed in 3D/4D mode.
1. Front: The body pattern can be rotated in steps of 45˚.
2. Back: The body pattern can be rotated in steps of 45˚.
3. Top view: The body pattern cannot be rotated.
4. Bottom view: The body pattern cannot be rotated.
The lower right quadrant displays the body pattern and the probe marker, independent of the
selected visualization mode. Position of body pattern (body view and body rotation) and probe
marker are stored in the 3D/4D user program.
The green point on the probe marker indicates the rotation of the probe (like Voluson™
SWIFT / Voluson SWIFT+-Logo on 2D image).
The Orientation marks appear on the Rotation Axis in the A-, B-, and C-Plane. They change
according to the rotation of the slices.
Following orientation markers are available:
A Anterior
P Posterior
L Left
R Right
Cr Cranial
Ca Caudal
There are also combinations thereof possible e.g.: AL, PRCa etc.
The orientation marks are visible if slices are present in T.U.I. mode (not in Render Full-
Screen). They are visible as long as they are not turned off, by pressing Off in the Probe
Orientation Menu.
With the help of the "Edit light menu" the light source position can be changed with the
trackball or with the preset buttons. The current position is shown by the Light Icon. The preset
position can be changed by the user.

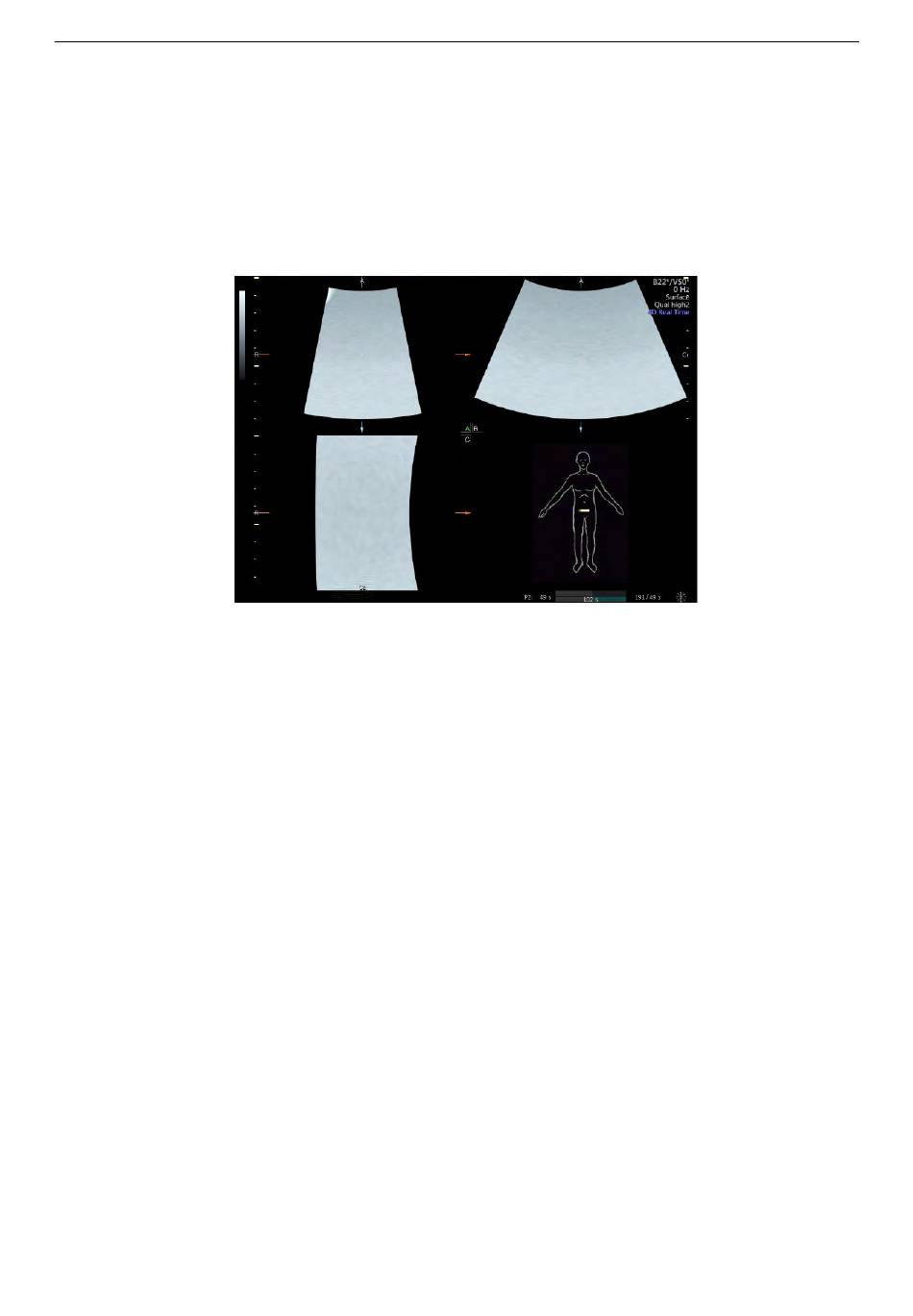

Figure 8-35 Probe Orientation screen display
3D and 4D Mode
8-51
