10.4.7 IDEA Worksheet

Voluson™ SWIFT / Voluson SWIFT+ Instructions For Use
5831612-100 Revision 4
An IOTA assessment touch panel based tool can be started from the Patient ID menu.
Worksheet and Assessment tool are synchronized and show always the same values. Swipe
down on the touch panel to open the Assessment tool menu.

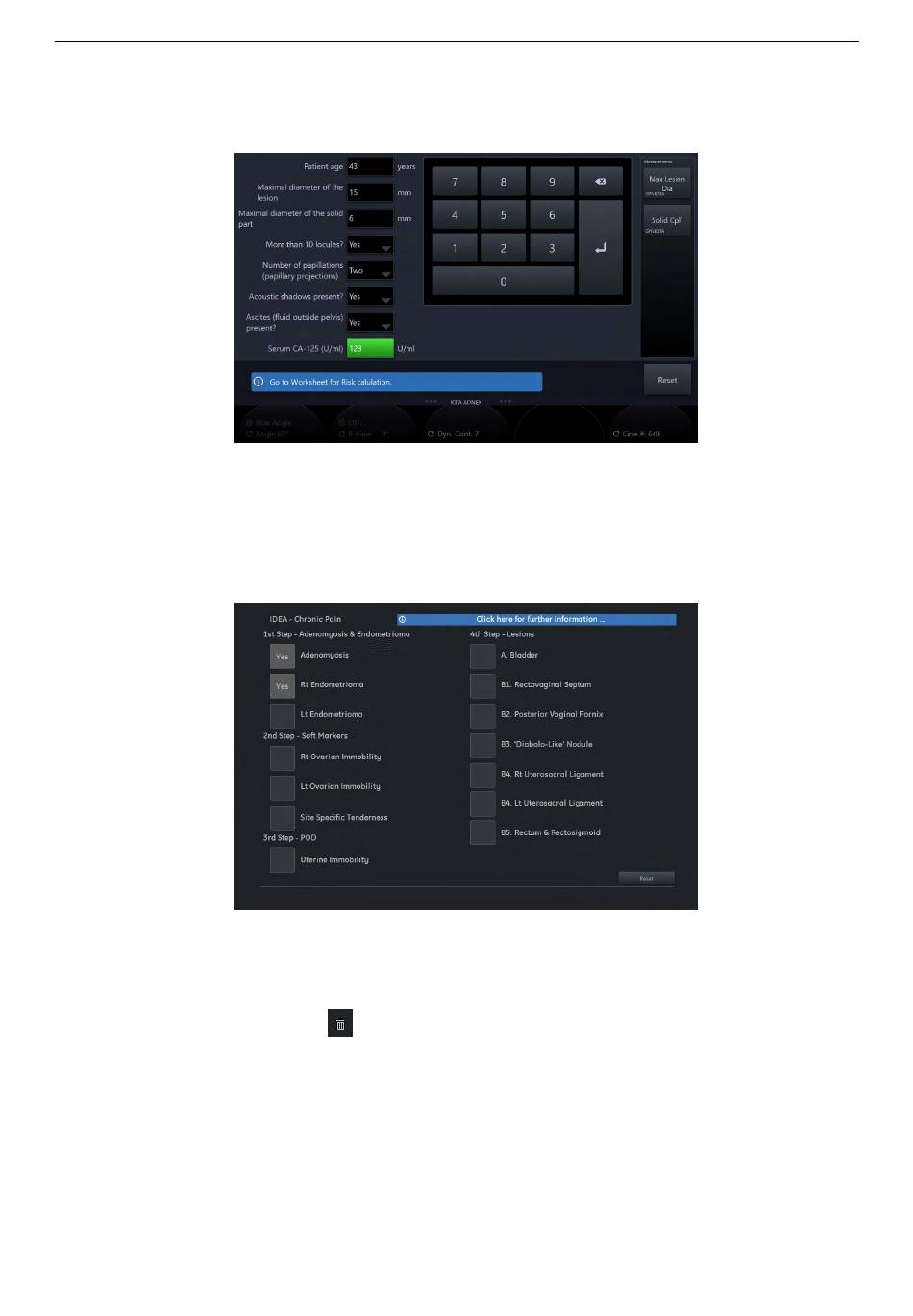

Figure 10-13 Assessment Tool (example)
IDEA Chronic Pain contains all IDEA findings available in the IDEA assessment tool. Each
The
Yes / No ) individually by pressing the corresponding button. The
item can be selected (
selection is the same as in the IDEA assessment tool when the
closed.
A click onto the blue badge opens the IDEA info dialog displaying additional information. The
dialog is closed by pressing
Reset resets all selections in the IDEA summary.
IDEA Chronic Pain displays the IDEA measurements. It is possible to
The second page of the
edit or delete ( ) the values displayed.
An IDEA assessment touch panel based tool can be started from the Patient ID menu.
Worksheet and Assessment tool are synchronized and show always the same values. Swipe
down on the touch panel to open the Assessment tool menu.
Close .
Measurements and Calculations
IDEA Chronic Pain is opened/
10-29
