12.3.1 Power Supply (rear side)

12.3.2 Connector Panels

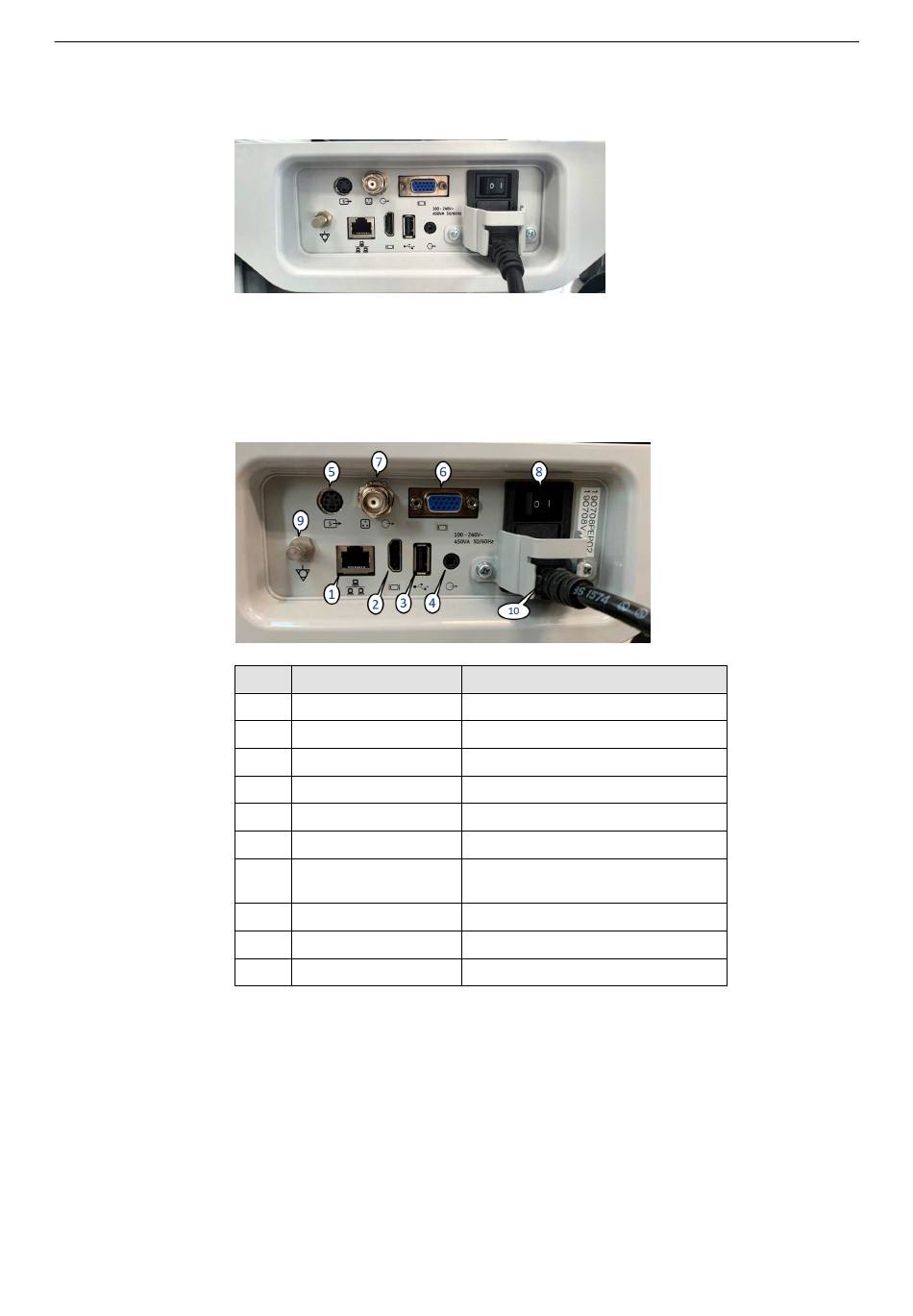

12.3.2.1 Rear Panel

12.4 DVR USB

Note
Note
Voluson™ SWIFT / Voluson SWIFT+ Instructions For Use
5831612-100 Revision 4
Range of main voltages: 100 - 240V ~
# Connector Name
1 LAN
2 HDMI Output
3 USB 2.0
4 Line out
5 S-Video
6 VGA
7 Composite
8 Circuit Breaker
9 Earth Ground
10 AC IN
The SW-DVR is an option.
SW-DVR has a limitation by using USB up to 4GB as a creating 1title. During USB recording, if
the video size reaches the 4GB, SW-DVR will stop and start a new title. This would be the
normal behavior. Please use the NFTS format of USB if the video size should be reachable up
to 4GB.
It is possible to record US data on USB or SW-DVR. The external USB-Port has to be
activated in the System Setup to play and record from / to a USB-device. Videos are created
Description
Ethernet Input
HDMI output connector for external Monitor
USB2.0 Output port
Audio output
S-Video output for external monitor (Option)
VGA output for external monitor (Option)
Composite output for external monitor
(Option)
Main system Circuit breaker
Protective earth ground connector
Main AC Power in
Peripheral Devices
12-5
