Intermittent Mode

4.1 Print Principle

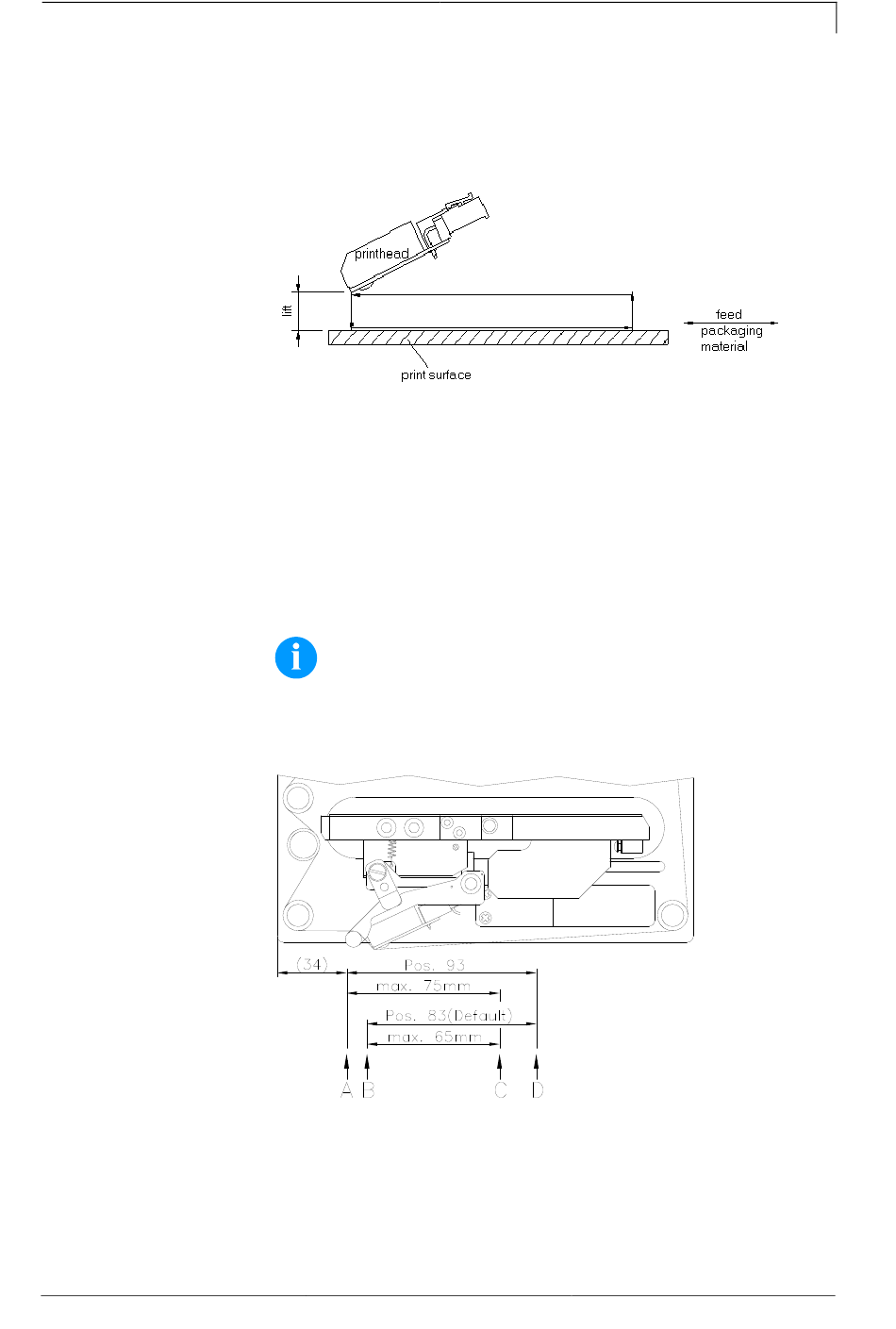

Figure 5
After starting a print order the printhead moves against the print
medium. Afterwards the printing carriage moves corresponding to the
set or transferred layout length linear over the material which is to be
printed. After the print procedure the printhead again lifts up and the
printing carriage moves again to the starting position.

4.2 Print Position

NOTICE!
The direct print module is delivered with a default print length of
65 mm. In order to use the maximum print length of 75 mm, the print
position value must be changed to 93 (see chapter 10.5 Machine
Parameters (Intermittent Mode), page 62).
Figure 6
A: Print pos. / Start pos. value = 93
B: Print pos. / Start pos. value = 83
Operating Manual
Intermittent Mode
C: Max. position print end
D: Stand-by position
